Einleitung
The hard drive is important for storing the computer's data and may need to be replaced or upgraded to increase the amount of storage space.
Werkzeuge
-
-
Turn the laptop upside down so that the underside is facing up and locate the two switches that are on each side of the battery.
-
Slide the switch on the top right corner to the right.
-
Slide and hold the switch on the top left corner to the left and carefully remove the battery.
-
-
-

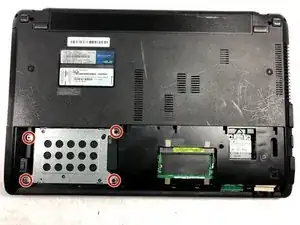

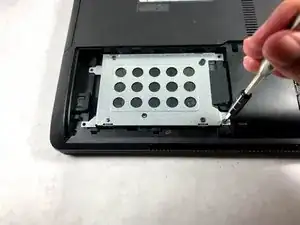

Use a Phillips #000 screwdriver to remove the two 9mm screws from the HDD/RAM cover panel.
-
-
-

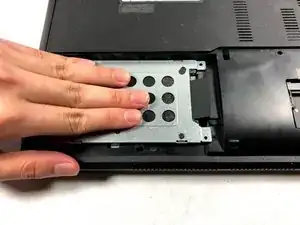

Slide the back panel off by placing a hand on each corner and pulling the panel towards you.
-
-
-

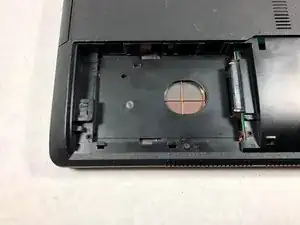

Slide the hard drive to the left to disconnect it.
-
Then pull on the black tab to lift the hard drive out of the laptop.
-
To reassemble your device, follow these instructions in reverse order.
