Einleitung

This guide will show you how to replace the hard drive on your Asus Zen AiO Pro Z240IC to increase total memory storage and improve boot times.

  1. pUVTE6xVfTVXNe1S
    pUVTE6xVfTVXNe1S
    2fjylRlYbBlmDBUn
    • Use the plastic opening tool to pry off the black plastic strip at the bottom of the screen by wiggling the tool between the strip and the screen.

    • The strip is held in place with adhesive. You may hear a crackling sound as the strip is peeled off.

    • Run the opening tool slowly along the base of the screen, peeling the black strip back, until the opposite end of the screen is reached.

    On my machine, it was positively impossible to use a plastic opening tool, or even a razor to get under the plastic strip - even after heating up with a heat gun. However, I found another method that will also help prevent damage to the plastic strip: in pictures for Steps 2 and 3, you can see that under the plastic strip, next to some of the screws there are square holes in the plastic body. I was able to shape a sturdy paper clip into an “L” shape, and feed it through the right-most exhaust vent at the bottom to insert into this square hole from below. From there, you can use the paper clip to try to push the plastic strip up from below. It still required some heat from the heat gun, but eventually I was able to push the plastic strip up enough to be able to slip a razor blade under it.

    Alexander V Trofimuk -

    I too was unable to do this with the plastic tools, but used a small flat screwdriver to ply up the corned on the bottom curved corner and plastic tools form there - just left a small blemish on the plastic besel, but I can live with that.

    Andy Monaghan -

  2. aMPsRvY2HKNETwbA
    aMPsRvY2HKNETwbA
    TF33WDJBWQQEELwk
    • Use a Phillips #1 screwdriver to remove the seven (7) 4.8 mm screws from the base of the screen.

  3. xa4SeJjuwMkMBcvE
    xa4SeJjuwMkMBcvE
    EDmVJAwM5T2RXLrE
    Lgpud6tLrTRvABqC
    • Place the computer on its back, facing up.

    • Wedge the plastic opening tool in between the screen and the bezel of the aluminum computer casing.

    • Move the tool along the entire edge of the screen with an up-and-down prying motion to loosen the screen from the casing. Do not lift the entire screen away from the computer yet.

    • The screen is held in place by plastic tabs. These will create a popping sound when loosened.

    • The screen assembly will flex as it is pried off. Do not bend the screen too far or the glass screen could shatter.

    It’s a lot easier to use two suction cups on the bottom corners, and then slide some cards in between the screen and the case.

    Alec -

  4. tICyUXbxyVOAhas6
    • Lift the screen from the bottom edge by about 6 inches. Prop it open with one hand.

    • Look inside the computer and locate five (5) cables that connect the embedded components of the screen (camera, microphone, etc.) to the rest of the computer.

    I have this model, but I only found 4 cables, 2 were ribbon cables. Just look inside and unplug anything that is connecting the display to the motherboard.

    Alec -

    Same here my model just had 4 cables.

    Andy Monaghan -

  5. JUY4VvGBnIVNwW3d
    JUY4VvGBnIVNwW3d
    aRTHudZXfUqa3V5o
    lP1CPJJBaGvlOPNE
    • Remove the two (2) cables that are connected to the computer by white, rectangular terminal blocks by pulling straight out on the plug.

    • The cables and wires in these steps are delicate; do not tug on the individual wires that make up each cable.

  6. DFGssbhdtTbRYiVU
    DFGssbhdtTbRYiVU
    eqEi2wuphkOGYOvK
    3DbwaluRAuXgdnYS
    • Use a finger to lift the plastic locking flaps that hold the remaining three (3) ribbon cables in place.

    • Remove the cables from their terminals by slipping them away from their connectors.

    • The black line on the ribbon cables mark the connecting region. When reinstalling, insert the cable up to this line so the locking flap covers it.

    When re-connecting take great care to ensure the ribbon cables are square and flat - I had to take mine apart again to re-seat one as the screen was blank - worked fine once re-seated properly.

    Andy Monaghan -

  7. eiQP3s1ck3aOqBWA
    eiQP3s1ck3aOqBWA
    gHE2pdCAJuUKcIeU
    mjPZcF4HxKitH6HQ

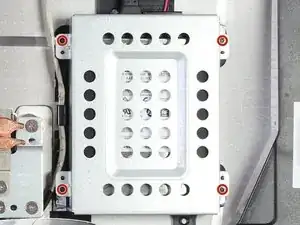

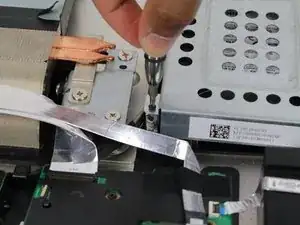

    • Use a Phillips #0 to remove the four (4) 3.2 mm screws on the metal casing enclosing the hard drive.

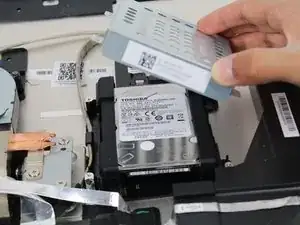

    • Remove the metal casing by lifting it up.

  8. XbbxpuKEsAsblsZk
    XbbxpuKEsAsblsZk
    o2DIvKSQCGvfyvq4
    QUs5WLQKrF1W1sir

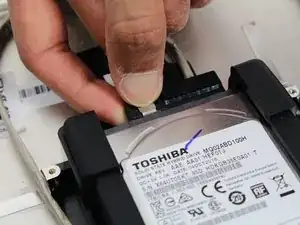

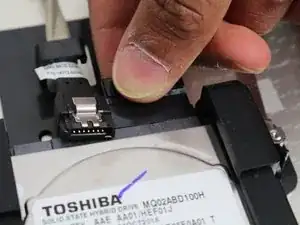

    • Remove the SATA cable by pushing down on the metal tab and pulling the cable away from the drive.

    • Remove the power cable by pinching the black connector and pulling the cable out.

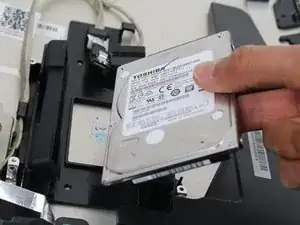

    • Take out the drive by lifting it out of its rubber seat.

Abschluss

To reassemble your device, follow these instructions in reverse order.
