Einleitung
If your speakers are not working or they emit a crackling sounds when playing audio, this guide will show you how to replace them. The replacement is very straightforward after following the guide steps for battery replacement.
The battery must be raised on the bottom edge to access all of the speaker components. The speakers are glued to the chassis, but the opening tool makes removal easy.
Werkzeuge
Ersatzteile
-
-

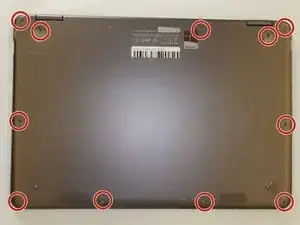

Turn laptop over.
-
Use the metal spudger to pry rubber feet off in the four corners of laptop.
-
-
-

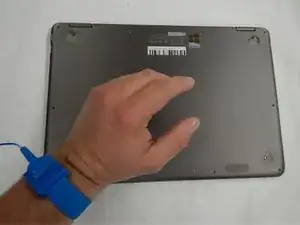

Attach an ESD wristband to your wrist and clip the grounding clamp to a grounded metal object.
-
-
-

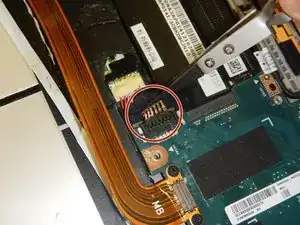

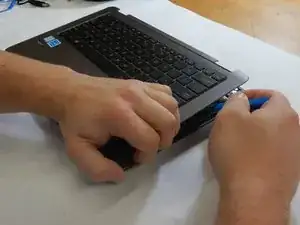

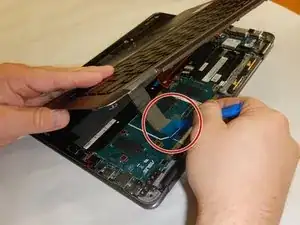

Use a plastic opening tool to disconnect the ZIF keyboard ribbon cable from the motherboard.
-
-
-

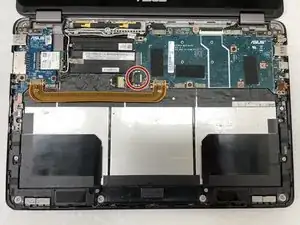

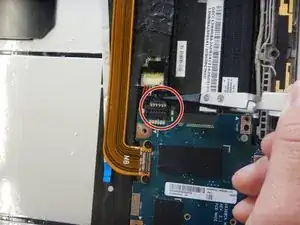

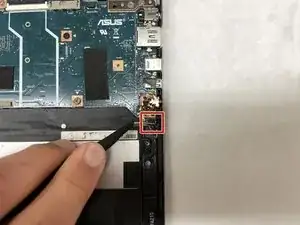

Using tweezers, carefully remove the connector connecting the speakers to the motherboard.
-
-
-

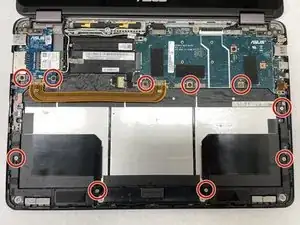

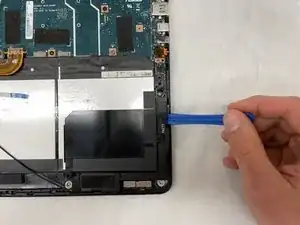

Use your fingers or another object to slightly raise the bottom edge of the battery. The battery does not need to be fully removed to replace the speakers.
-

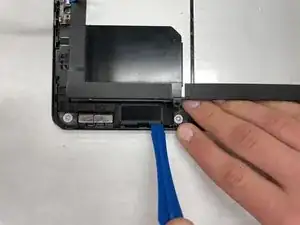

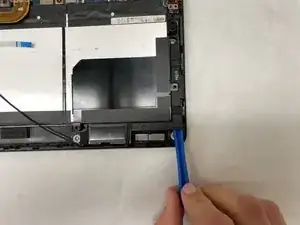

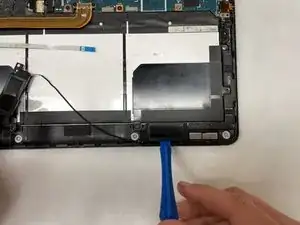

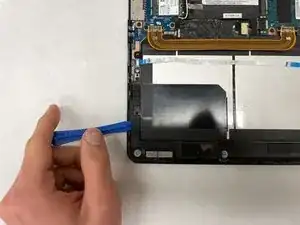

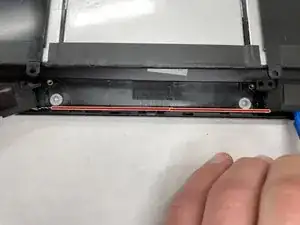

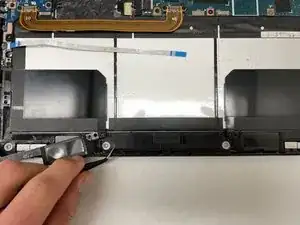

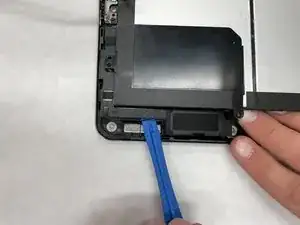

Use a nylon spudger or an opening tool to carefully pry the speaker from the chassis.
-
To reassemble your device, follow these instructions in reverse order.
