Asus ZenBook Flip UX360C Touch Pad Replacement

Geschrieben von: Anastasia Ahearn
  • Kommentare: 5
Asus ZenBook Flip UX360C Touch Pad Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

7 Minuten

Einleitung

Before you replace your touch pad, make sure to plug an external mouse in. If you have never opened your laptop up, the back cover may not easily open.

  1. xsmaAFTgQpemH3np

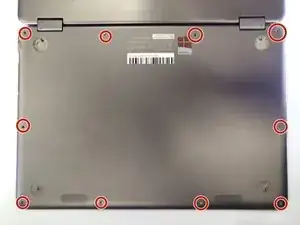

    • Unscrew the 10 5 mm #1 Phillips head screws in the corners of your laptop using the Phillips #1 screwdriver.

  2. NnpVqTWHnrCuVEDh
    NnpVqTWHnrCuVEDh
    Ke1ZXlmQ2rxQKjVX
    bUKnEErYtt1fhvuu

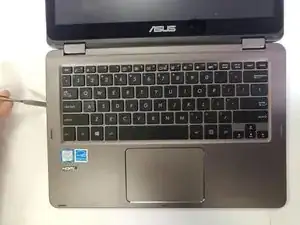

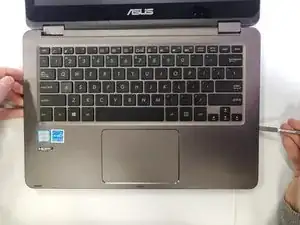

    • Pry back cover with metal spudger.

  3. TastdMDC3LKvcehV
    TastdMDC3LKvcehV
    PCGgALZpwYlaSgVn
    e1pvxiEMYgjhnhfW

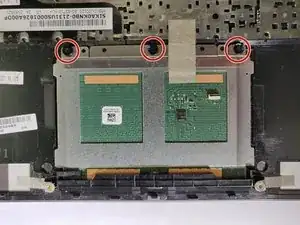

    • Unscrew the three 5 mm #1 Phillips screws on the touch pad with the Phillips #1 screwdriver.

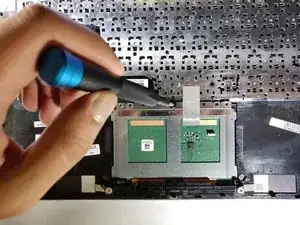

    • Lift touch pad with metal spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Anastasia Ahearn

Mitglied seit: 26/02/19

269 Reputation

5 Kommentare

My zenbook wifi stopped working. The device manager did not recognize the wifi card. I opened the case and removed the wifi card and reinserted it. Wifi now works.

During this process the touchpad cable came loose. I opened the case again but I cant get the cable to stay in place. The tiny black clip at the cable connection does not secure the cable/ribbon. Any ideas?

Charlie Gates -

Hello, I need to replace my trackpad on similar model UX362FA. I can’t find the spare part for it, any idea of a place where I could buy i ? Thanks.

Aris Adamantiadis -

BTW my problem with touchpad was the plastic protection layer that’s supposed to be removed. It doesn’t look like it can be removed but it is.

Aris Adamantiadis -

How often is it that a non functioning track pad is fixed with a hardware replacement such as this? What other causes might there be?

Alberto Einsteino -

I dont know how I solved problem with the touchpad that I had few months after I bought this ZenBook in 2019, but after that it works fine sometimes. But earnestly, I have to say that - I didn't use it so much. I used this lap-top mostly for watching films and tv series (because I can manage bigger subtitles with VLC player), and recently, a few days ago, it stopped working again. I brought it to official service two days ago and they asked me for 100 dollars for replacing the touchpad. I am very, very disappointed with the quality of this Asus product. I do not recommend it to anyone and I am not willing to buy an Asus laptop any more. My friend, when I was looking to buy a new laptop, convinced me to buy a MacBook and I feel huge, huge sorrow for my bad decision to buy an Asus ZenBook. Shame on Asus!!!!!!

ZeljkoO -
