Asus ZenBook Flip UX360C Wi-Fi Wireless Card Replacement

Geschrieben von: Daniel Updyke
  • Kommentare: 1
Asus ZenBook Flip UX360C Wi-Fi Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

The wi-fi wireless card allows your device to connect to the internet via a wireless connection, and is a vital part of your device.

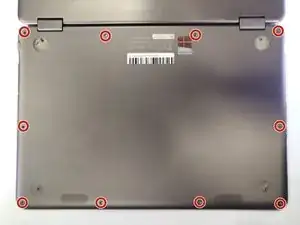

  1. TdRwxUL2qmAgarod

    • Remove all ten 5 mm Phillips #1 screws on the back cover.

    For me, these screws were the "T5" star bit.

    Eric Halstvedt -

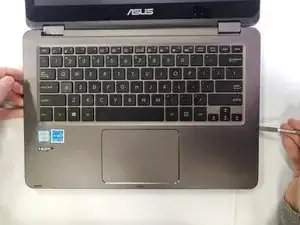

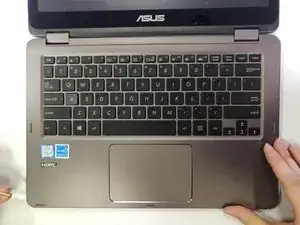

  2. R1DiOYDjpHYMrOgO
    R1DiOYDjpHYMrOgO
    WLOhnOr2X1FljVMt
    ERWnXXC1DQbGB3OK

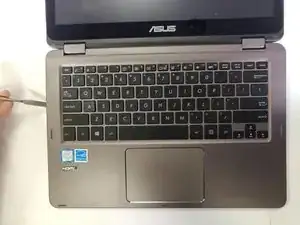

    • Use a metal spudger to gently separate the keyboard from the computer case.

    • Do not completely remove the keyboard as there are two ribbon cables that connect the keyboard to the motherboard.

    • Lift the keyboard slightly, and use a plastic spudger to release the two ZIF connections to free each ribbon cable.

    • Remove the keyboard.

  3. boovoQ34D5MXbD3u

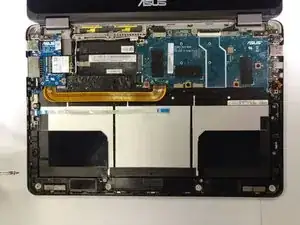

    • Use the Phillips #1 screwdriver to remove all 5 mm screws.

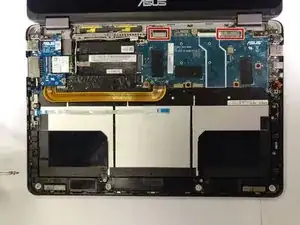

  4. rM4pu2jWmScgDYCD

    • Use a plastic opening tool or nylon spudger to lift the monitor connections off of the main board.

  5. iQAtQBGOKSs11lyC
    iQAtQBGOKSs11lyC
    qiDHoSgfxr6yREVG

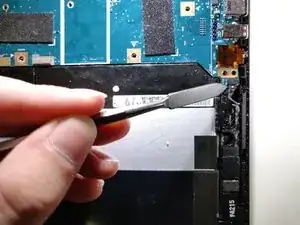

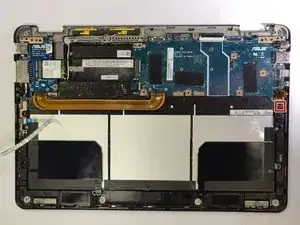

    • Clip off the battery from the main board.

    • Use of a metal spudger can cause damage to the device or harm to the user, especially near the battery! Use an ESD safe tool for this step instead.

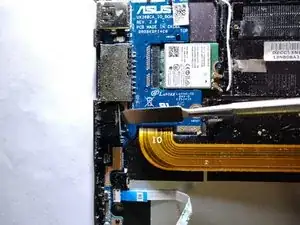

  6. VtZLCGkXwCoKhuar
    VtZLCGkXwCoKhuar
    F3dS6YWTdDMAGO6c

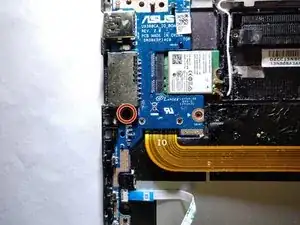

    • Remove the black foam above the screw on the I/O board.

    • Remove the 5 mm #1 Phillips head screw.

    • Use of a metal spudger can cause damage to the device or harm to the user, especially near the battery! Use an ESD safe tool for this step instead.

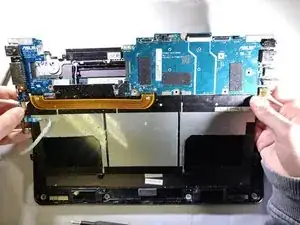

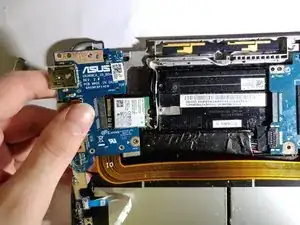

  7. buX3UaldOfPZjj3c
    buX3UaldOfPZjj3c
    wQ6p3x2uCI2YsJCR

    • Pull the I/O board away from the chip to detach it.

    • Remove the I/O board and main board.

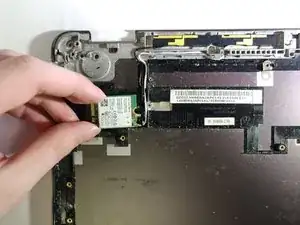

  8. 1wZ51u2HBKHO2wGr
    1wZ51u2HBKHO2wGr
    ePXZUNPmCCXxCio2
    a5RZXRDXRjGwcAYB

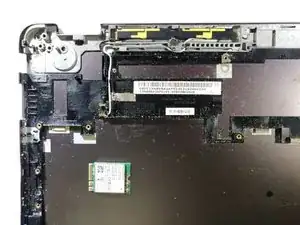

    • Use the metal spudger to remove the chip connections.

    • Gently pull the chip up and to the left to remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
