Asus ZenBook UX330U Wi-Fi Adapter Replacement

Geschrieben von: Hasan Akpunar
  • Kommentare: 7
Asus ZenBook UX330U Wi-Fi Adapter Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

If your Asus ZenBook UX330U or UX330UA cannot connect to Wi-Fi, then you may need to replace your Wi-Fi adapter. Before using this guide, look at the troubleshooting page located here for possible fixes that do not require any disassembly. This guide can be used to remove the Wi-Fi adapter for the ASUS ZenBook UX330U or UX330UA.

Before beginning any device disassembly, please power off and unplug your device.

  1. IPPQYDDQhsJIZ4rS
    IPPQYDDQhsJIZ4rS
    aZfwuODvhBv4DZeM
    gMdkLGYBqfBAIVQL

    • Before starting any device dissasembly, please put on the anti-static bracelet provided by iFixit. Make sure the metal part of the bracelet is touching your skin.

    • Remove the alligator clip at the end of the bracelet by simply pulling it off, to reveal the bullet connector.

    • Insert the bullet connector into the ground port of an outlet.

    • Make sure to keep the bracelet on at all times while disassembling your device, to prevent ESD to the components.

  2. lyQBN3Pguui1GmOR
    lyQBN3Pguui1GmOR
    OH2PVjiCJMM2nrae

    • Power off the device and make sure it is physically unplugged before starting any disassembly procedures.

    • Remove the eight 3.1mm screws using the T5 Torx screwdriver bit.

    • Remove the longer 5.1mm screw using the T5 Torx screwdriver bit.

    Is there an option without the blurry hand here?

    Alex Watkins -

  3. WRnBCX6bvNIeSMLb
    WRnBCX6bvNIeSMLb
    5XVNkHtXDniJfaDW
    mwvoDtQQaqXPMASJ

    • Use a Jimmy or a spudger to pry off the two rubber feet that are closest to the hinge.

    • Unscrew the two 5.6mm screws that were underneath the rubber feet using the Philips #0 screwdriver bit.

    • The rubber feet may be difficult to remove. Do not hesitate to use more force to remove the feet, if necessary.

  4. CYr1EOW4IXVbXAWx
    CYr1EOW4IXVbXAWx
    VgofR6jQau6Zfseb

    • Press the suction handle on the center of the back cover, and gently lift up.

    • You may need to wiggle the back cover as you lift it in order to take it off easily.

    Consider changing to a caution.

    Alex Watkins -

  5. iha1pLvPOuQqbgiU
    iha1pLvPOuQqbgiU
    JqhrbkCPLqKHjtnB

    • Unscrew the six 3.7mm screws using the Philips #0 screwdriver bit.

    • Be extra cautious when handling the battery. If the battery looks swollen or damaged, consult this guide.

    Why do you need to remove the battery? You can see the SSD just above the left of the battery.

    You can skip pass step 5 and go to 10, or I am missing something?

    Camilo Fernández Campbell -

  6. MXMBp2uEnhdkMG6o
    MXMBp2uEnhdkMG6o
    OUOn3BRb4cMmccto
    YwXr6quVmPKnY5PK

    • Remove the four 2.8mm screws from the motherboard ribbon connector using the Philips #0 screwdriver bit.

    • You may have to pull back the black tape located on the bottom right motherboard connector screw. This tape is not necessary for the functionality of the device and can be discarded if necessary.

  7. kqiMYLmetIXCWwRj
    kqiMYLmetIXCWwRj
    4ucP1FgLpTTSvACg
    KHmqTrWvnQVZEnLx

    • Remove the motherboard ribbon connector by pulling up on the metal ends with the blunt nose tweezers.

    • You may have to hold down the black tape in order to be able to lift up the connector.

    • To reconnect the motherboard ribbon, simply press the ends of the ribbon on top of the connector. This should require minimal force.

    Great use of special bullets here!

    Alex Watkins -

  8. ZEERATpYIllvjB4B
    ZEERATpYIllvjB4B
    t6IFPdfjhYfKbGgr
    xvJMfrta2C4kIEB5

    • Pull back the silver battery connector lock with the blunt nose tweezers. This should slide back and should require minimal force.

    • Lift the battery connector vertically using the blunt nose tweezers to remove it from the socket.

    I think you mis-identified the tool here—this looks like tweezers.

    Alex Watkins -

  9. GOdiTINZimihxQhp
    GOdiTINZimihxQhp
    3lwv53U3sGRrnmRI

    • Gently lift the battery out of the chassis of the device.

    • Make sure that you do not bend the battery.

  10. 3Q4AiqVFB3UwJFRv
    3Q4AiqVFB3UwJFRv
    dmRXhWVPikNNIHyA
    1drt4Xi1HZhBZssN

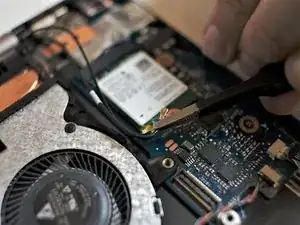

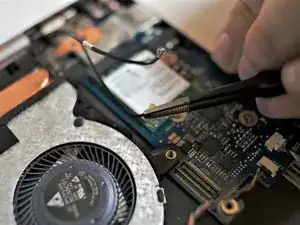

    • Disconnect the two UFL female connector cables by gently prying up with the blunt nose tweezers.

    • Remember which connector was connected to which port. The connector cable with the white strip connects to the port with the white arrow labeled "2".

    Consider adding the full shot here with markup

    Alex Watkins -

  11. oLbZmdaWMThJcprx
    oLbZmdaWMThJcprx
    QqGfDo6GDssndh3L

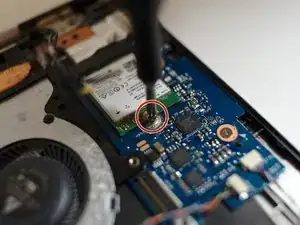

    • Remove the single 2.7 mm screw holding the Wi-Fi adapter using the Philips #0 screwdriver bit.

  12. LAPgoolcOOBBAQkL
    LAPgoolcOOBBAQkL
    KuPPgb3nMHn5NABI

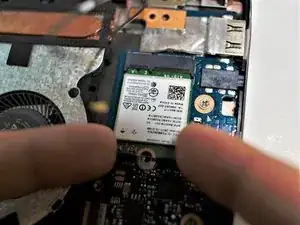

    • Gently grip the Wi-Fi adapter by the sides and pull it out with gentle pressure. You may need to slightly wiggle the adapter to get it to slide out easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
