To begin with, replacing the antenna is not that hard. All you need is a JIS size 00 head screwdriver, and a prying tool. CAUTION: The screws from the back of the phone are small, so we recommend using a mat or paper to help keep the screws together and from getting lost.
-
-

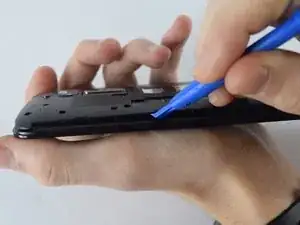

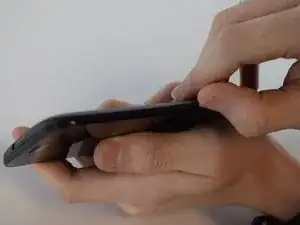

Use your fingernail to gently pry off the phone's back cover at the indicated location. While your fingernail is under the back cover slide your finger around the edges of the phone until the cover pops off.
-
-
-

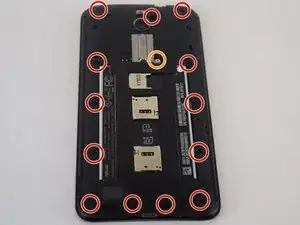

Remove the thirteen black screws and the single silver screw from the back of the phone with a JIS size 00 screwdriver.
-
The black screws are 2.8 mm in length.
-
The silver screw is 5.5 mm in length.
-
-
-

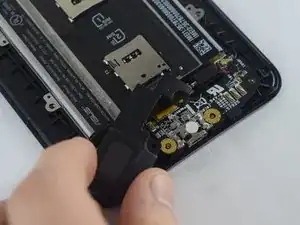

Take the speaker out of the back of the phone. It should come out easily as soon as the inner back is removed because nothing is holding it down in place anymore.
-
-
-

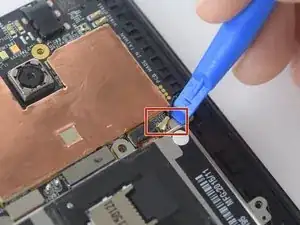

Use a plastic opening tool to gently pry up both ends of the antenna.
-
Carefully remove the antenna wire from the plastic keepers along the side. Note their position for reassembly.
-
Reassemble your device by following the instructions in reverse order.
