Asus ZenFone 2 Batterie austauschen

Geschrieben von: Eduardo Nodarse
  • Kommentare: 40
Asus ZenFone 2 Batterie austauschen

Schwierigkeitsgrad

Schwierig

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

Der Batterieaustausch ist bei dem Modell sehr zeitaufwendig und nicht leicht. Bevor du an die Batterie kommst, musst du ebenfalls die Antenne entfernen.

  1. C3L6upWbjkClFYPJ
    C3L6upWbjkClFYPJ
    nASL2SQDOAxBTTps

    • Hebe mit deinem Fingernagel die Rückseite ab und gleite mit dem Finger die Außenseiten ab, bis der Rückdeckel sich abnehmen lässt.

  2. de4lQIDJqyZvM6FT

    • Entferne die 13 schwarzen Schrauben und die einzelne silberne Schraube von der Rückseite des Telefons mit einem JIS00 Schraubendreher.

    • Die schwarzen Schrauben haben eine Länge von 2,8 mm.

    • Die silberne Schraube ist 5,5 mm lang.

    • Die schwarze Schraube neben der Kamera und dem Blitz wird von einem Aufkleber abgedeckt. Diese Schraube kann einfach entfernt werden, als ob es keinen Aufkleber oben drauf gäbe. Die Spitze des Schraubendrehers sollte reichen, durch den Aufkleber durchzustechen.

    The screw next to the camera with the sticker on (top middle on screen) was T4 not J00

    Matthew Hew -

  3. HuZYmC3Na4Ga3TLi
    HuZYmC3Na4Ga3TLi
    U2YBWIndlHUFpB42

    • Verwende ein Plastic Opening Tool, um die innere Abdeckung zu entfernen.

    • Die Teile der inneren Abdeckung, die durch zwei Streifen von doppelseitigem Klebeband gehalten werden, können leicht gelöst werden, indem das Plastic Opening Tool darunter eingeführt und vorsichtig angehoben wird.

  4. Fk4MxSSmAoFOaZPR

    • Merke dir wie der Lautsprecher eingesetzt gewesen ist. Der Lautsprecher liegt aktuell nur lose im Gehäuse, da er sonst von den Schrauben fixiert wird, die vorher entfernt wurden!

    • Der Lautsprecher ist nicht mehr befestigt und sollte sich einfach aus dem Gehäuse entnehmen lassen.

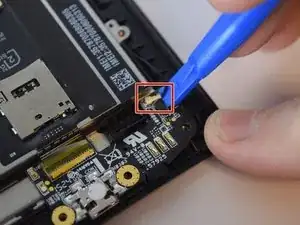

  5. jffNhTcfLslfRbaE

    • Nutze einen Plastikhebel, um die Antenne an der Unterseite vorsichtig rauszunehmen.

    • Die Antenne kann sehr leicht verbogen werden! Achte darauf, dass du wie im Foto gezeigt unter dem Kabel anhebst.

    This antenna does not need to detach. I have broken the whole housing, the soldering part too.

    This antenna not link to battery, not requires to detach.

    syheng81 -

    bagian rumit & xtra hati2 gan

    antonius doddy -

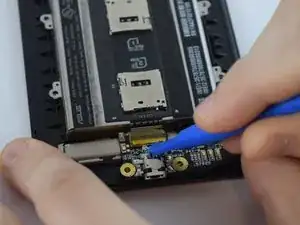

  6. UmuChpZDPeRlnmpC
    UmuChpZDPeRlnmpC
    Zs1kKnkHyHMJwN2w

    • Löse das Flachbandkabel, indem du mit dem Plastic Opening Tool den gelben Streifen nach oben drückst.

    You are removing the yellow tape to release the ribbon cable which slides out of the connector quite easily.

    Kevin Willows -

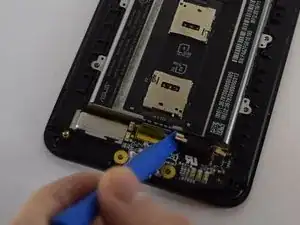

  7. IqgbvVFrQnfKJVih

    • Entferne den Vibrationsmotor mit dem Plastic Opening Tool aus dem Gehäuse.

    Unfortunately the 2 wires coming from the vibration button on my Zenphone are soldered on.

    LisaKK -

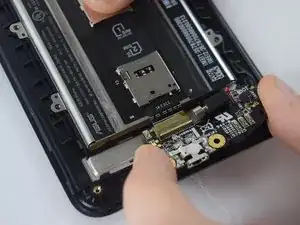

  8. gnHojUhyFjGr6QbN

    • Hebe mit den Händen das Board aus dem Gehäuse.

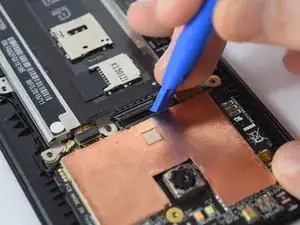

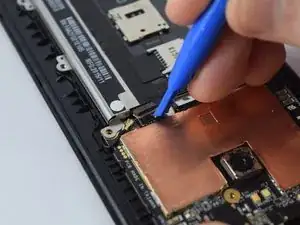

  9. FGdknZoCecvT3W3t
    FGdknZoCecvT3W3t
    A3RHFBtDXLSo2AOf

    • Heble mit dem Plastic Opening Tool die Flachbandkabel wie in den Abbildungen gezeigt vorsichtig heraus (mit einer leichten Drehbewegung).

    I had a strip of very hard/sticky glue on the left side of the phone/antenna side that made this part very difficult and made the metal housing bend. My phone is from Hong Kong so this could the reson.

    Martin Lindelöw -

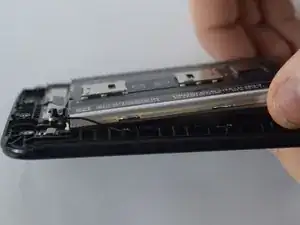

  10. Cpe1p1RSTJ3fgEG3

    • Hebe vorsichtig das Batteriepack mit den Händen aus dem Gerät.

    • Es gibt zerbrechliche Laschen auf der linken und rechten Seite der Batterie. Achte darauf, diese nicht zu verbiegen oder abzubrechen.

    There is glue under the battery. Requires adhesive remover

    The Lennipede -

    You can remove the glue by pulling it from under one of the ribbon cables at the top of the battery. There is a youtube video showing it if you search zenfone 2 battery removal

    Dave Hall -

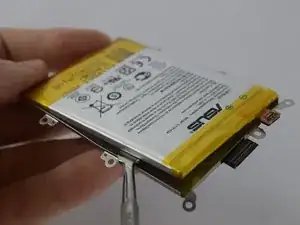

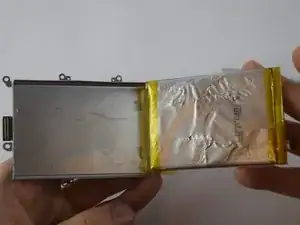

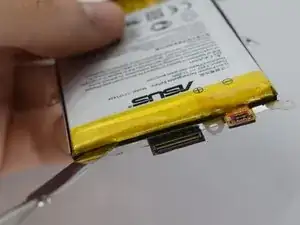

  11. VfWMdYGAFRKJ5Rx2
    VfWMdYGAFRKJ5Rx2
    pt3BtRX5F1PbuQ5k
    RB2O46duVGdyHNIT

    • Setze den Metallhebel vorsichtig zwischen die Batterie und das Metallgehäuse und trenne die beiden Bauteile voneinander (sie sind leicht verklebt).

    • Sei vorsichtig, beim Trennen der beiden Hälften, um die Außenkanten des Metallgehäuses nicht zu verbiegen, da es dadurch viel schwieriger wird, es wieder in das Telefon einzusetzen (am besten flach auf den Tisch legen).

    Asus mobile phones aren't too good, one of my cousin have this Asus Zenfone 2. And the battery of this device has been stopped to working good. Even I've Asus Zenfone max pro m1, and it's headphone jack isn't working anymore

    Jeet singh -

Abschluss

Setze eine neue Batterie ein und arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
