Asus ZenFone 5 Charging Port Replacement

Geschrieben von: Nathan Foster

Kommentare: 8

Asus ZenFone 5 Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten

Einleitung

The charging port is located on the bottom of the phone and is required for the phone to recharge the battery. It will be obvious that the charging port needs to be replaced, as the phone will more than likely either not charge at all, or take an unusually long amount of time.

This guide shows the use of metal tools in close vicinity to the battery. Choose to use plastic, ESD-safe tools for the procedure in order to greatly reduce the risk of a battery puncture.

Werkzeuge

Schritt 1

Heat up the iOpener in the microwave for 30 seconds.
Caution: when the iOpener is heated up, hold it by the sides to prevent bodily harm.

Can you condense this step a bit? (e.g., Heat the iOpener in the microwave”)

Alex Watkins - 01/08/19

Schritt 2

Place the iOpener on the side of the phone until the iOpener gets cool (approximately 10-15 minutes).
Reheat the iOpener and reapply it to the other side of the phone.

Schritt 3

Gently slide the jimmy along the edges of the phone to break the adhesive.
Use opening picks and the opening tool to pry the back cover off.
The use of metal tools as shown in the photos is potentially dangerous as the battery is exposed along the edges of the case and risk of puncture is high. Choose an ESD safe tool instead.
There are 6 different tabs on each side of the phone that might take force to get apart.
Repeat the heating and prying process until the back cover can be fully removed.

The tools don’t need to be capitalized, aside from the iOpener. Make sure to check throughout for this issue.

Alex Watkins - 01/08/19

Schritt 4

Use the #00 phillips head to take out the six phillips #00 3.175mm screws on the top cover plate.
Use the spudger to release the clasps along the edge of the top plate.

Per feedback, consider swapping for the nylon spudger, rather than the metal one.

Alex Watkins - 01/08/19

Schritt 5

Disconnect the press fit connector located near the upper right corner of the battery to disengage the battery from the motherboard.

My motherbord is shot and don’t open my phone halp me

Amit Saha - 11/02/20

Schritt 6

Use the same screwdriver to remove the five phillips #00 3.96mm screws along the bottom plate.
Use the spudger to pry the bottom plate off.

Schritt 7

Pull on the two black tabs on the bottom of the battery until the battery is released.
Gently pull the battery out of its socket.

Schritt 8

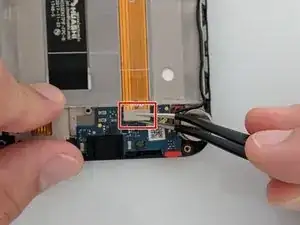

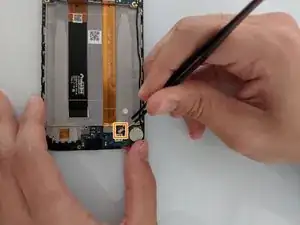

On the bottom of the phone, lift up the silver press fit connector that is below the battery.
Gently lift off the gold headed coaxial cable that is connected to the motherboard and pull it away from the phone.

Can you retake the images at the end here, so the battery isn’t in?

Alex Watkins - 01/08/19

For the orange step, does it matter which side you pull the wire to?

Alex Watkins - 01/08/19

Schritt 9

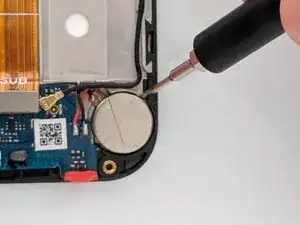

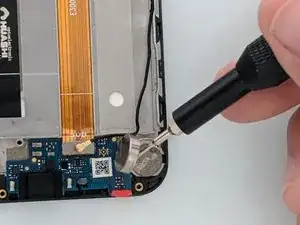

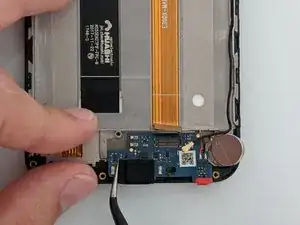

Use a spudger to pry off the cell battery near where the gold headed wire was.
The use of a screwdriver as a prying tool as shown in the photos is dangerous, especially in conjunction with the battery that is being pried. Choose an ESD-safe tool instead.

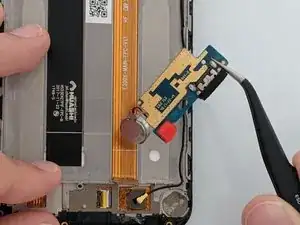

Move the cell battery off to the side so it is out of the way.
This removal has to be done in the small pocket near where the wire wraps around the bottom side of the battery.
