The Asus Zenbook UX303L is a 13.3-inch multi-touch notebook with an Intel Core i7 processor and 8GB RAM. On average, this notebook has stability and cool surface temperatures under a high load.
Should you need to replace the cooling fan on this device, this guide will provide you with step-by-step instructions on how to properly do so.
We also suggest working somewhere underneath bright lighting, so that you can clearly see the repairs you are making.
Use this guide to properly replace the cooling fan on your Asus Zenbook UX303L.
Werkzeuge
-
-

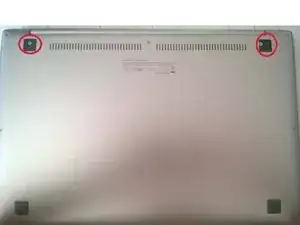

Remove the rubber pads closer to the air vents and remove the two screws using a P0 screwdriver.
-

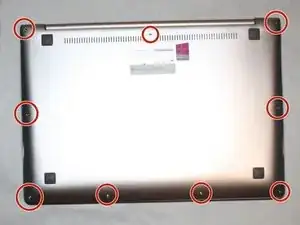

Remove all the nine screws from the bottom of the device using a T5 screwdriver.
-
Carefully remove the bottom cover.
-
-
-

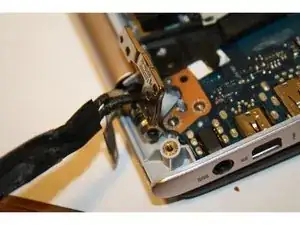

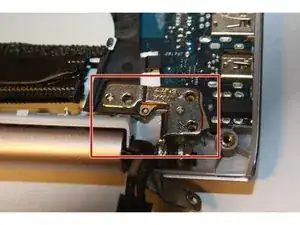

Remove the three screws from the hinges using a PH-1 screwdriver.
-

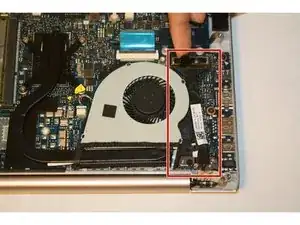

Open the device at a 90 degree angle to free the hinges.
-
-
-

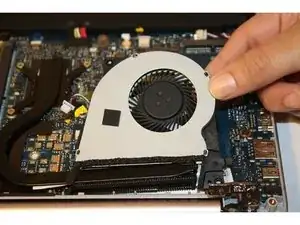

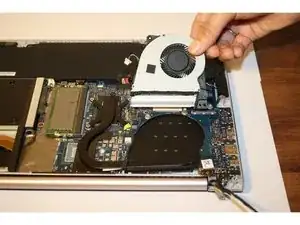

Remove the screws attached to the cooling fan with a PH-1 screwdriver.
-

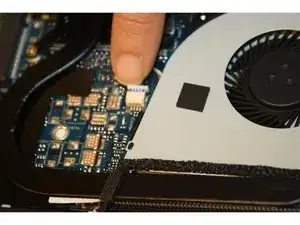

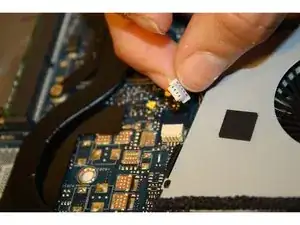

Disconnect the wire attaching the cooling fan to the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
3 Kommentare
After the 6 step Would i then just remove the dust on the cooling fan and reassemble after that? or replace the fan as a whole
I wish you guys had included the part number for the cooling fan.
mhyson -
I think that it is important to recommend to remove the battery first, otherwise there is a risk of short...
Don't ask me how I know... :-(
