Asus Zenbook UX303L RAM Replacement

Geschrieben von: Evan Parker
  • Kommentare: 1
Asus Zenbook UX303L RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Replacing a computer’s RAM is a necessary process for both upgrading the amount of available memory a computer has and for replacing any malfunctioning sticks of RAM. This guide will step you through the replacement process for replacing the DDR3L stick of RAM found within the ASUS Zenbook UX303L.

  1. kW2bPHVHToSQhYJG

    • Prior to installing RAM, it's good practice to ground yourself to avoid static discharge from damaging the internal components of the computer.

    • Avoid wearing static prone clothing or standing on carpet during the RAM replacement.

  2. CAPaGeGrMJkSERPg
    CAPaGeGrMJkSERPg
    AXvj4xDxAxNWHNQ2

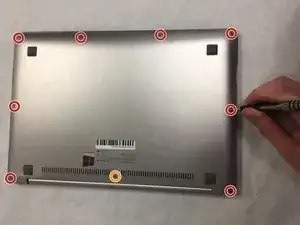

    • Unscrew the eight 3 mm long screws on the bottom of the laptop along the parameter using a T5 Torx screwdriver.

    • Unscrew the one 8 mm long screw at the bottom of the laptop panel using a T5 Torx screwdriver.

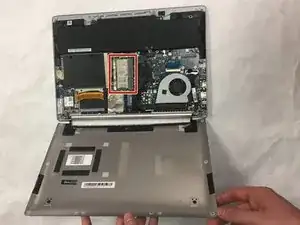

    • Once all screws have been removed, carefully lift the bottom panel to reveal the RAM.

  3. fAsxCUDpImKPNQqU
    fAsxCUDpImKPNQqU
    uBYx5AZysjTrgfDZ
    6ynTETf3wQlXIPQO

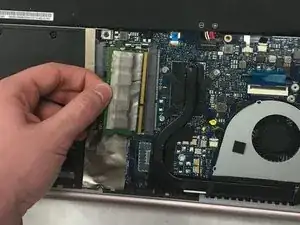

    • Carefully pull apart the two clasps circled in red so that the RAM stick pops up.

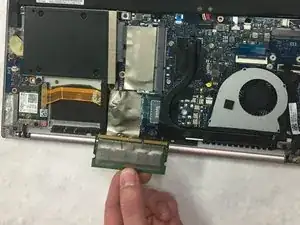

    • Remove the stick of RAM from the SO-DIMM slot by gripping the edges of the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Evan Parker

Mitglied seit: 01/04/19

130 Reputation

Ein Kommentar

This is incomplete. There are two screws more hidden behind the rubber support points (on the hinges side) of the computer.

And you need some adhesive to fix this rubber squares in place after you fix the lid in place.
