Asus Zenbook UX303L Trackpad Replacement

Geschrieben von: Fredis Benitez
  • Kommentare: 2
Asus Zenbook UX303L Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

If the mouse on your Asus Zenbook UX303L is not moving, moving incorrectly, not clicking, or clicking incorrectly, use this guide to replace its trackpad. Before using this guide, be sure to clean your trackpad of any dirt or debris that might be obstructing the trackpad’s movement and see if that fixes the problem.

The track pad is the small rectangular surface just below the space bar that is used to control the mouse. If available, attach an external USB mouse and verify that the cursor moves and clicks correctly with it. If it does not, the issue may be with the mouse settings.

Before beginning, make sure to power off your Asus Zenbook UX303L completely and disconnect it from any external power source.

  1. y6TFQuHPbM1hrIAS

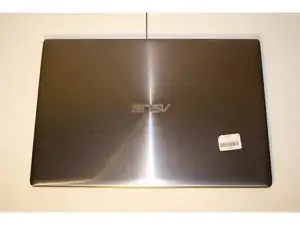

    • Make sure the device is turned off and disconnected from the battery charger.

  2. KOoSVpNweliNOMuF
    KOoSVpNweliNOMuF
    IHt1JDSMvIBUh5M3
    uSxs2vasyp3RoXaF

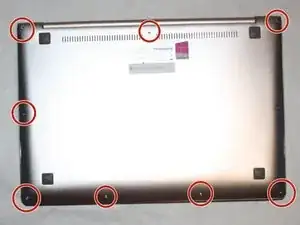

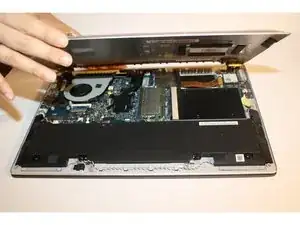

    • Remove all nine screws from the bottom of the device using a T5 screwdriver.

    • Carefully remove the bottom cover.

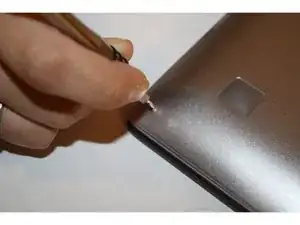

    Warning: My UX303L also had two phillips screws under the back two rubber feat. I broke one side trying to get the back panel off.

    Andrew Chan -

  3. Aa32tjLQFuZIIkkB

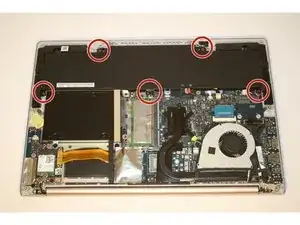

    • Remove five Phillips #1 screws from the battery pack.

  4. W1IGVXRyRB1itUrw
    W1IGVXRyRB1itUrw
    lVTmJ1iAMqvBEVMM
    wfkTSYKUnOtgtXwZ

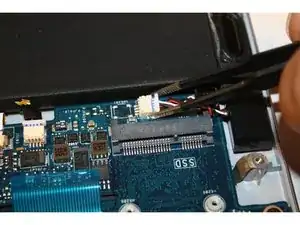

    • Unhook the red, black, and white coiled switch.

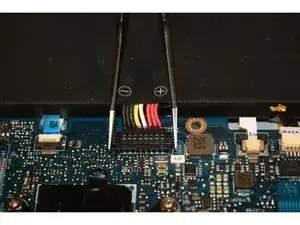

    • Detach the positive and negative red, black, yellow, and white switch from the motherboard.

    • Unhook the black and white coiled wire from the top of the battery pack.

  5. faZ1NEJiuCyAJPHd
    faZ1NEJiuCyAJPHd
    wPTbmnLdmLMu4sAx
    IZhhSUiV2RhiCGFC

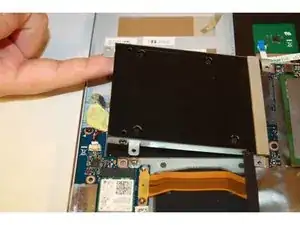

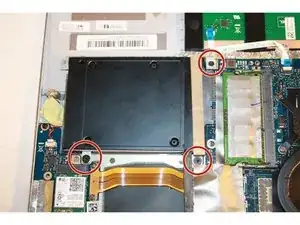

    • Remove the three screws connecting the SSD to the motherboard.

    • Gently lift and pull out the SSD.

  6. LEINm1TdGHiUGtaH
    LEINm1TdGHiUGtaH
    hkH6oy1KnylawtOg
    AjMaPcS1IZEDWYFx

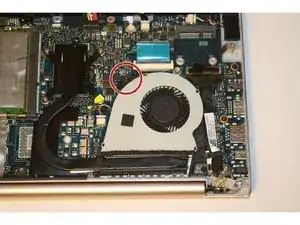

    • Remove the screw attaching the cooling fan to the motherboard.

    • Lift and remove the cooling fan.

  7. QIZV24gQvXuHfdCe
    QIZV24gQvXuHfdCe
    6pWOaE1NQpRKhxD5

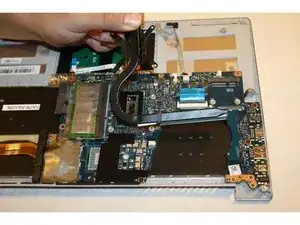

    • Remove the four Phillips #1 screws attached to the black covered copper bar next to the cooling fan.

    • Gently lift and remove the copper bar.

  8. CduwrELATOi6AuB1
    CduwrELATOi6AuB1
    61IlfFErsU5ZLunR
    NxIWG5rCntOExBSI

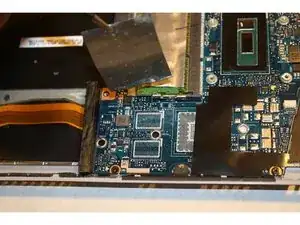

    • Remove the silver tape to reveal the fourth screw on the motherboard.

    • Detach the motherboard by removing the four Phillips #1 screws.

    • Detach the white wire connecting the motherboard by lifting the black flap and pulling it out.

  9. NDDlpWAMyFfWaYW6

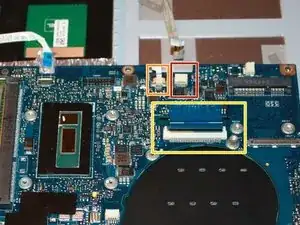

    • By using ESD-safe tweezers, remove the gray colored wire.

    • Remove the white wire using tweezers.

    • Remove the blue colored wire by lifting the black flap and pulling the blue flap out.

  10. ii4meouRhuyOQctJ
    ii4meouRhuyOQctJ
    rbWrJhUtJ1XZBWE4
    v5UkixskfiKZjxcp

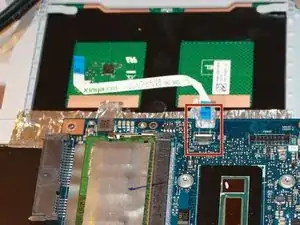

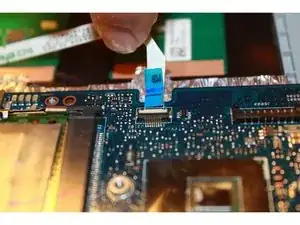

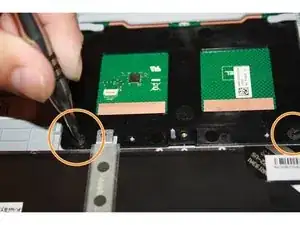

    • Remove the white wire with the blue ends by lifting the black flap with tweezers and gently pulling out.

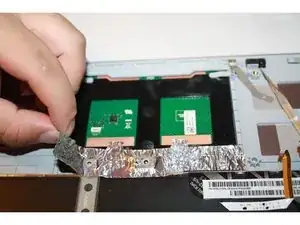

    • Gently remove the silver tape using tweezers.

    • Remove the Phillips #1 screws.

  11. lAnJvCvZXZZDMael
    lAnJvCvZXZZDMael
    VVPWxdEb5ciBpyOP

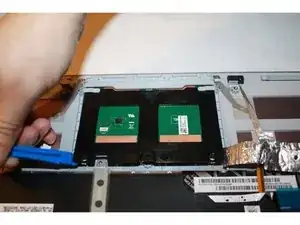

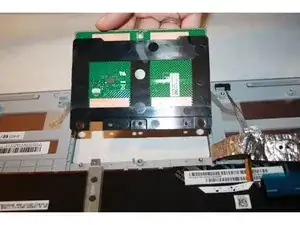

    • Place the plastic opening tools under the trackpad.

    • Gently pull out and remove the trackpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
