Einleitung

This guide will show you how to replace the motherboard of the Asus Zenbook UX31A. This may be necessary if you encounter problems with the RAM, which is soldered on and if you have problems with the computer constantly freezing or running very slowly.

The motherboard is responsible for the communication between the different pieces of hardware within the computer. If the motherboard is faulty or broken, it may lead to constant freezing and lag.

Before following this guide, make sure to run a virus or malware check. This will ensure that your issues are not caused by software issues. Also, make sure to check for driver updates as these may also cause lag or freezing. Lastly, make sure to check if your computer is overheating. If it is overheating, try cleaning out your computer vents and fan with an ESD safe brush and compressed air.

Before you proceed, make sure to power the computer all the way down and disconnect the charging cable. Replacing the motherboard will require the removal of many other parts within the computer, so be careful to avoid damaging them and do not stack them on top of each other.

  1. UFpLlwCuDJ2WCZMQ
    UFpLlwCuDJ2WCZMQ
    IfpqbmJFqQF4R3NK
    • Use a T6 screwdriver to remove the ten 6 mm case screws.

    • The two screws adjacent to the device serial number stamps are longer than the others. These two screws run about 11 mm long.

    • Remove the back cover from the laptop.

    • DO NOT BEND OR PUNCTURE THE BATTERY: Puncturing the battery can result in injury since the battery can catch fire or explode when exposed directly to oxygen

  2. WOx1wmwHrFPFqtjb
    • Use a Phillips #00 screwdriver to remove the three 7 mm screws that secure the battery.

  3. jybBImstQSZof2JW
    • Unplug the bundled battery connector from the motherboard by gently pulling the cable up.

    • Make sure you pull the connector directly upwards or you could damage the connector

  4. wFLRKYFXivvgDAqb
    • Remove the battery from the laptop by lifting it up and out.

  5. HpZrMHZKZvtm6HaG
    HpZrMHZKZvtm6HaG
    POHWUcCkBpZQntIq
    • Use a T6 screwdriver to remove the ten 6 mm case screws.

    • The two screws adjacent to the device serial number stamps are longer than the others. These two screws run about 11 mm long.

  6. gpiLjTCpJORMFWZM
    gpiLjTCpJORMFWZM
    EXrc2pjWfbrIFWGW
    • Use a Phillips #00 screwdriver to remove the two 6 mm screws that secure the Wi-Fi card.

    • Wires are loose and easy to disconnect.

  7. BqUDDAmpmRZfVsCo
    • Gently pull the the Wi-Fi card from the motherboard.

    • Disconnect the white and black wire by gently pulling each one up.

    • They can be a little tricky to put back on so take your time and be gentle.

  8. YHKUrTHmZdkKiUD3
    YHKUrTHmZdkKiUD3
    yUcOEsAZLai1LsEH
    • Unclip both ZIF connector tabs by lifting the black tab up and away from the connector.

    • Remove the bridge connector.

  9. KxFVNvBMCBhPDFDH
    KxFVNvBMCBhPDFDH
    BsZMD6bSkYJ2qNE5
    eqNYnEUT1bOw6n41
    • Use a Phillips #00 screwdriver to remove all seven 6 mm screws that secure the fan and heatsink.

  10. xHANAuqZLqgQRZQF
    xHANAuqZLqgQRZQF
    n2ja2KroF3LahUvh
    • Disconnect the fan connector by puling on it horizontally until it disconnects.

    • Remove the fan.

  11. MMmAx2qGxNGCMnyY
    MMmAx2qGxNGCMnyY

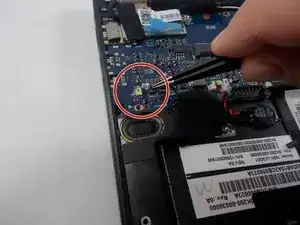

    LUdn4dGubxSpgTtk

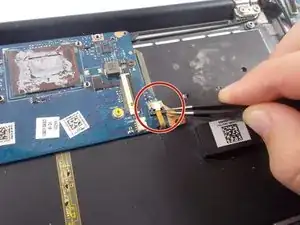

    WbRHPuDyqrWYC1PO
    • Disconnect the shown connectors and cables.

    • As indicated in the red circles, pull horizontally to remove the micropins.

    • As indicated in the red square, disconnect the ZIF connector by using the tip of the spudger tool or your fingernail to lift the locking tab. Then, gently pull the cable off.

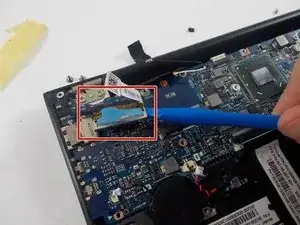

  12. hcq61SCsrfx5VqfI
    • To disconnect the display connector, use the iFixit opening tool and pry the connector up and away from the board.

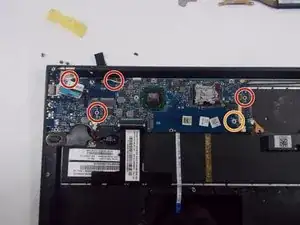

  13. dDKXl6WOWnqB1bN2
    dDKXl6WOWnqB1bN2

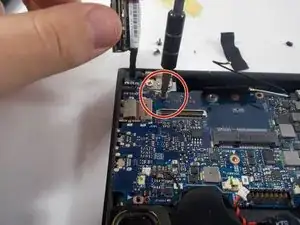

    GgIiKknHoWRkY2Zb

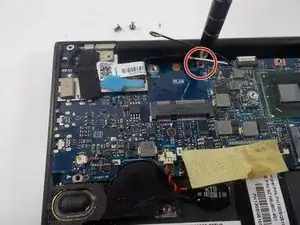

    yymjnXiokxUVuBZZ
    • There are 4 screws that hold the motherboard in place. Using the Phillips #00 screwdriver, unscrew the motherboard. (Indicated in red)

    • Next unscrew the safety pin using the PH000 screwdriver. (indicated in orange)

    • Screws circled in red are all the same length (about 6 mm)

    • Screws circled in orange is about 4 mm in length.

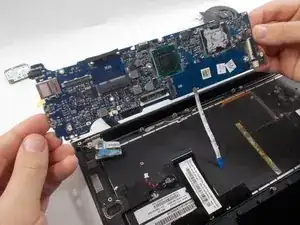

  14. QWGG6biOOquFVHww
    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
