Asus Zenbook UX31E Keyboard Replacement

Geschrieben von: Brian Mills
  • Kommentare: 9
Asus Zenbook UX31E Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

1 Stunde

Einleitung

If your Asus Zenbook UX31E laptop has stiff or unresponsive keys, use this guide to replace the keyboard.

The keyboard inputs character data to the laptop through key presses called keystrokes. Faulty keys may cause unregistered keystrokes with no input of character data. An on-screen keyboard available through Windows or an external USB keyboard may be used until internal keyboard issues are resolved.

Before starting a repair, make sure to power off your device completely and disconnect from any external power source.

  1. XEm21ypcAt1r364D

    • Using a T4 Torx screwdriver, remove the ten screws at the marked locations.

    • Place the screws into a container as to not lose them.

    Can you tell me what size these screws are? I need to replace two.

    Elliot Lozano -

    I don’t know, but you can search with product code: VISTORXUX31E

    See also: https://en.accessoires-asus.com/torx-scr...|l

    Davide Bortot -

  2. SIICoSvqwJjx6JEg

    • Carefully slide your iFixit Opening Tool between the back panel.

    • Lift the back plate of your ASUS ZenBook UX31E, and place it to the side.

  3. wOMaKNFHlJaU2W4C
    wOMaKNFHlJaU2W4C
    Fo2DBTZMBHKM5lk2

    • Disconnect the battery from the motherboard by gently pulling up and down on the connector.

  4. K6qo4vtfALnZBOAt
    K6qo4vtfALnZBOAt
    4ffjED26Vv6GdDdK

    • Using the Phillips #00 screwdriver, remove the screws from the middle and the two corners of the battery.

    • Place the screws into a container as to not lose them.

  5. aCtPrsy5mTospiYZ
    aCtPrsy5mTospiYZ
    MnLbDmELN5HKyQw6

    • Remove the battery. (Picture-1)

    • Picture of what the battery looks like.(Picture-2)

  6. TOAoW5Yy1VAutnFV

    • Use the plastic opening tool to pry open the back cover of the laptop.

    • Remove the bottom panel of the laptop.

  7. IjjYbgivsXkXgeWJ
    IjjYbgivsXkXgeWJ
    oyIEHrGxQVjd6ktI

    • Remove the screw connecting the speaker component to the motherboard using the screwdriver.

  8. iESUCGLPptCVOg42
    iESUCGLPptCVOg42
    HUw3BEq1euUYxYYs

    • Disconnect the sound cable from the motherboard.

  9. Jt4KZhMoR6ZtVfMq
    Jt4KZhMoR6ZtVfMq
    FYSREftT4aWHRPqg

    • Using the plastic opening tool, pry open the speaker component from the computer.

    It is not mandatory to remove the right speaker (which is under your left hand) but then be careful when you put back the motherboard to leave the speaker’s connector accessible

    lauhub -

  10. UhCNY2DGDOBKcDMQ

    • Attach your Anti-Static Wrist Wrap to something metal as to not shock your system.

    • Peel back the warranty sticker to reveal the screw under it.

    • Using your Phillips #00 Precision Screwdriver, unscrew the screw that you just revealed.

  11. tvd6wXtqV2YmGwUu
    tvd6wXtqV2YmGwUu
    4ZfhgmqVE4KQNkFb

    • Using your hand, pull the SSD out from its slot.

    domanda….come faccio a clonare il sistema operativo ?

    claudio_rava -

    Questa è la guida per lo smontaggio, meglio se pubblichi La tua domanda nel forum, probabilmente se usi cerca troverai la risposta. Comunque ci sono vari modi e programmi per farlo, ma spiegarlo qui non sarebbe ne adatto ne pratico.

    Davide Bortot -

  12. oesSmpUyM26PBVZs
    oesSmpUyM26PBVZs
    SSFmf6PyTsvElBMC

    • Disconnect the ribbon between the IO and the motherboard on both sides.

    To remove the ribbon, use a spudger to lift up the black plactic tab which holds the cable

    lauhub -

  13. SbwgbQXayiImTfdn

    • Disconnect the fan connector from the motherboard.

    • Pull up the clips on the ribbon connectors.

  14. ym1t2BypNAMQWcod
    ym1t2BypNAMQWcod
    YEOAACXxjGNENYyA

    • Unscrew the two screws that are across each other.

  15. yUD2nTiJOWQO3cDO
    yUD2nTiJOWQO3cDO
    U4uOT2ym5ZCnPTaW

    • Using a plastic opening tool, lift the fan off of the laptop.

    • You can now use your hands and carefully pull the fan off the laptop.

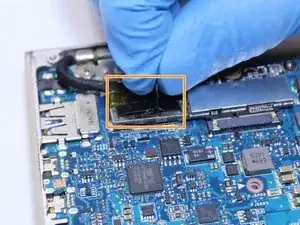

  16. KQsQZ3hv11EHCOcK
    KQsQZ3hv11EHCOcK
    CNaJc4lNPsrCNKMG
    qeFfmgR4wyecHxBE

    • Remove the 7 screws holding the motherboard in the case with a Phillips #00 screwdriver.

    • Remove the press fit connector attaching the motherboard to the screen.

    • Remove the two cables that are still attached to the motherboard. You will need to use needle nose tweezers to remove these.

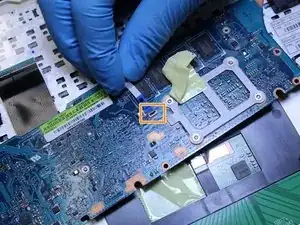

  17. 3u4SRS2qHL3WfWuI
    3u4SRS2qHL3WfWuI
    AwjRSrPUPUvHVAcp

    • Lift gently and flip the motherboard over in the direction of the track pad.

    • Peel off the the yellow tape.

    • Detach the ZIF connector on the underside of the motherboard connecting it to the keyboard.

    • Remove the motherboard.

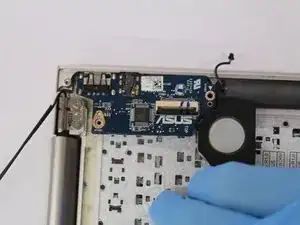

  18. jbfoNoIRCrvQUvyg
    jbfoNoIRCrvQUvyg
    hUH6NKWHLPAhEpMG

    • Remove the speaker assembly.

    • Lift gently to avoid damaging the speaker assembly.

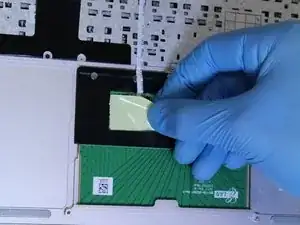

  19. MSOvKQniRMQjNN4v
    MSOvKQniRMQjNN4v
    It5gkNqG6UrQiyCv

    • Gently peel back the yellow tape to reveal where the ribbon cable attaches to the track pad.

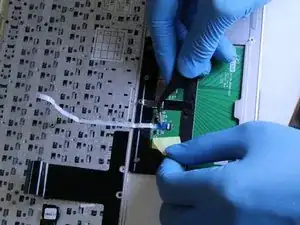

  20. 3PIUHulDTUkVgYMJ

    • Remove the 56 screws marked in red circles using a Phillips #000 screwdriver.

    I needed PH000 for these tiny screws.

    Dirk Matthecka -

    Overengineer much?

    Bnad -

  21. Z4jS4i4KxVEHTS61

    • Put your hand under the keyboard and gently push the keyboard up and away from the frame of the computer with your fingers.

    • Be very careful to not damage the keyboard itself when removing it.

    I want a keyboard

    rana.computers143 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
