Asus Zenbook UX31E LCD Screen Replacement

Geschrieben von: Charles Jackson
  • Kommentare: 7
Asus Zenbook UX31E LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

22

Zeitaufwand

20 Minuten

Einleitung

  1. XEm21ypcAt1r364D

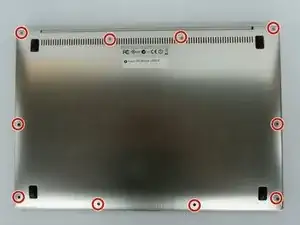

    • Using a T4 Torx screwdriver, remove the ten screws at the marked locations.

    • Place the screws into a container as to not lose them.

    Can you tell me what size these screws are? I need to replace two.

    Elliot Lozano -

    I don’t know, but you can search with product code: VISTORXUX31E

    See also: https://en.accessoires-asus.com/torx-scr...|l

    Davide Bortot -

  2. SIICoSvqwJjx6JEg

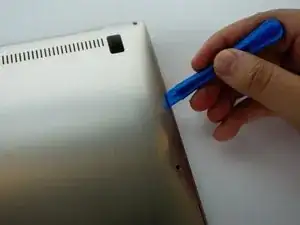

    • Carefully slide your iFixit Opening Tool between the back panel.

    • Lift the back plate of your ASUS ZenBook UX31E, and place it to the side.

  3. wOMaKNFHlJaU2W4C
    wOMaKNFHlJaU2W4C
    Fo2DBTZMBHKM5lk2

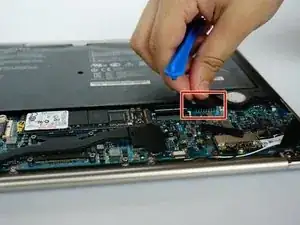

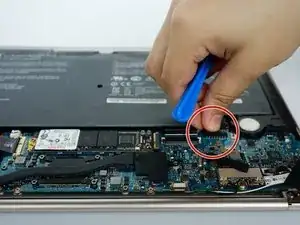

    • Disconnect the battery from the motherboard by gently pulling up and down on the connector.

  4. K6qo4vtfALnZBOAt
    K6qo4vtfALnZBOAt
    4ffjED26Vv6GdDdK

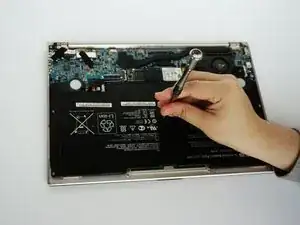

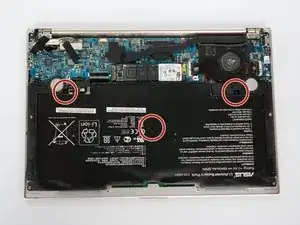

    • Using the Phillips #00 screwdriver, remove the screws from the middle and the two corners of the battery.

    • Place the screws into a container as to not lose them.

  5. aCtPrsy5mTospiYZ
    aCtPrsy5mTospiYZ
    MnLbDmELN5HKyQw6

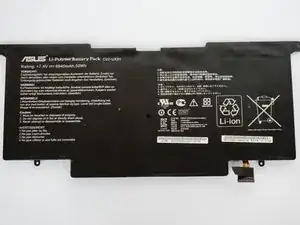

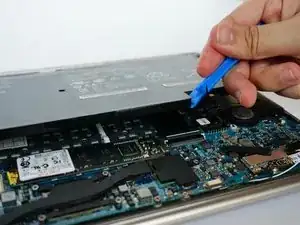

    • Remove the battery. (Picture-1)

    • Picture of what the battery looks like.(Picture-2)

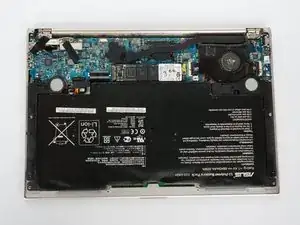

  6. TOAoW5Yy1VAutnFV

    • Use the plastic opening tool to pry open the back cover of the laptop.

    • Remove the bottom panel of the laptop.

  7. IjjYbgivsXkXgeWJ
    IjjYbgivsXkXgeWJ
    oyIEHrGxQVjd6ktI

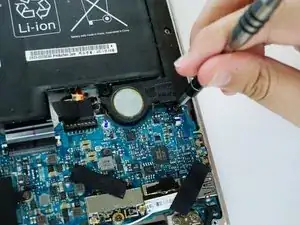

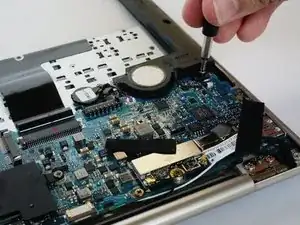

    • Remove the screw connecting the speaker component to the motherboard using the screwdriver.

  8. iESUCGLPptCVOg42
    iESUCGLPptCVOg42
    HUw3BEq1euUYxYYs

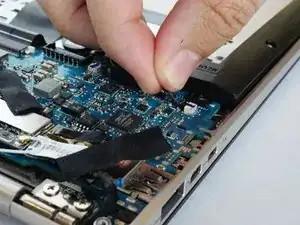

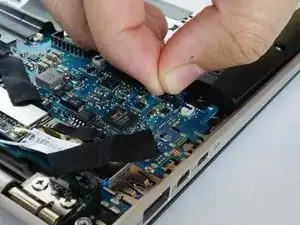

    • Disconnect the sound cable from the motherboard.

  9. Jt4KZhMoR6ZtVfMq
    Jt4KZhMoR6ZtVfMq
    FYSREftT4aWHRPqg

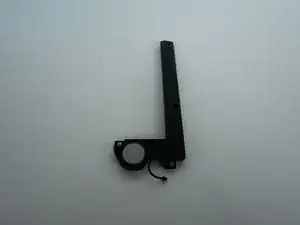

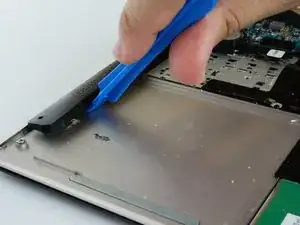

    • Using the plastic opening tool, pry open the speaker component from the computer.

    It is not mandatory to remove the right speaker (which is under your left hand) but then be careful when you put back the motherboard to leave the speaker’s connector accessible

    lauhub -

  10. UhCNY2DGDOBKcDMQ

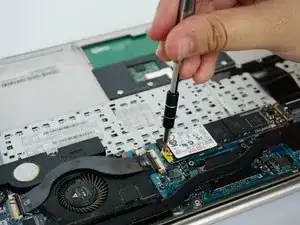

    • Attach your Anti-Static Wrist Wrap to something metal as to not shock your system.

    • Peel back the warranty sticker to reveal the screw under it.

    • Using your Phillips #00 Precision Screwdriver, unscrew the screw that you just revealed.

  11. tvd6wXtqV2YmGwUu
    tvd6wXtqV2YmGwUu
    4ZfhgmqVE4KQNkFb

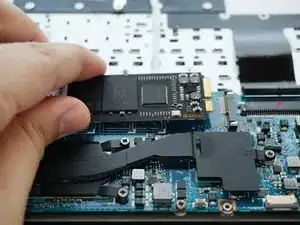

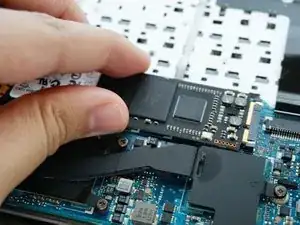

    • Using your hand, pull the SSD out from its slot.

    domanda….come faccio a clonare il sistema operativo ?

    claudio_rava -

    Questa è la guida per lo smontaggio, meglio se pubblichi La tua domanda nel forum, probabilmente se usi cerca troverai la risposta. Comunque ci sono vari modi e programmi per farlo, ma spiegarlo qui non sarebbe ne adatto ne pratico.

    Davide Bortot -

  12. oesSmpUyM26PBVZs
    oesSmpUyM26PBVZs
    SSFmf6PyTsvElBMC

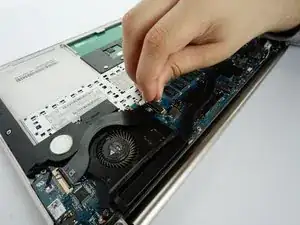

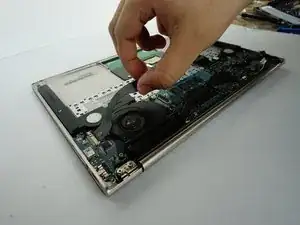

    • Disconnect the ribbon between the IO and the motherboard on both sides.

    To remove the ribbon, use a spudger to lift up the black plactic tab which holds the cable

    lauhub -

  13. SbwgbQXayiImTfdn

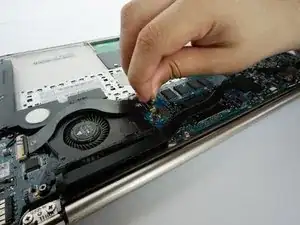

    • Disconnect the fan connector from the motherboard.

    • Pull up the clips on the ribbon connectors.

  14. ym1t2BypNAMQWcod
    ym1t2BypNAMQWcod
    YEOAACXxjGNENYyA

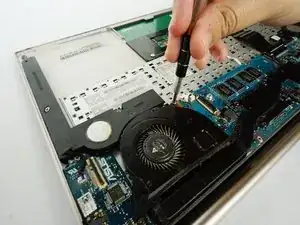

    • Unscrew the two screws that are across each other.

  15. yUD2nTiJOWQO3cDO
    yUD2nTiJOWQO3cDO
    U4uOT2ym5ZCnPTaW

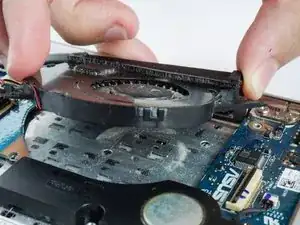

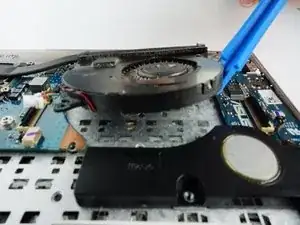

    • Using a plastic opening tool, lift the fan off of the laptop.

    • You can now use your hands and carefully pull the fan off the laptop.

  16. 61v6hTpGqVUQpHN6

    • Although replacement guides are listed as prerequisites, they are mainly used for disassembly.

    • At the marked locations, unscrew 7 screws with your Phillips 00 Precision Screwdriver.

    • At the marked locations (under certain components), unscrew 3 screws with your Phillips 00 Precision Screwdriver.

  17. N4xPwM5rcX4RCb3N

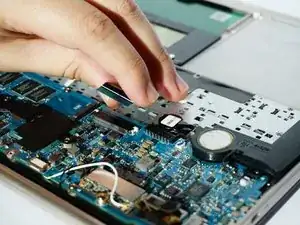

    • Carefully pull out the ribbon connecting your keyboard and motherboard from the motherboard.

    • This is a very delicate component, so do handle it with care.

    Carefully means here: pull towards the front part of the computer the two smalls white plastic locks (the two white plastic that are on each side of the ribbon)

    lauhub -

  18. nObLAfoR3td2C3gQ

    • At the bottom right corner of your laptop, carefully pull the connector from its socket.

  19. 5kXcc2GvOccQLEaX
    5kXcc2GvOccQLEaX
    CQLAQGgW6mTVQSNn

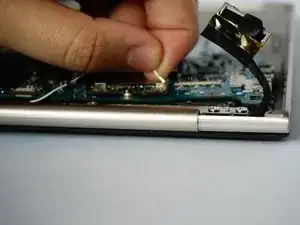

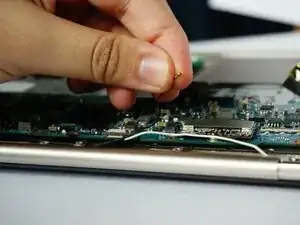

    • Carefully pull the black wire with a copper connector out from its socket.

    • Carefully pull the white wire with a copper connector out from its socket.

    • When reassembling, you will hear a pop when connecting these back.

  20. mRyn2HcEtGXrsdRO

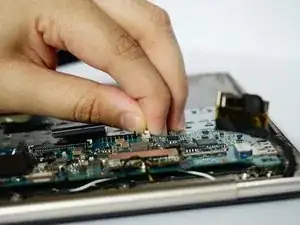

    • Carefully unplug this white wire from the motherboard

  21. Lxc2OuVCIDN6nZFp

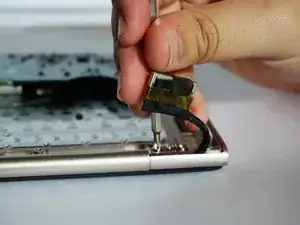

    • At the corners between your screen and the rest of your laptop, unscrew 4 screws with your Phillips 00 Precision Screwdrivers.

  22. yAGSANeud4ZYpTrs

    • Slide the display to either the left or right to loosen it.

    • Pull the display away from the rest of your laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
