Asus Zenbook UX32VD HD Web Camera Replacement

Geschrieben von: Michael Remmel
  • Kommentare: 2
Asus Zenbook UX32VD HD Web Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

If the HD web camera is not functioning this guide will teach you how to get behind the screen cover to replace the camera.

Note: Be sure the camera is broken and not just a software issue before you replace it.

  1. ZYuCuMTEcMqSnUCG

    • Heat the adhesive behind the screen frame with a hair dryer or a heat gun.

    • Use low heat with the heat gun. Over heating could damage delicate electronic components.

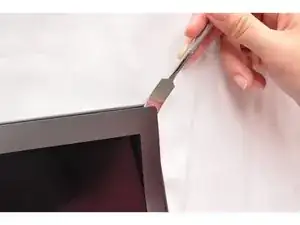

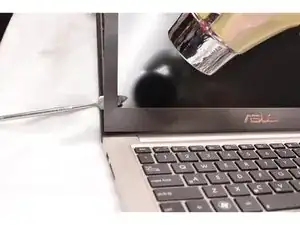

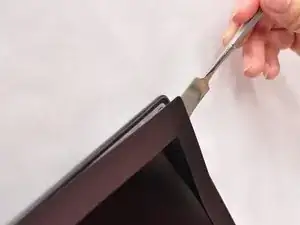

  2. GbVCeREPO1mKHDEp
    GbVCeREPO1mKHDEp
    IMKZDicrcDFGpLpU
    g26XZ5DNui3mFefU

    • Insert a spudger between the display screen frame and the back screen panel.

    • Pry the display screen frame away from the back screen panel.

    • Continue to heat and remove the display screen frame along the whole perimeter.

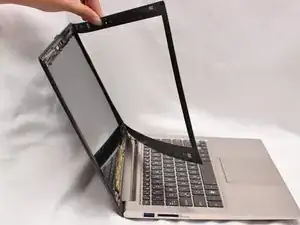

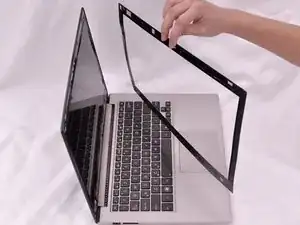

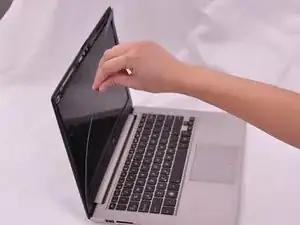

  3. GDMCXKFqidGYqKNV
    GDMCXKFqidGYqKNV
    jAtEdpJLuSuEntQn
    SFxhMHMZXhRycTBx

    • Remove display screen frame completely before adhesive cools and hardens.

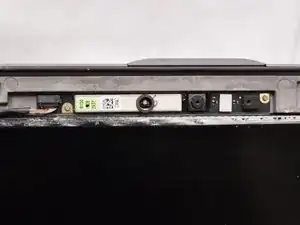

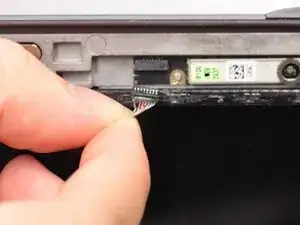

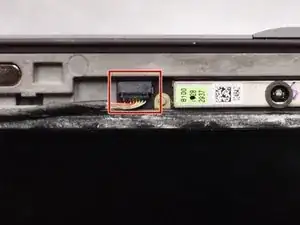

  4. ydkPdvNwZBFl1YtO
    ydkPdvNwZBFl1YtO
    F3nKsFLLdA4bhtIg

    • Unplug the bundled cable connector.

    • Pull the cable away from the connector in the same direction as the individual wires are running.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

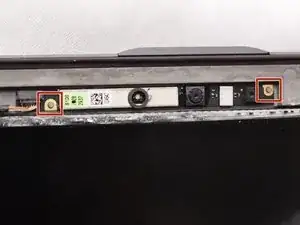

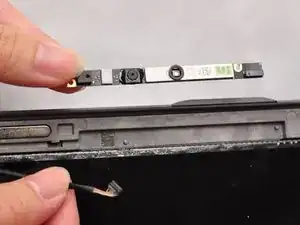

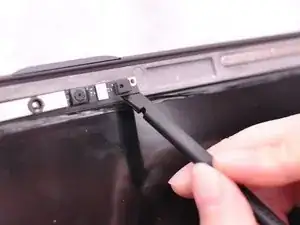

  5. dPpHlGWxJKBhZFWG
    dPpHlGWxJKBhZFWG
    ZILpkcMJlS4qSPdN
    HWK2wu1PxahsVjOP

    • Pry the camera out from the two pins on the left and right of the camera with the tip of a spudger.

    • Remove the camera completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
