Asus Zenbook UX32VD GPU Fan Replacement

Geschrieben von: Miguel Angel Felix
  • Kommentare: 0
Asus Zenbook UX32VD GPU Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace noisy or malfunctioning GPU fan in the Asus Zenbook UX32VD.

  1. cDcbPiow5EDsgacB
    cDcbPiow5EDsgacB
    KMwK3VcaDbRY4Lsl
    KY5doCTaSrvoDxVs

  2. bWKIwfUkL4W4BZGW
    bWKIwfUkL4W4BZGW
    IXU3Ljhn6hrRID6Z
    bbMcRrbkmWFhSBIq

    • Use a plastic opening tool to pry along the perimeter of the bottom panel until it can be easily removed.

    • Remove the bottom panel from the body of the laptop.

    • Set aside the bottom panel.

  3. It31Ghx5xnnLqN3V
    It31Ghx5xnnLqN3V
    q66acjeFFuJdZwdx
    YKsymnwANMmDQB6s

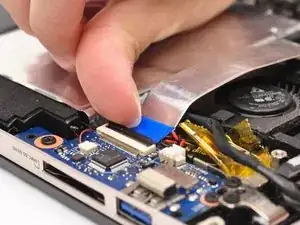

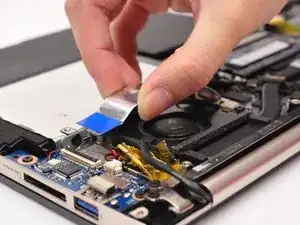

    • Use the tip of your spudger or your fingernail to open the ZIF connector on the I/O board.

    • Be sure to pry up on the hinged retaining flap, not the connector itself.

    • Remove the metallic ribbon cable from the connector .

    • No force is needed to remove or insert the cable.

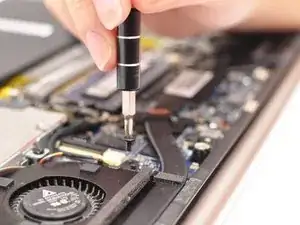

  4. rwFxCrOVUaCUOgWR
    rwFxCrOVUaCUOgWR
    Woco5JBWcYRaXIf1
    iGHTxMrYOUfI1KFb

  5. HiiKYWGkxejRmqBQ
    HiiKYWGkxejRmqBQ
    MnIYkgawIY4DkiPD
    GYhvmoJgPk6LxEMk

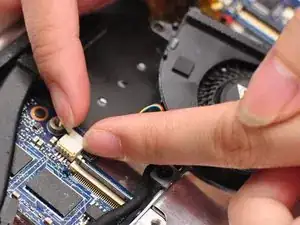

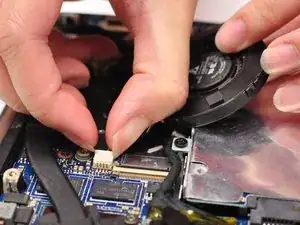

    • Unplug the bundled cable connector.

    • Move the fan as shown in the first picture to better access the connector.

    • Pull the cable away from the connector in the same direction as the individual wires are running.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

  6. fxyvcrIGWLjxMlQE

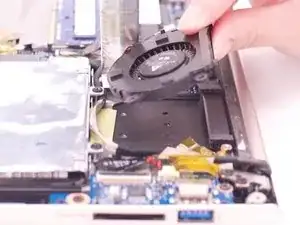

    • Remove the fan completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
