Asus Zenbook UX32VD RAM Replacement

Geschrieben von: Paola
  • Kommentare: 1
Asus Zenbook UX32VD RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Upgrade the RAM in your laptop.

  1. cDcbPiow5EDsgacB
    cDcbPiow5EDsgacB
    KMwK3VcaDbRY4Lsl
    KY5doCTaSrvoDxVs

  2. bWKIwfUkL4W4BZGW
    bWKIwfUkL4W4BZGW
    IXU3Ljhn6hrRID6Z
    bbMcRrbkmWFhSBIq

    • Use a plastic opening tool to pry along the perimeter of the bottom panel until it can be easily removed.

    • Remove the bottom panel from the body of the laptop.

    • Set aside the bottom panel.

  3. tNNwqrv1yAx6aLFv
    tNNwqrv1yAx6aLFv
    DfqtPU6punhJjwR1
    xXSHRVWoun5xds2C

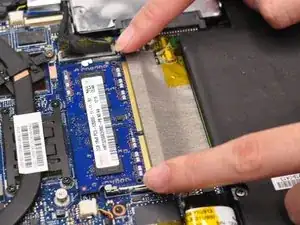

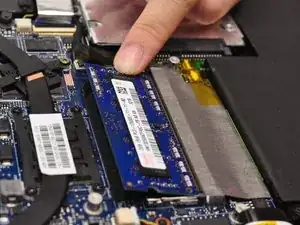

    • Push away the RAM retaining arms from the RAM chip.

    • The RAM chip will spring up once the retaining arms are pushed away from the chip.

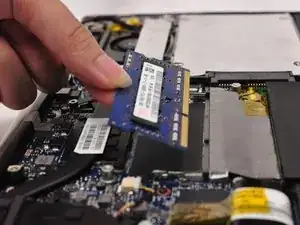

    • Remove the RAM chip completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
