Asus Zenbook UX550GE-XB71T Battery Replacement

Geschrieben von: Annamary W Cartagena Velez
  • Kommentare: 0
Asus Zenbook UX550GE-XB71T Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

If your device isn’t properly charging or loses charge easily, it may be time to replace the battery. Follow the instructions in this guide to replace the battery in the Asus Zenbook UX550GE-XB71T.

  1. WNWUim2MObFWYdg2
    WNWUim2MObFWYdg2
    xCGSGyqZEMRTATLD

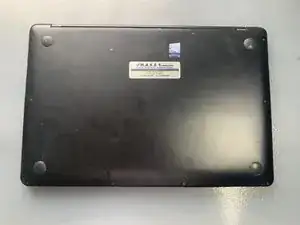

    • Turn computer off and disconnect it from power.

    • Flip it over so the backside is facing you.

  2. 6eDOiryWIEA4xrwV
    6eDOiryWIEA4xrwV
    QWSkoEANELywmXAN

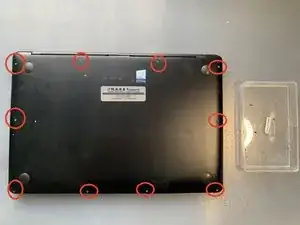

    • Using the T5 Torx screwdriver, remove the ten screws under the computer.

    • Gently remove the back cover from the device.

  3. jvnssoeB2kaMGF4S

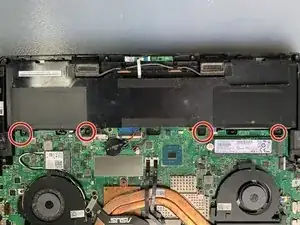

    • Using the Phillips #00 screwdriver, remove the four screws along the battery.

  4. bOdLheAOaHJJec32
    bOdLheAOaHJJec32
    yyDFAY2AsIjGxkQk
    IYqQUdPFWIZejIoR

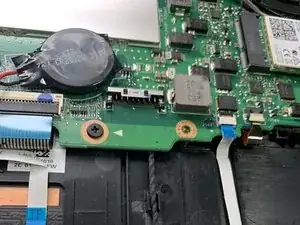

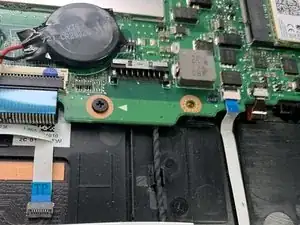

    • Disconnect the ribbon cable by pushing upwards on the ZIF connector.

  5. 5j1LtUTAtVDuaTsR

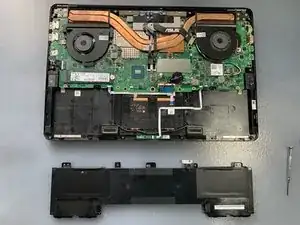

    • Disconnect and remove the battery from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.
