Audio-Technica AT-LP60BK-BT Belt Drive Replacement

Geschrieben von: Zonghao Li
  • Kommentare: 0
Audio-Technica AT-LP60BK-BT Belt Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will deal with how to replace the broken or missing belt drive for Audio-Technica AT-LP60BK-BT Bluetooth Wireless Turntable. The rubber band could cause a malfunction and break after using a long time or under extreme temperatures.

Before using this guide, make sure the size of the new belt is designed specifically for this model to avoid motor overheat problem.

  1. fQPm1iGag3vLUEjm
    fQPm1iGag3vLUEjm
    x5Sp5YBQAtEkUOIL

    • Open the top plastic cover and remove the record and rubber mat.

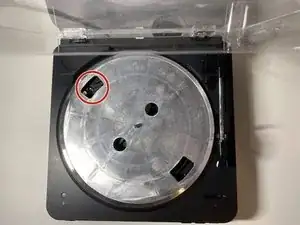

  2. qSFJEdLvGLUxnfNU
    qSFJEdLvGLUxnfNU
    TBSoXbEhhTsOmYGb

    • Find the belt underneath the platter by rotating the platter to the correct place.

    • Remove the belt from the motor pulley.

  3. FauHPevFRDaCUoBp

    • Take the platter off by pulling it straight up.

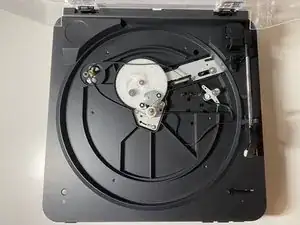

  4. CyoR1XuXwNAYFJmk
    CyoR1XuXwNAYFJmk
    5AbCqrjAhMQQuhYf

    • Remove the old belt.

  5. GVQQ1qcUQC12c22H

    • Turn platter upside down.

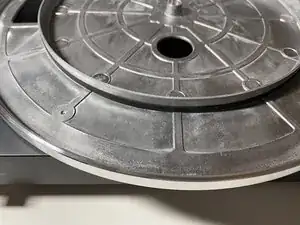

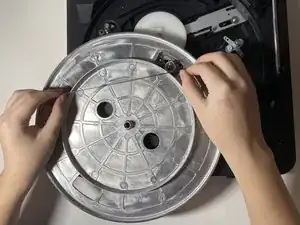

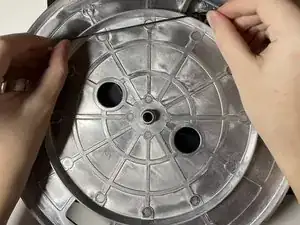

  6. TGH6AqHZyBqKKBag
    TGH6AqHZyBqKKBag
    RIxDRBn1Px13hOHG
    E6EYRR5FUaSPvFSS

    • Place the new belt around the inner lap on the upside-down platter.

    • Make sure the rubber band is flat on the platter, with no flipping.

  7. NqTI6QGTJeRSo4tE

    • Turn the platter around.

    • Grab the belt around with a finger through one of the holes in the platter.

  8. cR4W2YrIxApin6Zk

    • Put the platter straight down.

  9. jNgDCqcTKPCUlbGm

    • Put the belt around the motor pulley.

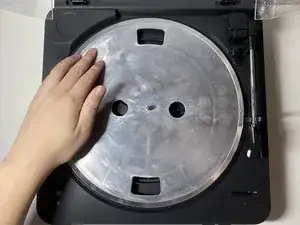

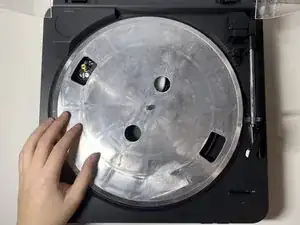

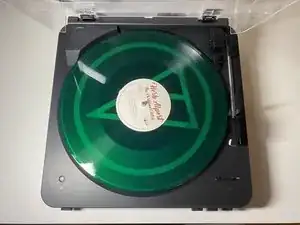

  10. bLss5HRPsxy1suKN
    bLss5HRPsxy1suKN
    S1WegvBaZBlPmCyP
    qP3yW6Jh4hgwAbb6

    • Test the function by spinning the platter and put the rubber mat into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
