Audio-Technica LP60XBT Turntable Gear Replacement

Geschrieben von: Devon Ferreira
  • Kommentare: 0
Audio-Technica LP60XBT Turntable Gear Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

At times, the gear that rotates in the Audio-Technica LP60XBT turntable can become old and worn causing it to break. The replacement of the gear is relatively fast and simple and can save the user a lot of money by not buying a new turntable. A successful replacement of the gear can eliminate waste in landfills; when discarded in landfills, record players can leak chemicals that are toxic to humans.

  1. KrLF1FXMEBHsYIIf
    KrLF1FXMEBHsYIIf
    qoWFMY2tl3GZXIj6

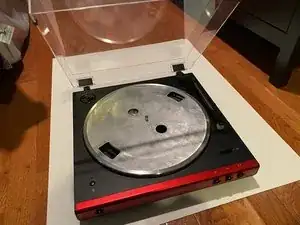

    • Remove the felt pad, and put it to the side.

  2. aoRxOVAkUZxDORfr

    • Turn the platter so that the brass motor pulley can be seen through one of the two outer holes in the platter.

    • If the drive belt is hooked around the motor pulley, unhook it.

    • When reassembling to device, don't forget to hook the new drive belt to the motor pulley.

  3. TrUmj5XOpqSpnVpt
    TrUmj5XOpqSpnVpt
    PDgfxap4U5cNtUMQ

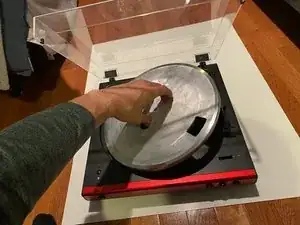

    • Remove the platter by grasping the platter by its two inner holes and lifting it upwards.

    • If the drive belt is unhooked and the tone arm is safely to the side, don’t be afraid to use a small amount of force in lifting the platter if necessary.

  4. RPXLiYf2rdjQUgb5

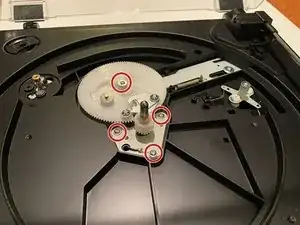

    • Remove the four screws holding in the gears using a Phillips #0 screwdriver.

  5. SdD4e1kYKHmtdoSR
    SdD4e1kYKHmtdoSR
    nTZGm5VQPLPjadaf
    WUeXdOGUBSUUZXRV

    • Remove the large white gear by pulling it upwards.

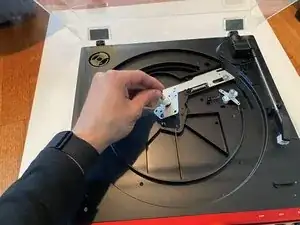

    • Remove the small white gear and base by pulling them upwards.

  6. S2QkUxCQBhaoHvpC

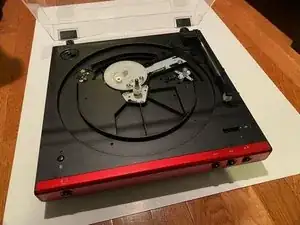

    • Insert the small replacement gear first, then the large replacement gear second.

    • When replacing the smaller gear and base, be sure to feed the black ground wire through the hole in the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
