August Smart Lock Accelerometer Replacement

Geschrieben von: William Fink
  • Kommentare: 6
August Smart Lock Accelerometer Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

The accelerometer is important to making sure the August Smart Lock can rotate with the motor. This guide will teach how to take out the accelerometer from within the device.

  1. 2Xy2DAXKrMALXEWt
    2Xy2DAXKrMALXEWt
    gRdXARLD6nRCgJwr
    YhqVU2MULBCQpDCy

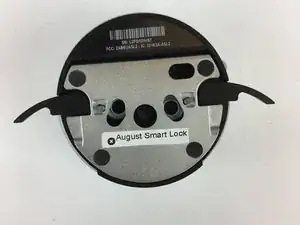

    • Flip device over so the black bottom is facing you.

    • Undo latches on both sides to remove the metal cover.

    • Using a Phillips #0 screwdriver, remove the black screws to release the back cover.

    • To unscrew all of the screws, you will need to close the latches again.

    • When you lift off the cover, be careful not to lift to far up. The cover contains the speaker which is connected to the motherboard.

  2. tsqqYg4HClpcWdOe
    tsqqYg4HClpcWdOe
    KVy6VdqYWQliHvq1
    NPyVYolse6PTDcpg

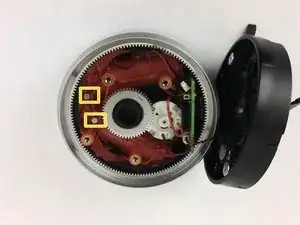

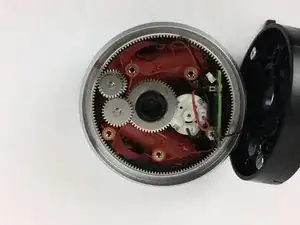

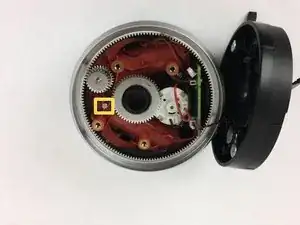

    • Grab the gears and lift them up to remove from the device

  3. gBAKI6TBiYJMw4Or
    gBAKI6TBiYJMw4Or
    xE1BNDPJYPRUXKw4
    iRVUBJiKUqQpPdLn

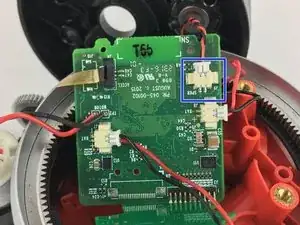

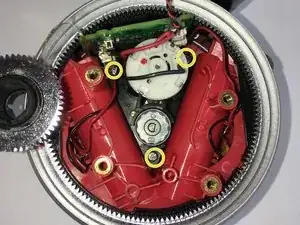

    • Remove the (3) three silver screws by the motor using a Phillips #0 screwdriver.

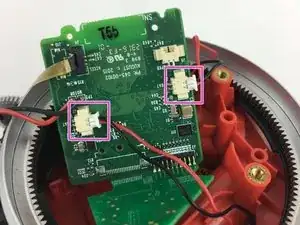

    • Disconnect the speaker plug from the motherboard

    • Disconnect the battery plugs from the motherboard.

  4. OwMp2RDOftUw1aHa

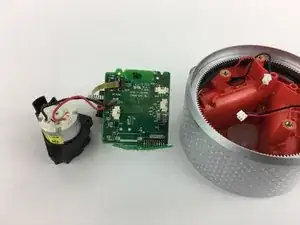

    • Once the speaker is disconnected, remove the back cover.

    • Lift up the motherboard and motor assembly out of the device.

  5. hj3UKp4FxcBu3WIP
    hj3UKp4FxcBu3WIP
    FSKigZNQjy1HTSZP

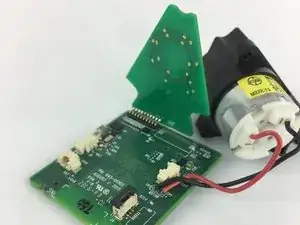

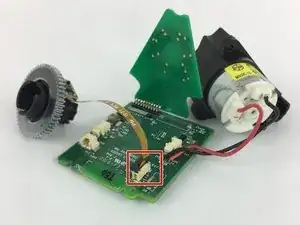

    • Locate the Accelerometer. It is attached to the motherboard by a ribbon.

    • Lift up the black tab to remove the ribbon from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
