Einleitung
Here you will learn to remove the bushing of the dart gun's ammo drum. It is relatively hard to get at and requires disassembling the gun a fair degree and therefore requires a Phillips #00 screwdriver. This is one of the trickier guides for this device, so have fun and be careful!
Werkzeuge
-
-

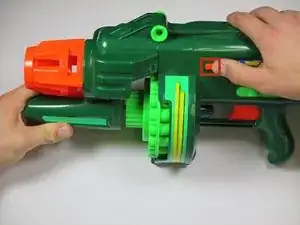

Locate the orange slider on the front side of the gun.
-

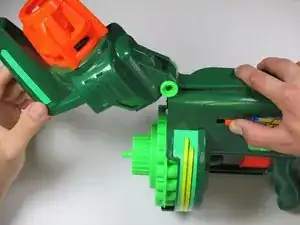

Pull the orange slider towards the back of the gun while lifting up on the nose the gun.
-
-
-
Remove the single 1/8 in. screw at the junction of the body and the nose using a Philips #00 Screwdriver.
-
Remove all parts within the chamber to be able to completely detach the nose of the gun.
-
-
-

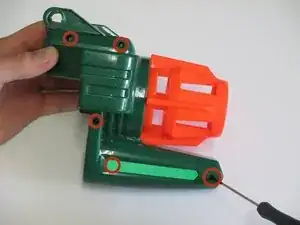

Remove all five 1/16 in. screws holding the nose of the gun together using a Phillips #00 screwdriver.
-
Look out for the hidden fifth screw behind the thin light green tape near the bushing itself. Peel the tape using your finger to gain access.
-
-
-

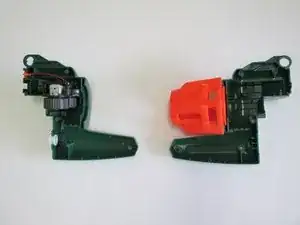

Pick up the now split half of the nose of the gun that does not still have the orange tip attached to it.
-
Remove the bushing by simply pulling it away from the plastic.
-
To reassemble your device, follow these instructions in reverse order.
