Replacing the battery in the Tommy 20 is a relatively simple replacement, just make sure you have 3 replacement AA batteries ready to go beforehand along with a Phillips #1 Screwdriver! A good first step in any repair goal concerning the Tommy 20!
Werkzeuge
Ersatzteile
-
-

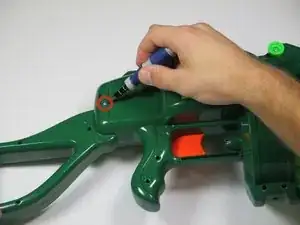

Remove the single 1mm screw connecting the battery cover to the gun using a Phillips #1 screwdriver.
-

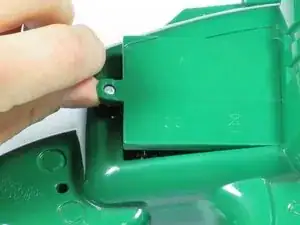

Lift the cover away from the gun and remove.
-
-
-

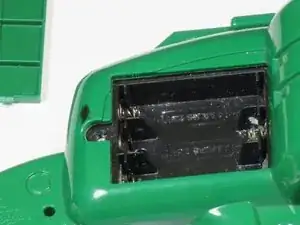

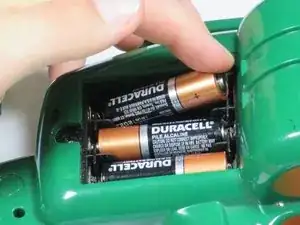

Remove all three batteries from compartment by pulling up on the positive end of each battery.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
