    • 1. Drill a hole in the top right corner 16.5 mm from the top and 30.3 mm from the side using a 13/16 inch drill bit.

    • 2. Drill two holes in the side 30 mm from the short sides and 27 mm from the long side using a 1/2 inch drill bit.

    • 3. Screw in two waterproof cable gland connectors to the side holes.

    • Put in a button in the rocker switch in the other hole.

  2. jVp4dOePXoUppTKq
    jVp4dOePXoUppTKq
    S3YJSVALPMpEyMrS

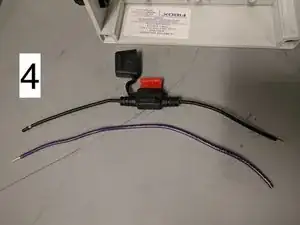

    • 4. Cut the purple wire and the inline fuse holder wire 10 inches long.

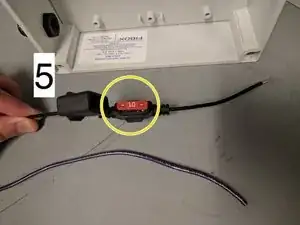

    • 5. Attach a 10A, 12VDC fuse.

  3. BHCACAH6nKqRUmwA
    BHCACAH6nKqRUmwA
    iuNH5icfHO4xZ4Yi
    YD5HPLqxaXTSN1qB

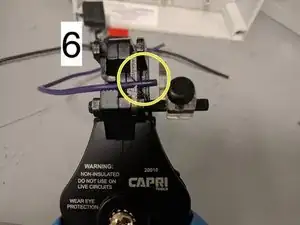

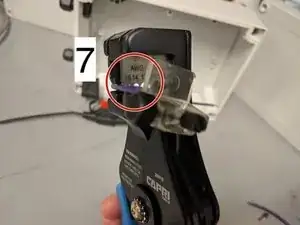

    • 6. Strip both wires about 1/2 inch

    • 7. using the 16 gauge slot of the wire stripper

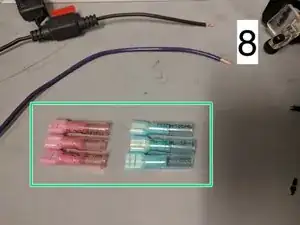

    • 8. Get 3 pink and 3 blue fully insulated heat-shrink quick-disconnect terminals.

  4. 4JhTVe2QvVjvYSwu
    4JhTVe2QvVjvYSwu
    SIWUwJNDgFgMsno4
    GiQQ44iS2ceqPPw4

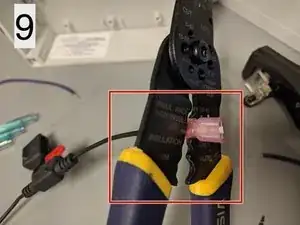

    • 9. Crimp the fully insulated heat-shrink quick-disconnect terminal onto the end of the wire.

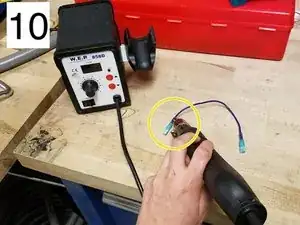

    • 10. Use the heat shrink gun to heat shrink the ends of the crimps.

    • 11. Repeat for both ends of both wires.

  5. QpfK2VSJUjSiMLrO
    QpfK2VSJUjSiMLrO
    ELZkUJHr5NXBVhvJ

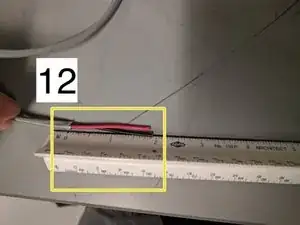

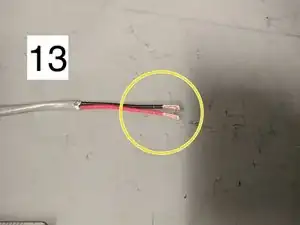

    • 12. Cut two feet of red and black 16G wire (grey insulated wire) and then strip 2 inches off of the grey insulation.

    • 13. Strip 1/2 inch of both the black and red wires.

  6. dScyj1fKY3lbE1lZ
    dScyj1fKY3lbE1lZ
    OJ6xRJPoW5uQ6CEO
    FUNBVlq6Sb2ZyjdA
    • 14. Place two metal contacts on both the red and black wires.

    • You should see copper wire through the little pin hole. If not, strip more insulation.

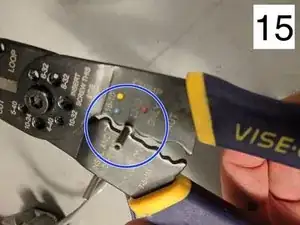

    • 15. Crimp the contacts into place.

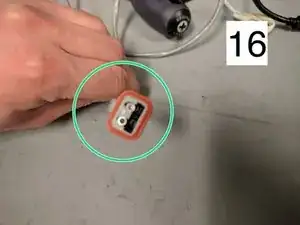

    • 16. Thread the contacts into the Amphenol connector.

  7. QXIMsNjlTURhZAKK
    QXIMsNjlTURhZAKK
    DoxvPDdKsYT3n4MK
    tsdHTCunUVUy2ZZK
    • 17. Attach the green wedge to the connector.

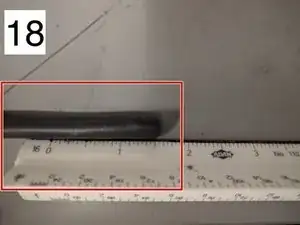

    • 18. Cut 1.5 inches of 2:1 0.25" diameter heat shrink tubing.

    • 19. Use the heat shrink gun to shrink the heat shrink tubing.

  8. JmGEsbhDW3RXOkRM

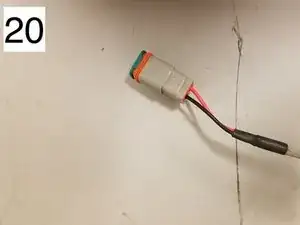

    • 20. This is what the final battery connector looks like.

  9. 6dHKUBCpQjFY3ZDG
    6dHKUBCpQjFY3ZDG
    6NbLBbOGMdPrNKOU
    bttbRAmSKcL3p2rb

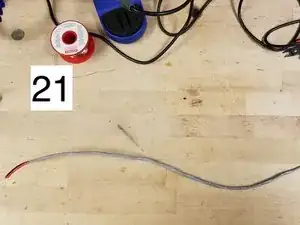

    • 21. Cut 30 inches of red and black 16G wire (grey insulated wire). Strip 2 inches of the grey rubber coating from both ends.

    • 22. Strip 0.5 inches from both the red and black wires from both ends.

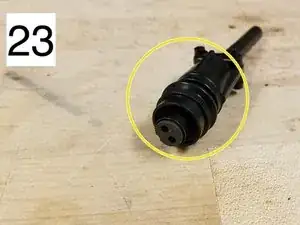

    • 23. Obtain a 2-pin amphenol connector.

  10. VRoICtO64O2GNGSn
    VRoICtO64O2GNGSn
    EkGaZFLBIUfBANdN
    ZEQsE2lrSBvuEbRv

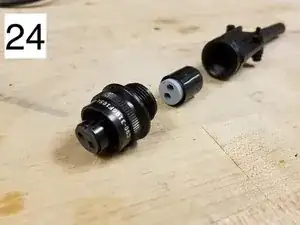

    • 24. Disconnect the 2-pin amphenol connector into its individual parts.

    • 25. Loosen the screws on the amphenol connector. Thread the stripped wire through the end of the amphenol connector and through the middle piece of the amphenol connector.

    • The black GND wire should be in the “A” port and the red PWR wire should be in the “B” port.

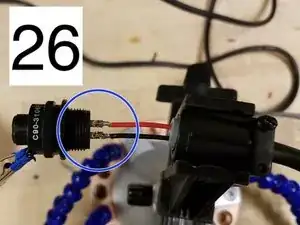

    • 26. Solder the wires to the other end of the amphenol connector.

    For future reference, might want to add that assuming the black wire is GND, it should be in the “A” port, and the red in the “B” port.

    Sara Rimer -

    Done. Thanks! :)

    Brooke Mason -

  11. ShmY6frFpU6ByIt4
    ShmY6frFpU6ByIt4
    R12hBKhKhvkKDLXW
    TNcJLyFC2wjxONBI

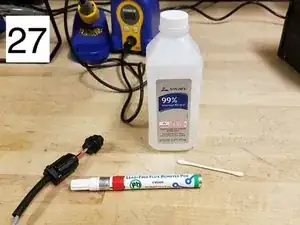

    • 27. Obtain a Flux Remover Pen, 99 % Isopropyl Alcohol, and a Q-Tip.

    • 28. Use the pen to remove the flux from the soldered pins.

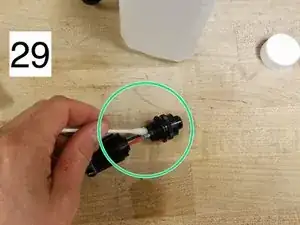

    • 29. Dip the q-tip in the alcohol. Use the q-tip to remove the flux remover.

  12. EZ2YOCZSLYnNIjZY
    EZ2YOCZSLYnNIjZY
    wuhhOTUd5rephdDu
    BPMOkLIxbtIp46AD

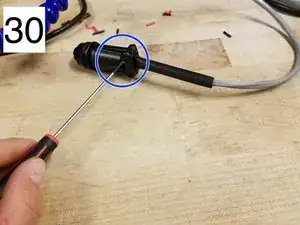

    • 30. Screw the amphenol pieces back together. Then tighten the external screws.

    • 31. This is what a final 2-pin amphenol connector looks like.

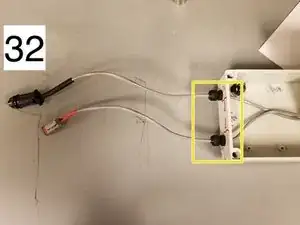

    • 32. Thread the 2-pin amphenol autosampler wire through the top hole and the battery connector wire through the bottom hole of the enclosure box. Leave about a foot of each on the outside of the box. Tighten the glands.

    • Once 2 pin and battery wires constructed and threaded into box, strip opposite ends and add heat-shrinking quick disconnect terminals.

  13. M2TaJkUReNPUS6Wl
    M2TaJkUReNPUS6Wl
    BXyGZPARlWFohbME
    pus2VNee2HB6NGM4

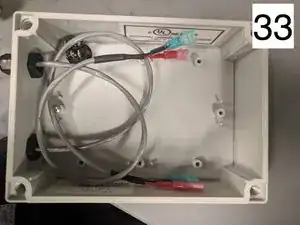

    • 33. This is what the wires look like threaded through the glands in the box.

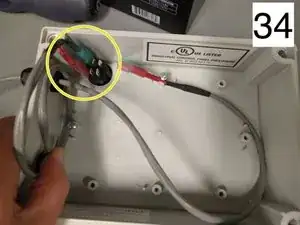

    • 34. Connect the battery wire to the first two prongs of the rocker switch.

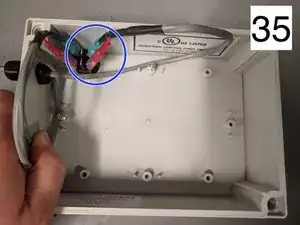

    • 35. Connect the 2-pin amphenol autosampler wire to the last two prongs of the rocker switch.

  14. vRQqwcEK5MHOTFfh
    vRQqwcEK5MHOTFfh
    weffVcL53TnXpetw
    5gPwg4BmMIMXBWI5

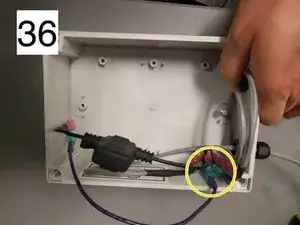

    • 36. Connect the purple wire and fuse wire to the middle two prongs of the rocker switch.

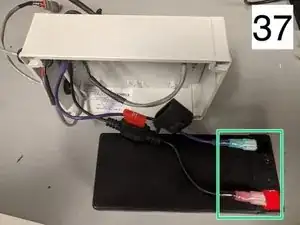

    • 37. Connect the other side of the purple wire and fuse wire to a 12 volt battery.

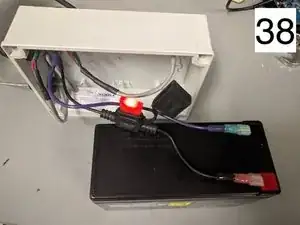

    • 38. A light goes on if the fuse is blown!

  15. tHW4CEYpjrGqQRKS
    tHW4CEYpjrGqQRKS
    GmSfvvqYpbfHdJmb
    MxrBFeGcpP2R3F4L

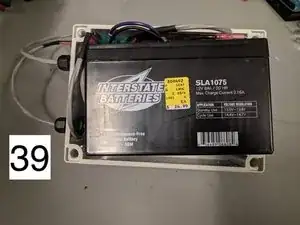

    • 39. Place the 12V battery and all the wires into the enclosure.

    • 40. Screw the lid onto the enclosure.

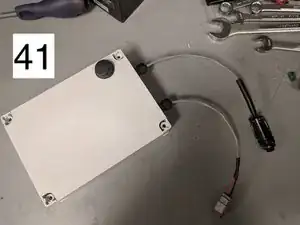

    • 41. This is what the completed battery enclosure looks like.

  16. VSI2dgIIPIPVPyLi

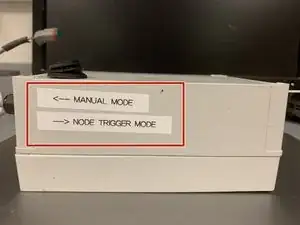

    • Label the switch with the label maker.

    • <-- Manual Mode

    • --> Node Trigger Mode
