Einleitung

  1. wInjvL2CyIKDywIx
    wInjvL2CyIKDywIx
    Pe6DsQm5XuhUZDxj

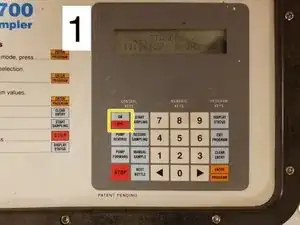

    • 1. Turn on the autosampler. Screen will read "...STANDBY..."

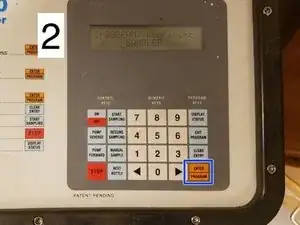

    • 2. Press "ENTER/PROGRAM" button. Use arrows to highlight "CONFIGURE". Press "ENTER/PROGRAM" button

    • This will allow you to use the arrows to shuffle through the different configuration options. To select the one you want, press the "ENTER/PROGRAM" button.

  2. WU5ZVS2DeFoVZvmi

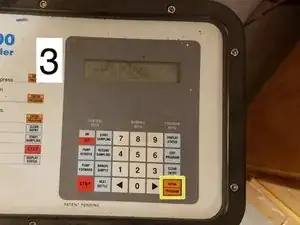

    • The first option for configuring is "SET CLOCK"

    • 3. Press "ENTER/PROGRAM" to "SET CLOCK". Use the numeric keys to set the time and date. You can use the arrows to move. When finished. Press "ENTER/PROGRAM" button.

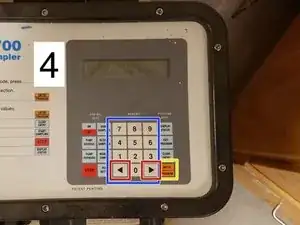

  3. OP2P6WbWcAFh5WHj
    • 4. Press "ENTER/PROGRAM" to configure "BOTTLES AND SIZES".

    • Use arrows to select "PORTABLE" sampler. Press "ENTER/PROGRAM" to configure bottles and sizes.

    • Use arrows to select "24" botles. Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "1000" mL for the "BOTTLE VOLUME". Press "ENTER/PROGRAM" button.

  4. JSgB6EFcsmDbbPMg
    • 5. Press "ENTER/PROGRAM" to configure "SUCTION LINE".

    • Use arrow to select "3/8" inch for "SUCTION LINE I.D." Press "ENTER/PROGRAM" button.

    • Use arrow to select "VINYL" for "SUCTION LINE" type. Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "25" feet for "SUCTION LINE LENGTH". Press "ENTER/PROGRAM" button.

    • The suction line length may change based on location and should be measured!

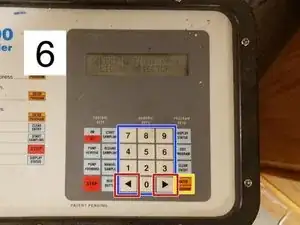

  5. 6cQ2VdyHtrCfoyJU
    • 6. Press "ENTER/PROGRAM" button to configure "LIQUID DETECTOR".

    • Use arrows to select "ENABLE" "LIQUID DECTOR". Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "3" "RINSE CYCLES." Press "ENTER/PROGRAM" button.

    • Screen will read "ENTER HEAD MANUALLY?" Use arrows to select "NO". Press "ENTER/PROGRAM" button.

    • Screen will read "RETRY UP TO X TIMES WHEN SAMPLING?" Use numeric keys to enter "3". Press "ENTER/PROGRAM" button.

  6. NHW6g3RwOvgLvqWc

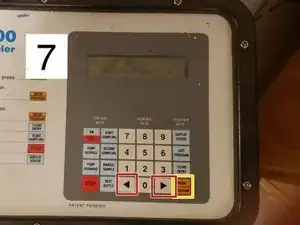

    • 7. Press "ENTER/PROGRAM" to configure "PROGRAMMING MODE".

    • Use arrows to select "BASIC" mode. Press "ENTER/PROGRAM" button.

  7. EiTnyTTCbZOHEuBh

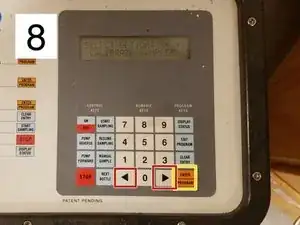

    • 8. Press "ENTER/PROGRAM" to configure "CALIBRATE SAMPLER".

    • Use arrows to select "DISABLE" "CALIBRATE SAMPLER". Press "ENTER/PROGRAM" button.

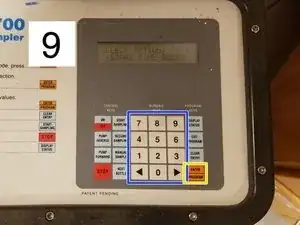

  8. uRSscLLWHefVYdbc
    • 9. Press "ENTER/PROGRAM" to configure "START TIME DELAY". Press "ENTER/PROGRAM" button.

    • Screen will read "X MINUTE DELAY TO START." Use numeric keys to enter "0" minutes. Press "ENTER/PROGRAM" button.

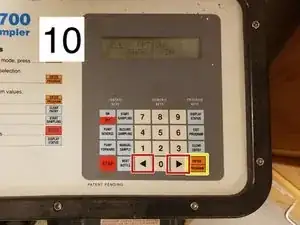

  9. xFtmHtKgAlhsCie6
    • 10. Press "ENTER/PROGRAM" to configure "ENABLE PIN". Press "ENTER/PROGRAM" button.

    • Use arrow to select "NO" for "MASTER/SLAVE MODE?" Press "ENTER/PROGRAM" button.

    • Use arrow to select "NO" for "SAMPLE UPON DISABLE?" Press "ENTER/PROGRAM" button.

    • Use arrow to select "NO" for "SAMPLE UPON ENABLE?" Press "ENTER/PROGRAM" button.

    • Use arrow to select "NO" for "RESET SAMPLE INTERVAL?" Press "ENTER/PROGRAM" button.

    • Use arrow to select "NO" for "INHIBIT COUNTDOWN?" Press "ENTER/PROGRAM" button.

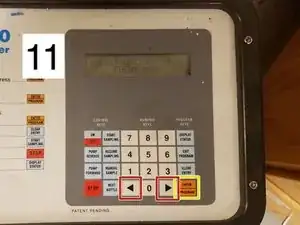

  10. iUcuTWBQZ6al1mDT
    • 11. Press "ENTER/PROGRAM" to configure "EVENT MARK". Press "ENTER/PROGRAM" button.

    • Use arrow to select "CONTINUOUS SIGNAL". Press "ENTER/PROGRAM" button.

    • Use arrow to select "PUMP CYCLE". Press "ENTER/PROGRAM" button.

    • It is critical this setting is configured in order for the sensor node to operate the autosampler!

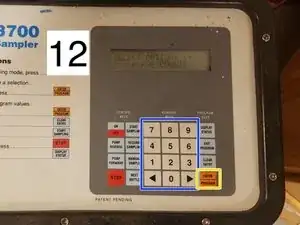

  11. 5geoLlL3d1LPPYp3
    • 12. Press "ENTER/PROGRAM" to configure "PURGE COUNTS". Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "XX" for "PRE-SAMPLE COUNTS". Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "XX" for "POST-SAMPLE COUNTS". Press "ENTER/PROGRAM" button.

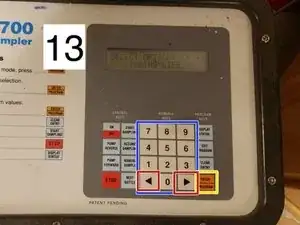

  12. OWDVNFbAIhsjVWjH
    • 12. Press "ENTER/PROGRAM" to configure "TUBING LIFE". Press "ENTER/PROGRAM" button.

    • Screen will read "X PUMP COUNTS, WARNING AT XXX000". Press "ENTER/PROGRAM" button.

    • Use arrows to select "NO" for "RESET PUMP COUNTER?". Press "ENTER/PROGRAM" button.

    • Use numeric keys to enter "XXX000" for "PUMP COUNTS TO WARNING". Press "ENTER/PROGRAM" button.

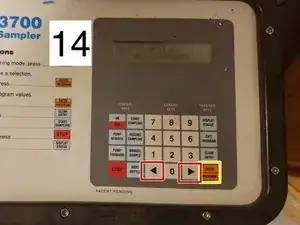

  13. xYGIBmKV4UQpgGxY
    • 13. Press "ENTER/PROGRAM" to configure "PROGRAM LOCK". Press "ENTER/PROGRAM" button.

    • Use arrows to select "DISABLE" "PROGRAM LOCK". Press "ENTER/PROGRAM" button.

  14. X3uVsXSOZp4yOEWU

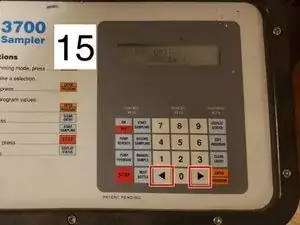

    • 15. The next configuration option is "SAMPLER ID". Skip this configuration step by using the arrows.

  15. EtF6HDCOdQ11tFrI

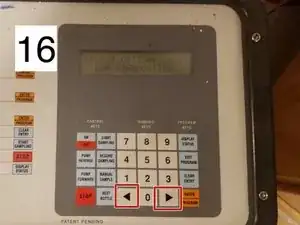

    • 16. The next configuration option is "RUN DIAGNOSTICS". Skip this configuration step by using the arrows.
