Autosampler Configuration for Node Control (For Old & New Versions)

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

  1. CtjNEqlBuHE2sqkf
    CtjNEqlBuHE2sqkf
    aYSPmrpaXDqhi2YX
    eLOapRUjWySSeZoO

    • 1. Turn on the autosampler. Screen will read "...STANDBY..."

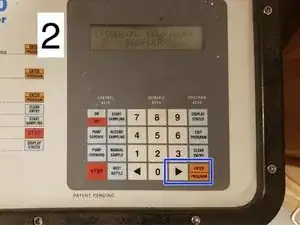

    • 2. Press "ENTER/PROGRAM" button. Use arrows to highlight "CONFIGURE". Press "ENTER/PROGRAM" button

    • This will allow you to use the arrows to shuffle through the different configuration options. To select the one you want, press the "ENTER/PROGRAM" button.

    • 3. Use arrows to find "EVENT MARK". Press the "ENTER/PROGRAM" button.

  2. G2YFHV5tmxiJExfQ
    G2YFHV5tmxiJExfQ
    CqUS3G2KTadpHXyL
    ulj2wMfhDuFspZiV

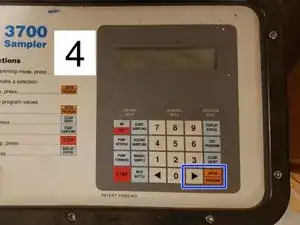

    • 4. Use arrow to select "CONTINUOUS SIGNAL". Press "ENTER/PROGRAM" button.

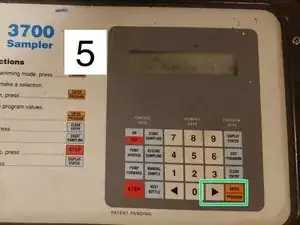

    • 5. Use arrow to select "PUMP CYCLE". Press "ENTER/PROGRAM" button.

    • It is critical this setting is configured in order for the sensor node to operate the autosampler!

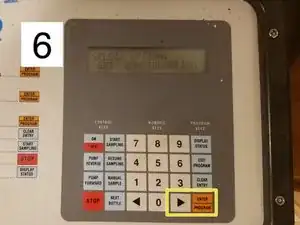

    • 6. Use arrows to find "EXIT CONFIGURATION." Press "ENTER/PROGRAM" button. This will bring up the screen "...STANDBY...
