Users will gain knowledge in wiring environmental sensor nodes.

  1. 6L61bgIGYHVM1W6R
    6L61bgIGYHVM1W6R
    aic4KepsNSJxpHqI
    CbUVY5ZZfkYXqDHO

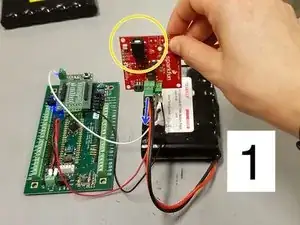

    • 1. Disconnect the plug to the solar panel.

    • Then, grabbing the green connector, pull the battery connector from the solar charge controller (blue arrow).

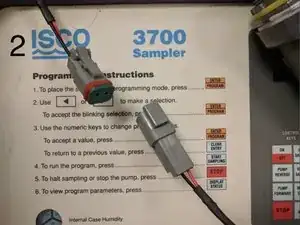

    • 2. Disconnect the plugs for the autosampler battery.

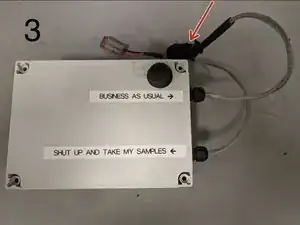

    • 3. Disconnect the connector that plugs into the battery port of the sampler.

    • If disconnect battery before solar panel, this can damage the solar charger!

  2. WAJxMLdwuTKTqEHp
    WAJxMLdwuTKTqEHp
    eKDLVlxoRapBA1XF
    • 4. Unscrew conduit and release to open up more space to work with.

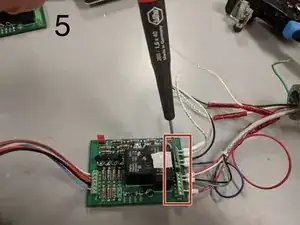

    • 5. Unscrew existing wires using 260 / 1.5 x 40 flathead screwdriver.

  3. HOi4d2HWeEwyyXh4

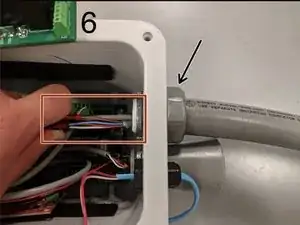

    • 6. Pull the autosampler and battery wires through the conduit. Reattach the conduit to provide strain relief and prevent wires from being dragged down.

  4. UYNGL5a6ITeKh2Eh
    UYNGL5a6ITeKh2Eh
    Iq5S1KjeGXVxrLsZ
    yUxAZS3qyVIjq6Q3

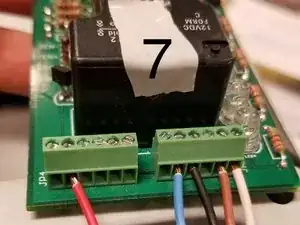

    • 7. Insert the wires and screw down using 260 / 1.5 x 40 flathead screwdriver until tight.

    • We do not use the green wire.

    • Hand tight is just right. Be careful not to over-tighten and crush the wire ferrules

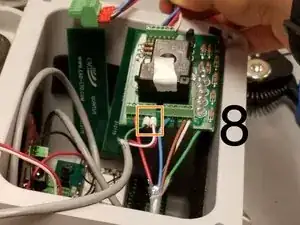

    • 8. The battery connectors go in the fifth and sixth positions from the left.

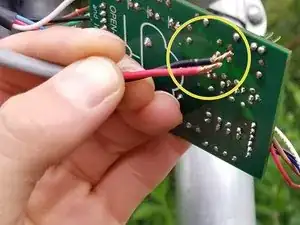

    • If the battery connectors do not have the white caps, they will be only one red and one black wire. To make it easier to connect to the board, trim half of the copper wires off of each wire. and twist the reaming threads together. The red wire goes in the place where the red/white cap goes and the black wire goes where the black/green wire goes.

  5. v1RAvdxi5NCeQ5xs

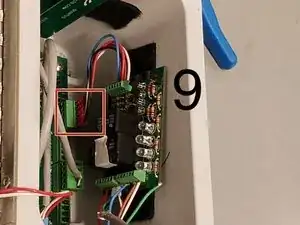

    • 9. Plug in the pluggable header into the board.

  6. fhQqrQMkU4evEdul
    fhQqrQMkU4evEdul
    kQgYPHLWTjgvBmv6
    yWVg3QrAsDGOxBFO

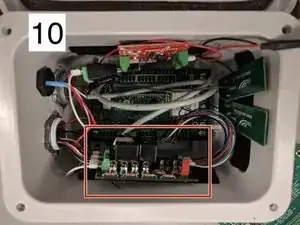

    • 10. Using velcro, re-secure the relay board to the side of the enclosure.

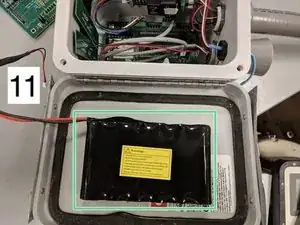

    • 11. Using velcro, attach the lithium ion battery to the inside of the enclosure door.

    • Be sure to clean the surfaces beforehand.

    • Be sure the soft side is attached to the enclosure.

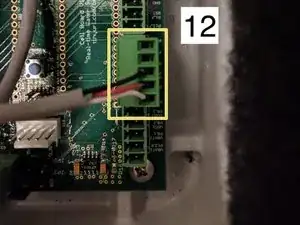

    • 12. In case the wiring of an ultrasonic sensor comes loose, here is the wiring.

  7. UZZpNX2mGsvVyLQQ
    UZZpNX2mGsvVyLQQ
    PvUlMWKFVDFLtYEs

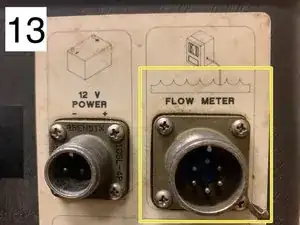

    • 13. Reconnect the 6-pin autosampler connector.

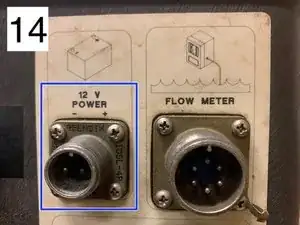

    • 14. Reconnect the 2-pin autosampler battery to the autosampler.

  8. QGCpdUMEZS2eVQ6H
    QGCpdUMEZS2eVQ6H
    ANlywEAirYSPylk6
    LUqFnQGW5DhDVO2d

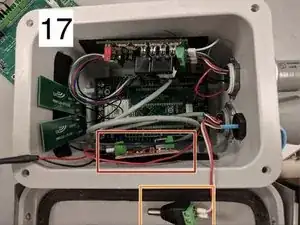

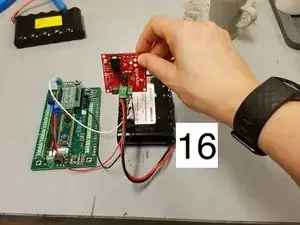

    • 15. Reconnect the grey autosampler connector from the autosampler to the node.

    • 16. Reconnect lithium ion battery in the node.

    • 17. Plug in the solar panel into the solar charger last.

Abschluss

Now we can close and lock up the enclosure. The node is ready to test and confirm everything is working,
