Autosampler Programming (For Old & New Versions)

Geschrieben von: Brooke Mason
  • Kommentare: 0
Autosampler Programming (For Old & New Versions)

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

  1. SSWXAANbGkZcvgOE
    SSWXAANbGkZcvgOE
    NG5n1MMJgHEqItqD

    • 1. Switch battery "ON".

    • 2. Autosampler: Push "ON" button.

    • It will say ...STANDBY...

  2. SS1KpMVB6RYR6Ivp
    SS1KpMVB6RYR6Ivp
    SehGmiybewmeCTC4

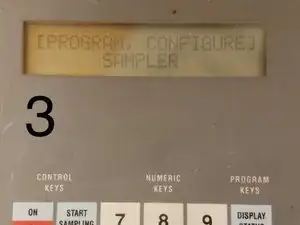

    • 3. Push "ENTER/PROGRAM" button to see the "[PROGRAM, CONFIGURE] SAMPLER" screen. Push “ENTER/PROGRAM” button to select "PROGRAM".

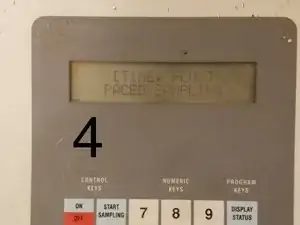

    • 4. This will bring up the "[TIME, FLOW] PACED SAMPLING" screen. Use arrow to select "FLOW" then push “ENTER/PROGRAM” button.

  3. PedxxjnvpcNRUIOh
    PedxxjnvpcNRUIOh
    EDpXDoLPwKv3a44I
    1G3WjtVtANpLeiVe

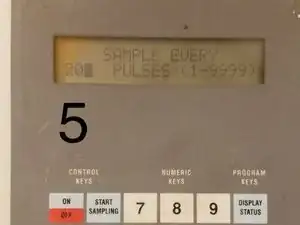

    • 5. New screen shows: "SAMPLE EVERY __ PULSES." Press 20. Then push the “ENTER/PROGRAM” button.

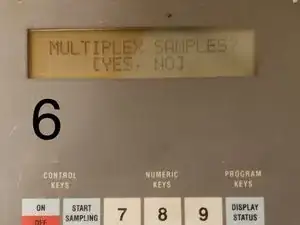

    • 6. New screen will read: "MULTIPLEX SAMPLES?" Use arrow to select "NO". Then push the “ENTER/PROGRAM” button.

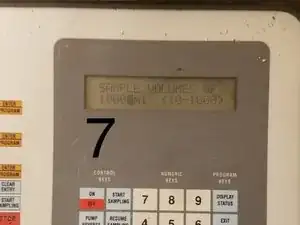

    • 7. New screen will read: "SAMPLE VOLUMES OF "____" ML". Press 1000. Then push the “ENTER/PROGRAM” button.

  4. rAGyiDqJQqtYEBTL
    rAGyiDqJQqtYEBTL
    kRXTIayfRyNTeert
    xjdOaO6xI6VA15Gk

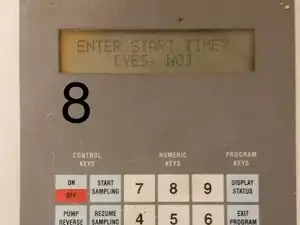

    • 8. New screen will read: "ENTER START TIME?" Use arrow to select "NO". Then push the “ENTER/PROGRAM” button. New screen: "PROGRAMMING SEQUENCE COMPLETE...". Then screen will read: "PROGRAM HALTED".

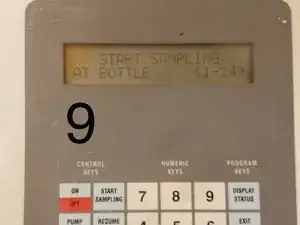

    • 9. Push "START SAMPLING" button. Screen will read: "[START, RESUME] SAMPLING PROGRAM?" Push "ENTER/PROGRAM" button to "START". Then push "ENTER/PROGRAM" button again to "START SAMPLING AT BOTTLE 1".

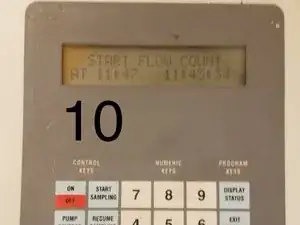

    • 10. Then should see on screen: "START FLOW COUNT AT __:__" (time).

    • It will take some time before it starts sampling.

    • Eventually screen will show: " BOTTLE 1 AFTER 20 PULSES".
