Autosampler Reset for Node Triggered Sampling (For Old & New Versions)

Geschrieben von: Brandon Wong
  • Kommentare: 0
Autosampler Reset for Node Triggered Sampling (For Old & New Versions)

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

  1. LMivYWdmJVUQd6iU
    LMivYWdmJVUQd6iU
    eGOUrhbFJIRLrnNU

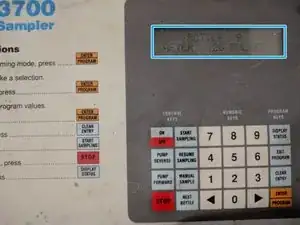

    • To enable manual mode, flip the switch to "Manual Mode"

    • LCD screen will turn on

  2. yfOXJ1hZwH6YbNaB
    yfOXJ1hZwH6YbNaB
    ihZpxKsYkPSTZR1u

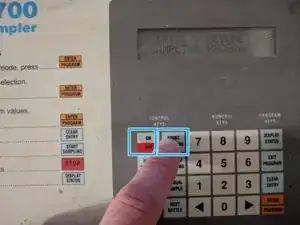

    • Press On then press Start Sampling

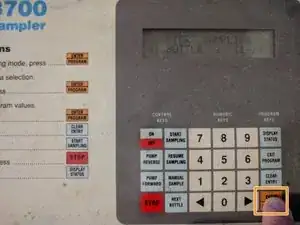

    • Press Enter

  3. vfV5sfXKXsHJlKry
    vfV5sfXKXsHJlKry
    xpcSDA3eBEHP1oru
    FJoJ2rOdPJpw5GQs

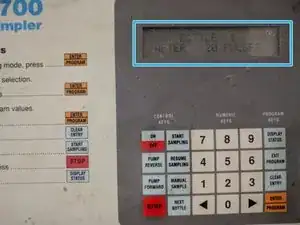

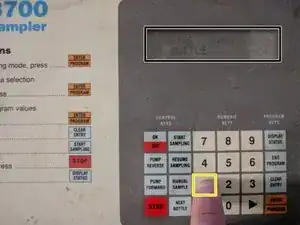

    • Press the number of the bottle you want to sample on

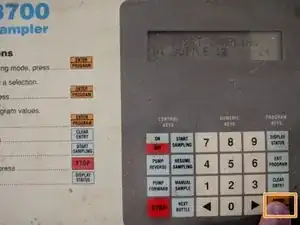

    • Press Enter

    • LCD should now show which bottle it will take a sample in

  4. REKGBL5QcnJTkIIT
    REKGBL5QcnJTkIIT
    y3Oc2CJ2vHEd6BDZ

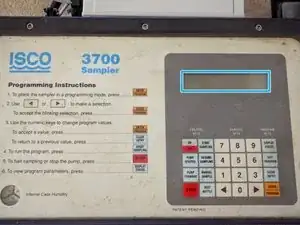

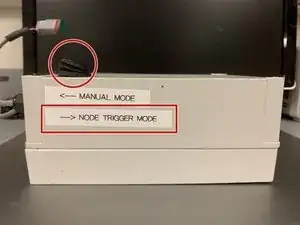

    • To enable autonomous mode, flip switch to "Node Trigger Mode"

    • LCD should turn off

    • If the autosampler is to be remotely triggered, avoid using the ON/OFF button to power off the sampler.

Abschluss

Now the sampler is ready to be triggered remotely by an open-storm sensor node.
