AvertX HD810 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

35 - 40 Minuten

Einleitung

This guide provides steps to remove the AvertX HD810's 4MP (mega pixel) camera's motherboard for replacement. It's important to have the camera turned off and unplugged for this operation.

  1. JhDLhO2FWNoxXYnV
    JhDLhO2FWNoxXYnV
    giL1lkqVXFJPfOXG
    s1g3En5PqmBva3k1

    • Lift off the paintable snap-on cover from the AvertX HD810 dome security camera.

    • Optimally, the device should be turned off and the PoE (Power over Ethernet) unplugged.

  2. 5ZWEL3VhISQHUsKn
    5ZWEL3VhISQHUsKn
    eWCSMCpNuFXZBSj3

    • Loosen both 10mm screws on either side of the clear dome cover housing using a T10 Torx security screwdriver.

    • It is not recommended to remove the screws from the clear dome cover housing. The screws are apart of the cover and not intended to come out.

  3. jEsVy4SqefG2RWWJ
    jEsVy4SqefG2RWWJ
    VsYdICH5FFFuVHo2
    IXvwHk5U5hEgjdwR

    • Gently pull off the clear dome cover from the camera base.

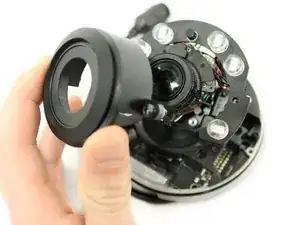

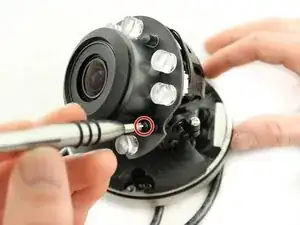

  4. L6eMLx656PV3kfN4
    L6eMLx656PV3kfN4
    VqdWFOhZoDFoMBXu
    XHlZS5wlIXnc4PZH

    • Use the PH1 screwdriver to remove or loosen both 10mm screws on either side of the inner protective lens cover. This will loosen both the cover and the IR LED lightboard.

    • The cover and the lightboard are two separate pieces held in place by these two screws. The cover should be set aside first before continuing with the lightboard.

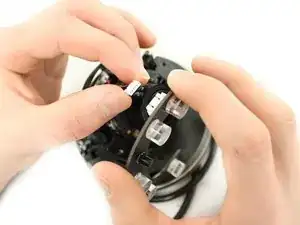

  5. bRVwV4dBHKXAGJQR
    bRVwV4dBHKXAGJQR
    6l4NSOPkUCefvwiP
    mMQVaOYv6n41CQlY

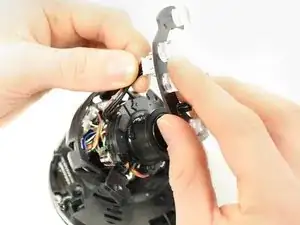

    • Pull the IR LED light board gently away from the camera to expose the connecting cable.

    • Firmly but gently detach the IR lED light board from its cable connector by pulling directly away from the connection port.

    • A spudger may be used to loosen a stubborn cable connection. Wedge the flat end of the spudger between the connector and the port to ease it off of the port's prongs.

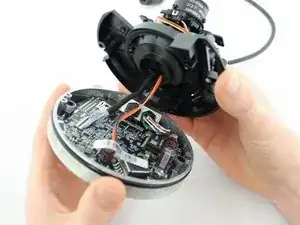

  6. dPLOcoWACwDXYlCD
    dPLOcoWACwDXYlCD
    iVsxGoEMrxtyjoax
    GDTabXXNI4PDKJGg

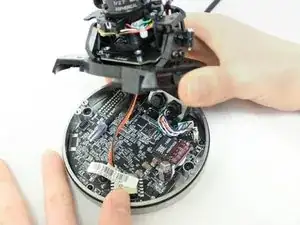

    • Using a PH1 screwdriver, remove the two 8mm screws holding the plastic base to the metal base of the camera.

    • Be sure to keep track of your screws and washers. Using the correct Phillips Head screwdriver will help prevent stripping the screws.

    • Careful when lifting the plastic base away from the metal base. There are two chords that may be damaged if pulled on.

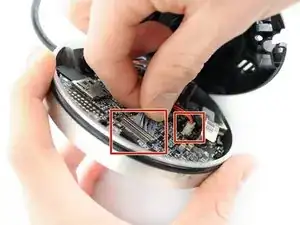

  7. wWF1SGPxiaUIAl3b
    wWF1SGPxiaUIAl3b
    syTVriYmqRsvaQpr
    eH2ugHBtkEnbgYoB

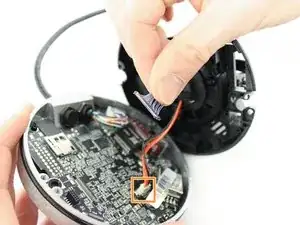

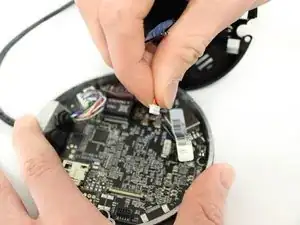

    • Disconnect the two cables from the camera base motherboard by gently but firmly pulling directly away from their respective ports.

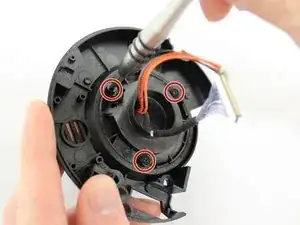

  8. E51UgZR6XilMTBeu
    E51UgZR6XilMTBeu
    ufrQyVDdLkY5eFAf
    QbMRAwoCKpmZFsb3

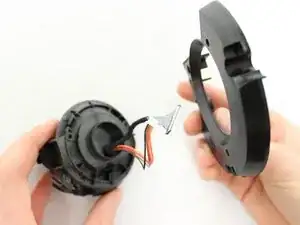

    • Remove the three 6mm screws with a PH1 screwdriver. These hold the camera's plastic housing to the plastic part of the camera base.

    • Do not lose the wide washers. Each of these screws have wide washers to keep the plastic housing in place during assembly.

  9. oeCq4xf6nTTWVX1X
    oeCq4xf6nTTWVX1X
    XJuQZpDXXhwkRGOp

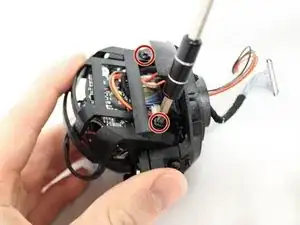

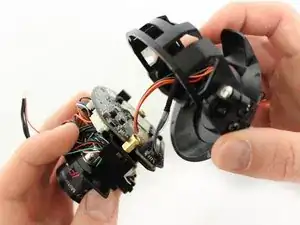

    • Gently tilt the camera forward in the cradle of the camera housing to get access to the two 10m screws.

    • Use a PH1 screwdriver to remove the two 10mm screws.

    • Pull away the camera housing once the screws have been removed.

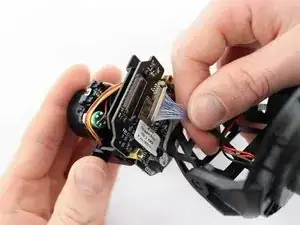

  10. 4yEJsWylM6NIugrA
    4yEJsWylM6NIugrA
    IHTtQQKj3aQqMUZc

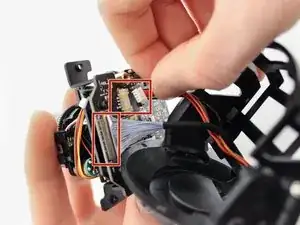

    • Remove the two cables gently but firmly by pulling directly away from their respective ports.

    • The camera housing will always stay attached to these cables. They should not be removed from this housing.

  11. m1e6AQKT2wlCs2NQ
    m1e6AQKT2wlCs2NQ
    jr4Cexy3hbDJDvCX
    axuRtHVPgBoOZG5f

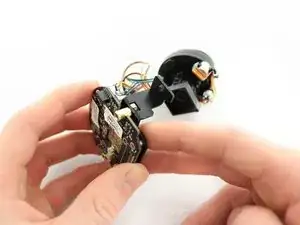

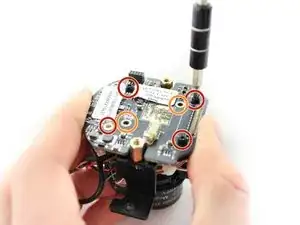

    • Do not use a magnetic screwdriver or drill bits on the camera's motherboard. This can damage the camera's motherboard.

    • Use a PH000 screwdriver to unscrew the four 4mm screws that hold the motherboard to the motherboard housing. These will be the raised screws with safety washers.

    • Use a PH000 screwdriver to unscrew the two 3mm screws that hold the motherboard to the camera. These are smaller screws that have no washers and are not raised.

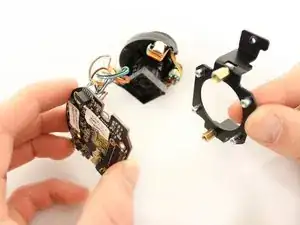

    • Pull the motherboard mounting away from the motherboard after unscrewing the motherboard from the camera.

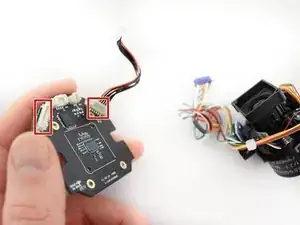

  12. gOXharLxMBJLnxx6
    gOXharLxMBJLnxx6
    iXhC3ud3iAAEDBSm
    ZwFOUyKGIJtAoDDK

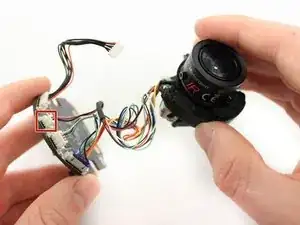

    • Disconnect the three cables from the motherboard by pulling each one gently but firmly away from their respective connections.

    • All of these cables can safely be removed from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
