This guide will be helpful for repairing the speaker if the troubleshooting page recommends that you replace it. This is a necessary step when you have determined no other way to repair your current speaker. Be wary of accidentally damaging other parts of the device when replacing the speaker.
Werkzeuge
-
-

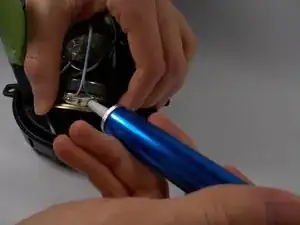

Look at the side of the speaker that has the red interface plate. Using a Phillips head PH1 screwdriver head, remove screws on the top and bottom of the black face plate. There will be one screw on top and one on the bottom.
-
Both screws are 0.55 cm in depth
-
-
-

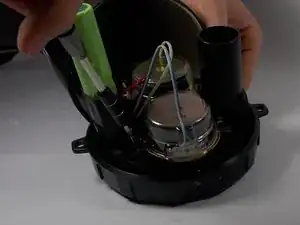

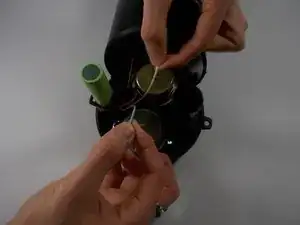

For the top horn replacement, you will be working with the blue and white wire pair.
-
For the bottom horn replacement you with the yellow and white wire pair.
-
-
-

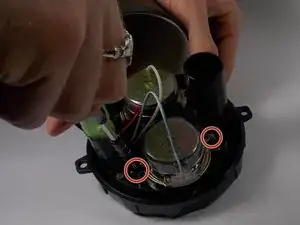

To remove the plastic coating around the desired horn, look on the back of the black face plate you removed and use the philips head ph1 screwdriver fitting to remove the two 0.3 cm Philips Head screw and washer combos on the left and right of the horn.
-
Screw depth of 0.7 cm
-
-
-

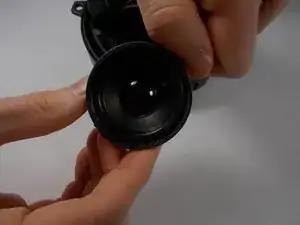

Lift the horn from its fitting by pulling it. Position it in a manner that is easy to work with.
-
-
-
Use a soldering iron to heat the two contact points.
-
Then use a desoldering pump to remove the liquid solder.
-
-
-
Remove the wires--blue or yellow wire depending on the horn you are replacing--from the old speaker and remove the speaker from the fitting location.
-
To reassemble your device, follow these instructions in reverse order.
