Axess TA2513-10WT Camera Replacement

Lay the tablet down on a flat surface with the screen facing up, and the external camera facing upwards and closest to you.

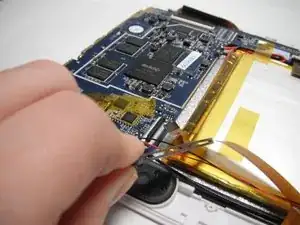

Insert the plastic opening tool in the space between the screen and the back cover above the volume buttons.

Slide the plastic opening tool gently along the sides.

Place the spudger in an open space to keep the back case from shutting while you continue to slide the opening tool.

Remove the back cover with your hands once all points have been unlatched. It should separate completely from the screen that contains the battery and chip components.

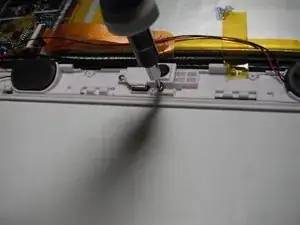

Remove the left screw of the plastic camera casing using the magnetic screwdriver.

Remove the bottom screw of the plastic camera casing with the magnetic screwdriver.

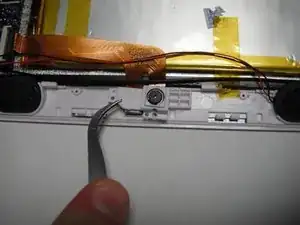

Remove the entire plastic cover using either tweezers or your fingers.

Brush the surfaces of the cameras to remove any debris that is present.

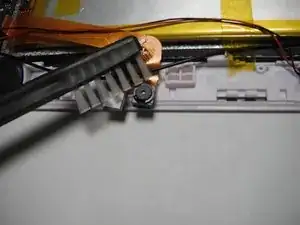

Grasp the black plastic cover that is attached to the ribbon cable, and rotate it 90 degrees upwards using the tweezers.

Remove the ribbon cable from the port.
