Einleitung
In this guide you will find steps on how to remove the speakers from the Axess TA2513-10WT tablet in order to replace them. The guide will show you how to access the tablet's circuit board, identify the right and left speakers, and how to remove the speakers from the circuit board.
Werkzeuge
-
-

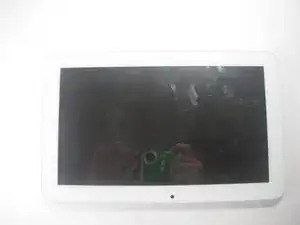

Lay the tablet down on a flat surface with the screen facing up, and the external camera facing upwards and closest to you.
-
-
-

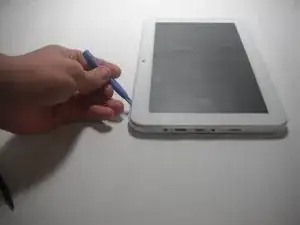

Insert the plastic opening tool in the space between the screen and the back cover above the volume buttons.
-

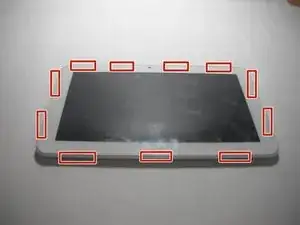

Slide the plastic opening tool gently along the sides.
-
-
-
Place the spudger in an open space to keep the back case from shutting while you continue to slide the opening tool.
-
-
-

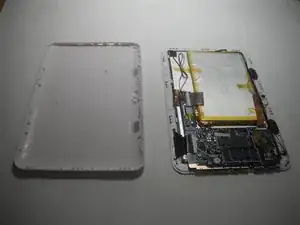

Remove the back cover with your hands once all points have been unlatched. It should separate completely from the screen that contains the battery and chip components.
-
-
-

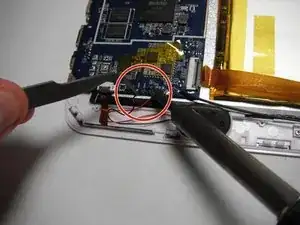

Place the soldering tool on the speaker node labeled "SPKP1" and quickly remove the red wire with tweezers.
-
-
-

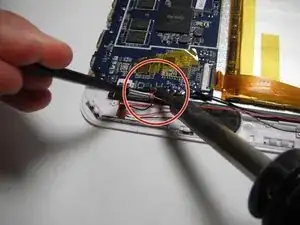

Place the soldering tool on the speaker node labeled "SPKN1" and quickly remove the black wire with tweezers.
-
-
-

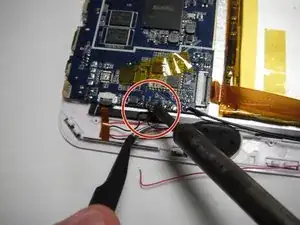

Place the soldering tool on the speaker node labeled "LP" and quickly remove the black wire with the tweezers.
-
-
-
Place the soldering tool on the speaker node labeled "LN" and quickly remove the red wire with tweezers.
-
To reassemble your device, follow these instructions in reverse order.
