BLACK and DECKER BDERO100 Hook and Loop System Replacement

Geschrieben von: Christian Moss
  • Kommentare: 3
BLACK and DECKER BDERO100 Hook and Loop System Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide provides information on how to remove and replace the hook and loop system of the BLACK and DECKER BDERO100 5 inch sander. The only tool that you will need for this process is the JIS - J1 bit or equivalent.

  1. HVr4OSaNnWbTkNxq

    • Remove the sanding paper from the velcro.

  2. m43WmetVWWCtm2Aq

    • Select the JIS - J1 bit or the most appropriate bit to match the screws for your model.

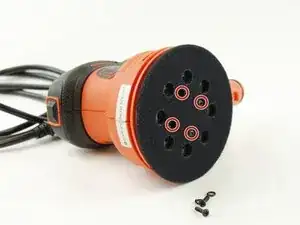

  3. AFeqg5hBJZaHmLJA
    AFeqg5hBJZaHmLJA
    DSOlqnSamIKYQoR1

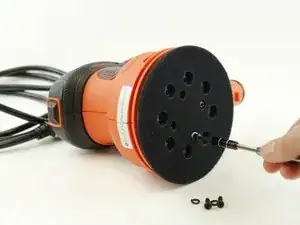

    • Use the Bit Driver to take off the four 12.5 mm Phillips screws at the base of the hook-and-loop system.

    • Be careful not to lose the lock washers (black rings).

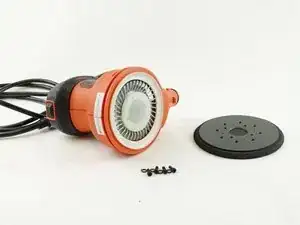

  4. kwWND5sMmOW6PdWd
    kwWND5sMmOW6PdWd
    XUO2fUBM3FJ1UqXX

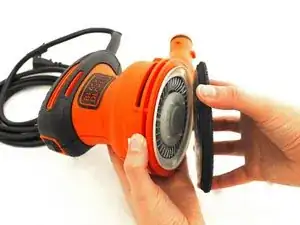

    • Once all screws and washers have been removed, hold the hook and loop system and separate it from the device.

    Where can I find the right pad for this model?

    mymommaluvsjesus -

    Where can i find the white rubber that is under the loop system, it is broken

    Tanya -

    I need the white rubber seal, does anyone know the parts number?

    Michael Holliness -

Abschluss

To reassemble your device, follow these instructions in reverse order.
