BLU Advance 4.0 Charger Port Replacement

With the back camera on the top side and facing you, find a notch on the bottom right side of the phone.

Unclip the cover by raising it up from the notch and sliding a flat rigid tool along the edge.

Remove the battery.

Remove 3 screws from each side with a Phillips 00 screwdriver.

Unclip the screen by sliding a flat rigid tool between the black and the blue side-band.

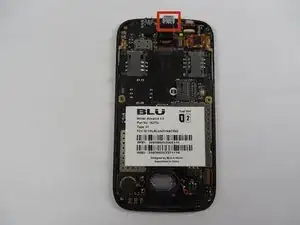

Pop off the blue side-band to be exposed to the motherboard.

Remove 2 black plastic buttons from each side, exposing metallic padding.

Gently pry the metallic padding off the motherboard with a flat rigid tool.

Carefully separate the clip-on tabs while lifting the motherboard away from the screen.

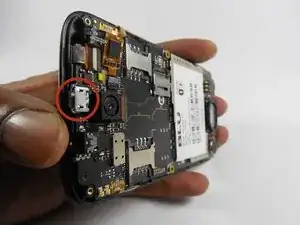

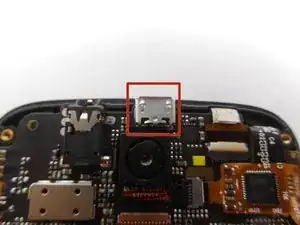

Once phone is completely disassmbled, you will take your soldering iron to the charger port to remove it.

Once the old charger port is removed, take the new one and place it in the same spot. You will need to solder this piece to ensure that it stays connected.
