BLU Dash JR D140 Digitizer Replacement

Geschrieben von: Nathanael
  • Kommentare: 0
BLU Dash JR D140 Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

Screens on these phones can crack easily, using this guide you can have a clean brand new slick look again! It is also a nice way to get under the screen and remove dust particles.

  1. AGuZT3rVOj453xna

    • Turn off the phone first. Press the power button continuously for 2-3 seconds to shut down the phone.

    • Using a plastic opening tool, pry open the back cover from the slit on the bottom right corner of the phone.

  2. 4VqGLdIDbCSTQlRM

    • Using a plastic opening tool or finger, pull out the battery.

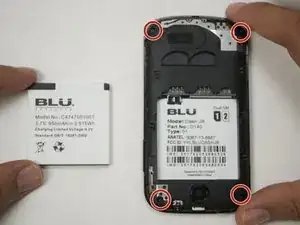

  3. L1B5scaIbA6QRBiM

    • Remove the four 4.0mm Phillips #1 screws.

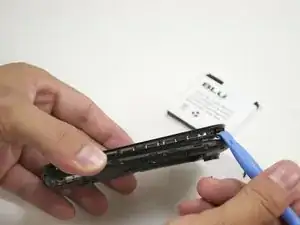

  4. mQrcvlmjSGBPs46h

    • Starting from a corner, separate the panel from the frame using the plastic opening tool.

    • The volume button will pop out.

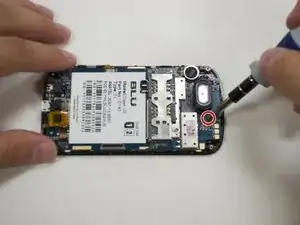

  5. uYKtTwrm2HuFQuxD

    • Unscrew the 3.6mm Phillips #0 screw from the motherboard.

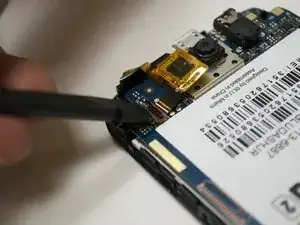

  6. JcVkjLtIMCdIvCDU

    • Using a spudger, lift the black ZIF connector at the top left corner of the phone.

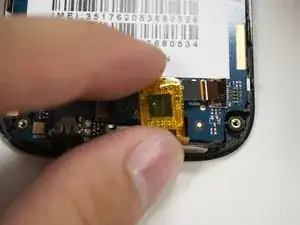

  7. GhHVKJ4u6yHLBffq

    • Pull the ribbon cable out of the ZIF connector.

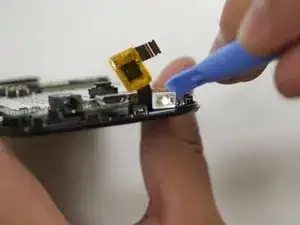

  8. ZKpMuWMVirOcgBpT

    • When the ribbon cable is removed from the ZIF connector, peel off the power, sticky button using a plastic opening tool.

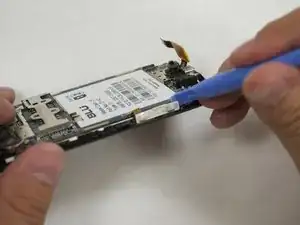

  9. iZWGtwcVmmBaSTFe

    • Peel off the volume sticky button.

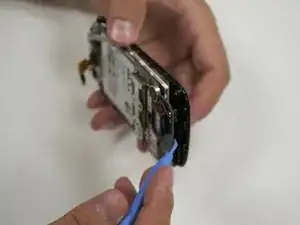

  10. GoVmHqUWBBIREt3C
    GoVmHqUWBBIREt3C

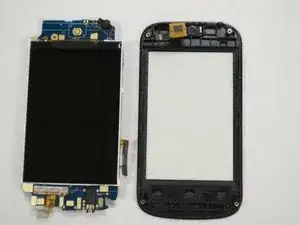

    DQ5C3ua4JLdnGYAR

    • Separate the screen cover from the motherboard using the plastic opening tool. And don't forget that your phone can mess up if u separate the motherboard from the screen cover

    • Make sure that the LCD screen stays attached to the motherboard while doing this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
