If your BLU Dash Music 4.0 screen is damaged in any form, use this guide to replace the screen.

The screen is a display that also serves as input for your device. A scratched or cracked screen can harm user's hands and can obstruct display as well.

Before using this guide, inspect the screen and use a screen cleaner to ensure that it is free of debris. This can also help confirm that the damage is done to the screen itself and the display is not hindered by some superficial dust settling.

Before beginning, make sure to power off your phone completely and disconnect from any external power source.

  1. RIqlCFt2cvPrndKo
    RIqlCFt2cvPrndKo
    jXbA5ALdDCClpjXX

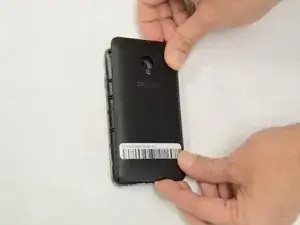

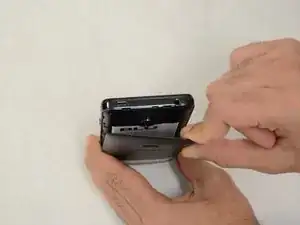

    • User your fingers or a plastic opening tool to remove the back cover.

  2. KiQicab4utlA2YKT

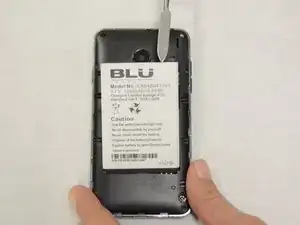

    • Use a spudger to remove the battery.

    • Using the metal spudger can severely damage the inner components of your device, especially the battery. If you accidentally puncture the battery or if the battery starts to swell, follow these instructions to properly recycle your battery.

  3. 2GI4viqMCApFyJCr
    2GI4viqMCApFyJCr
    fuEiRVWEnVLB4pqp

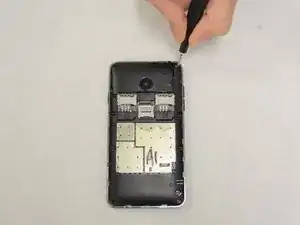

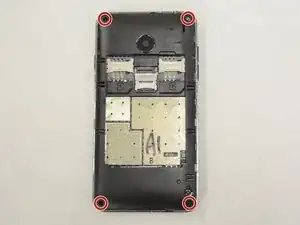

    • Remove four 3mm screws using the Phillips #00 screwdriver.

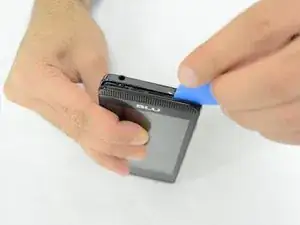

  4. PpaPWHsDrvls2DdF
    PpaPWHsDrvls2DdF
    gBJSGvtMYbIMNPaZ
    ZmKf1wHqqXekBEPJ

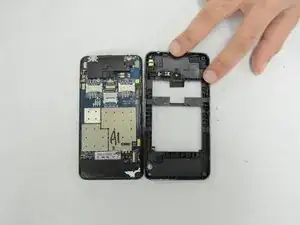

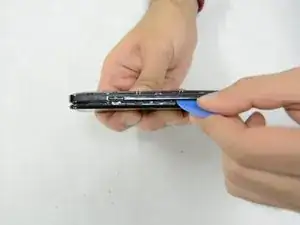

    • Use the opening pick tool to separate the two halves.

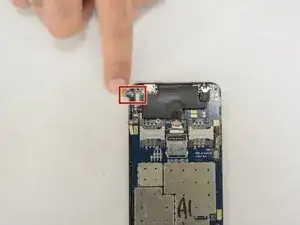

  5. ATCEr2FJXiUj6Pjj
    • Remove the touch screen connector.

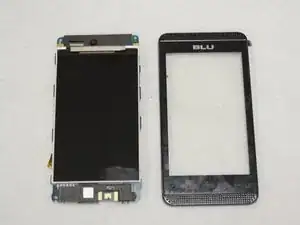

  6. F54DCDK2ZI2eX6Fy
    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
