BLU Dash Music 4.0 Speaker Replacement

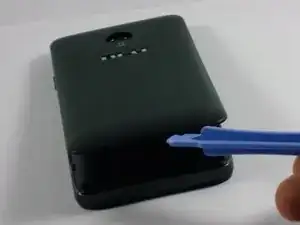

Use the plastic opening tool or your fingernail to pry off the back cover.

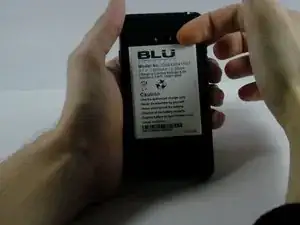

Use the plastic opening tool or your fingernail to pry off the battery from the top right corner.

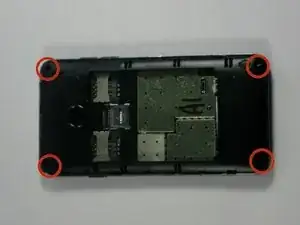

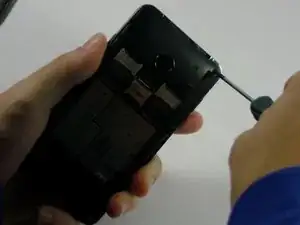

Use a screwdriver to remove each of the four screws.

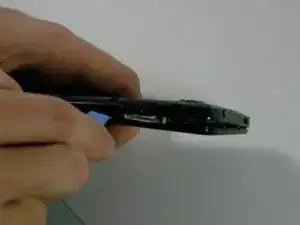

Take the plastic opening tool and insert it in the crease between the front screen and the inner back cover.

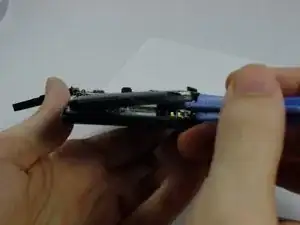

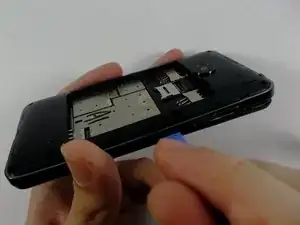

Slide the plastic opening tool along the edge of the phone to pry the covers apart.

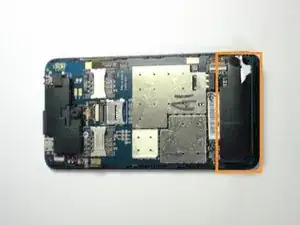

Locate the speaker

Wedge the plastic opening tool between the speaker and the circuit board. Gently pry the speaker off the circuit board.

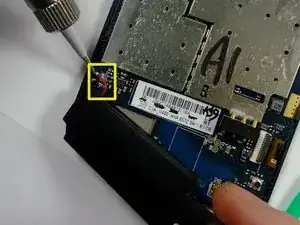

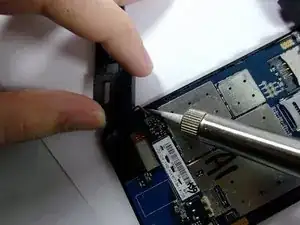

Use a soldering iron to remove the two wires that connect the speaker to the circuit board.

Use the soldering iron to connect the two wires, that are attached to the speaker, to the circuit board.

Place the new speaker onto the circuit board.
