Einleitung

Use this guide to replace the motherboard in your BLU Energy X.

  1. 4ejARRUMgX5VLDNX
    4ejARRUMgX5VLDNX
    YNKasPwusQJXo1hB
    pDCdIJxOcyNtRyQI
    • Remove the back case using plastic opening tool.

  2. IbiZD4TraVsdMYtF
    IbiZD4TraVsdMYtF
    MWILkEE4YnvYoCQp
    • Remove the seven 4mm Phillips #000 screws.

    • Remove the top plate.

  3. Rodd1UG4DtWmnq3X
    Rodd1UG4DtWmnq3X
    xVjq5x4ZNu5JnbSR
    KCG2DVZlpIKadBJZ
    • Detach the battery from the mother board using a plastic opening tool.

    • Use a plastic spudger to remove battery.

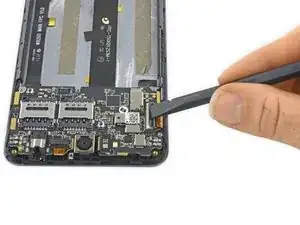

  4. IjbHSdnJd24PxVhs
    IjbHSdnJd24PxVhs
    aPHhHV2AAq6afCjQ
    • Use the flat end of a spudger to flip up the black retaining flap on the ZIF connector.

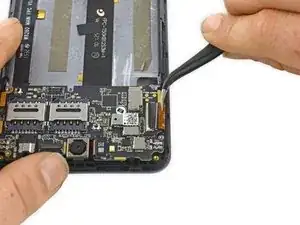

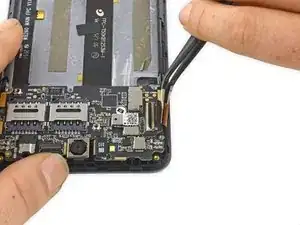

  5. 3ja5BEIeqwJbW1ew
    3ja5BEIeqwJbW1ew
    Pnp4fbX2CxiZLIP5
    • Gently pull the ribbon cable free of the ZIF connector.

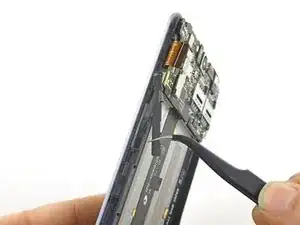

  6. ZVJCdalf2EAwLuYE
    ZVJCdalf2EAwLuYE
    NF2dTRkCMGCWu5jK
    • Gently peel up the antenna.

    • This is secured with some light adhesive, so some force may be required.

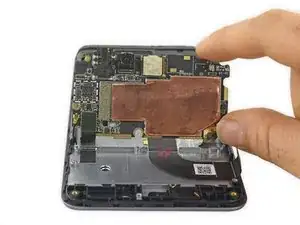

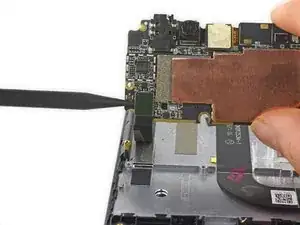

  7. a2E5SDBxeuY54C34
    a2E5SDBxeuY54C34
    Jkstx1uldjXnONh2
    ZEMjZAC6h4MAWMVy
    • Gently rotate the motherboard up so that the front-facing camera is pointed towards you.

    • Use the pointed end of a spudger to disconnect the antenna cable and the ribbon cable.

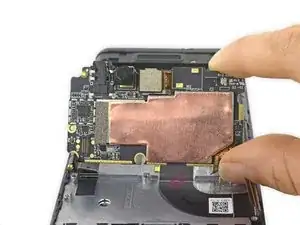

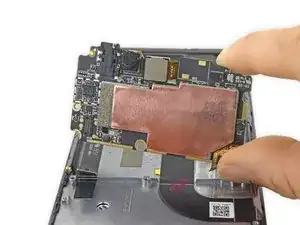

  8. uxFPwyrL5PmF5koo
    uxFPwyrL5PmF5koo
    YHOXpxvVeO4qHVkp
    • Lift the motherboard up and out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
