Einleitung

You may have to replace the screen on your phone due to unforeseen circumstances. Replacing the screen can be difficult, but with these straightforward instructions you will be able to replace the screen of a BLU Energy X Plus very easily. This process only takes one step and it comes after the Battery, Camera, Motherboard and Speaker replacement guides.

  1. Ng5ItjHCNEahIJeJ
    Ng5ItjHCNEahIJeJ
    swgPEiGjaJwOIfBD
    • Before disassembling your BLU Energy X Plus, make sure it is powered off.

    • Flip your device to the left side facing up and take out the SD card tray using the SIM card eject tool. You will insert the tool in at an angle and lift the tray up.

  2. yfkPPJEPFwbiZSDW
    yfkPPJEPFwbiZSDW
    LTWZHVB1aWjPYsvQ
    • Flip your device to the right side facing up and use the SIM card eject tool to remove the SIM card by pushing the tool in the hole. You will feel a button click and the tray should slide out 2mm. You will then use your fingers to pull the tray out.

  3. VXYBSGpbZOQHfTLW
    • Flip your device over so your back cover is facing up.

  4. FWJJEUunrYDWspWm
    FWJJEUunrYDWspWm
    XRuXrmijGBbDXZrN
    • Take the blue plastic opening tool and insert it in-between the back of the phone and the chrome trim. Go all the way around the device slowly to take the back cover off.

  5. y5IZobHK2FjsoQlu
    y5IZobHK2FjsoQlu
    JWlJDfae2XNCHbgX
    • Remove the six silver screws from the cover plate, and one black screw from the top.

    • Use the screwdriver head J000 to remove all the screws.

    • Six silver screws, all 1.5mm in length.

    • One black screw, 1mm in length.

  6. mDelYZYNNtcN66JM
    • After all the screws are out, lift the protective metal cover off of the phone. Lift from the bottom of the cover.

  7. YPvh2UsvAyAEBoJF
    • Use the small blue plastic opening tool to lift the contact attached to the battery from the motherboard of the phone.

  8. V5muAPU3fJqyDSjn
    V5muAPU3fJqyDSjn
    KZSlLgVxyvbSMQHU
    • Use the small blue plastic opening tool to lift the battery from the bottom with little force because the battery will be glued in.

    • Then, use your hand to remove the battery completely.

  9. J56ZUq5TEcmKHOjU
    J56ZUq5TEcmKHOjU
    OC1SXEBxKrAUybRh
    • Disconnect the contact patch using the small blue plastic opening tool.

  10. SwIWPNbLPI3KNqUP
    • Loosen the camera from the glue using the small blue plastic opening tool.

  11. Wy4fMyDomYkGQw3e
    Wy4fMyDomYkGQw3e
    5KnHT3oyBxgURdJQ
    • After loosening the glue from the bottom of the camera, lift the camera out of the phone.

  12. thuoAiP1tdW14gsB
    • Remove the black screw using a screwdriver head J000.

    • One black screw, 1mm in length.

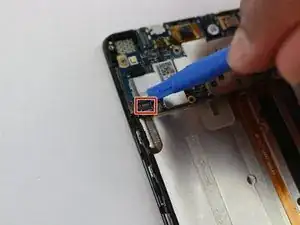

  13. CsyYnjCIB1UxiMdH
    • Lift the black tab on the zero insert force connector on the lower left side of the motherboard using a small blue plastic opening tool.

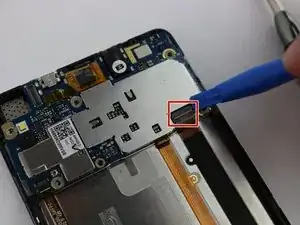

  14. DMODiPh3G35RFAGV
    • Lift the black tab on the zero insert force connector on the lower right side of the motherboard using a small blue plastic opening tool.

  15. CvlSxNPJSBGk2APW
    • Remove the yellow tape that's on the black panel using your fingers.

  16. RwZO3jLxLgZ1Z243
    • Lift the black tab on the zero insert force connector on the top left side of the motherboard using a small blue plastic opening tool.

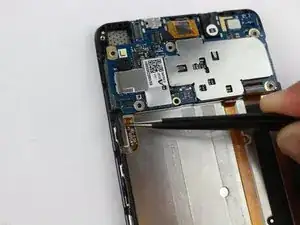

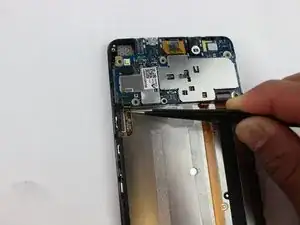

  17. m1GAbHDDcBNjfU5s
    m1GAbHDDcBNjfU5s
    5BbvI6rfpOdMA1XQ
    • Use a fine nose pair of tweezers to pull the ribbon cable from the zero insert force connector with little force to remove the contact connecter from the motherboard.

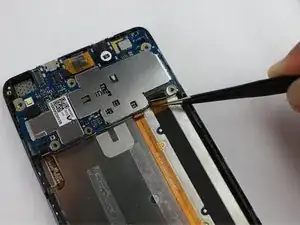

  18. U1tBNFjl5DNiFknS
    U1tBNFjl5DNiFknS
    uXGmQxA4XeLS56B5
    • Use a fine nose pair of tweezers to pull the ribbon cable from the zero insert force connector with little force to remove the contact connecter from the motherboard.

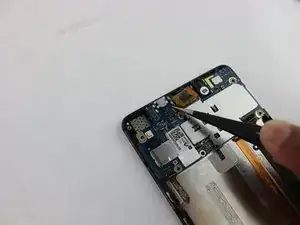

  19. XKVUyHtb32QCCGXR
    • Use a fine nose pair of tweezers to pull the ribbon cable from the zero insert force connector with little force to remove the contact connecter from the motherboard.

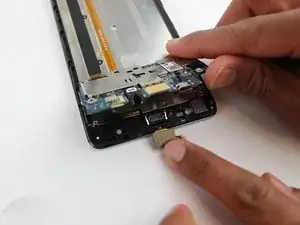

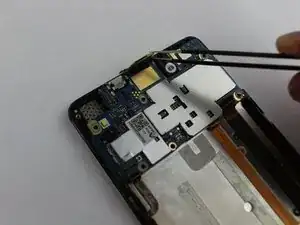

  20. WxxENeW12iS5GXTI
    WxxENeW12iS5GXTI
    JBuHphGGwZQlGnY4
    • Lift the small processor using a pair of tweezers.

    • Then, lift up the motherboard using your hand, lifting from the top of the motherboard.

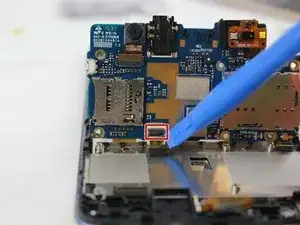

  21. XUMWrSKtEIXbJiTL
    XUMWrSKtEIXbJiTL
    cpYDWxvVdwOe6tOU
    • Remove the zero insert force connector that's on the back side of the motherboard using a small blue plastic opening tool to lift up the black tab. Then pull the motherboard out of the phone.

    • Pull the motherboard vertically to pull the motherboard from the phone. It should still be attached by a wire on the left side.

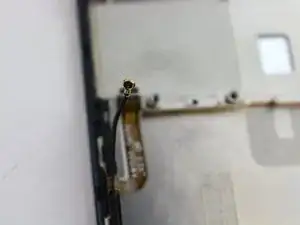

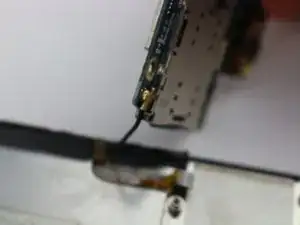

  22. hPRbYDqVIqSKpYww
    hPRbYDqVIqSKpYww
    PsspITZkRpNoCNPS
    BlXQDqjHS6POPt21
    • Remove the connector wire from the motherboard using your finger nails. You will need to pull from the gold colored connecter, which is attached to the motherboard.

    • And, there's your motherboard.

  23. 2fyvZZK5TBZEEUc5
    • Remove the four silver screws using a J000 screwdriver bit .

    • Four silver screws, all 1.5mm in length.

  24. TBnAY3siY612BXJk
    • There will be a fifth silver screw that is covered by a white sticker. Remove this screw using the J000 screw driver head.

    • One silver screw, 1.5mm in length.

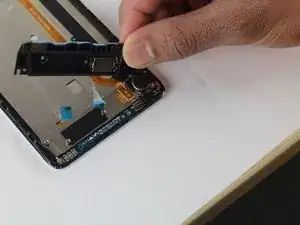

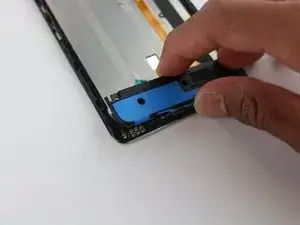

  25. c4DJttxY5ARwtUOY
    c4DJttxY5ARwtUOY
    kT5SZl3yQjBEbLxa
    • Lift the module where the speaker is located.

  26. A4QEQRFTZoMRglHU
    • After removing all the components you will be left with the screen, as provided by BLU.

    This is as far as it goes? How do you remove the screen?

    Brian Lamey -

    It doesnt stop there at all

    Alphonso Phillip -

Abschluss

To reassemble your device, follow these instructions in reverse order.
