BLU Energy X Rear Facing Camera Replacement

Geschrieben von: Sishun Wang
  • Kommentare: 0
BLU Energy X Rear Facing Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

The rear facing camera is located in the center of the top motherboard. To access the rear facing camera the the back of the phone will need to be opened and the top cover for the motherboard will need to be removed. The connection is a press fit.

  1. PglPkAlBusHxsFpM
    PglPkAlBusHxsFpM
    VwwJ3iPRoMQLh3VO
    OgrLxic3MceKHskE

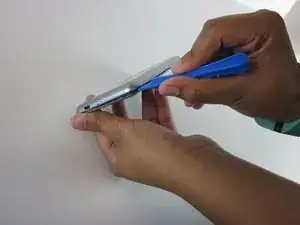

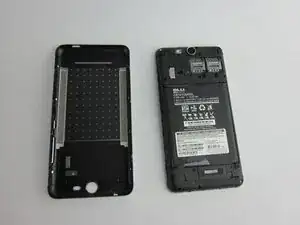

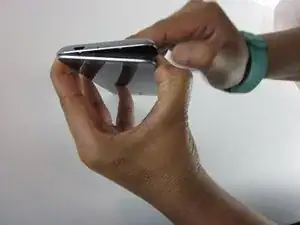

    • Pry open and remove back cover with plastic spudger.

  2. 1hMVmgBgEDdOcVsG
    1hMVmgBgEDdOcVsG
    54cQaJ2QZaVeNjLL

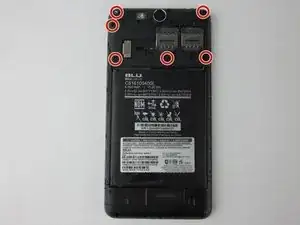

    • Remove the seven 4 mm Phillips #000 screws from top plate

    • Remove top plate

  3. bHOZVbYY3WI6HjME
    bHOZVbYY3WI6HjME
    ArDb4LjepuctERMN

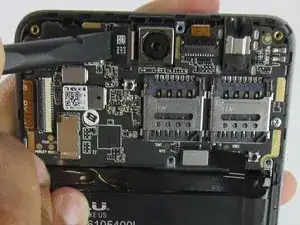

    • Use plastic spudger to disconnect the camera from the motherboard

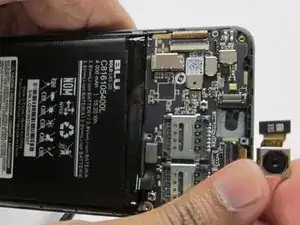

    • Remove camera

Abschluss

To reassemble your device, follow these instructions in reverse order.
