This guide will demonstrate the steps needed to remove and replace the front panel for the BLU Tank II. Removing the back panel is a step required to replace the outer screen and change color/customization of phone

  1. MDvcSNoM51136eGx
    MDvcSNoM51136eGx
    q5mQPXkqnQgjmFZw
    • With the screen facing you, find the left corner of the phone. There should be a visible groove.

    • With your fingers, carefully press a fingernail into the slot and separate the back panel from the phone.

  2. 31ajhRDsQKUArFqv
    • After the back panel has been removed, put your finger on and press down on the bottom part of the battery.

    • Lift the battery up and carefully remove the battery.

  3. 6Uoxb413FeHVTi5x
    6Uoxb413FeHVTi5x
    pZSyTSSraDcAH4XG

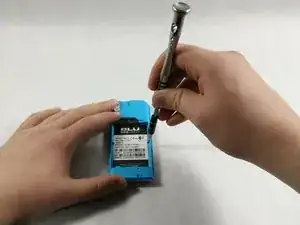

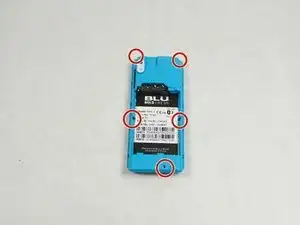

    • Using the phillips head screwdriver, remove all 5 2.5mm screws.

  4. yqw1khRulKCFTeGh

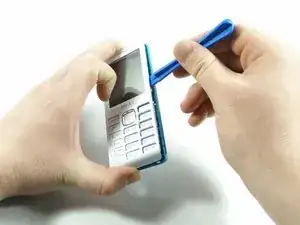

    • Wedge the blue plastic iFixit opening tool between the front plate and the outer lens plate.

    • Carefully separate the front plate from all sides of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
