Einleitung
Use this guide to replace muffled speaker/ sound issues.
Complete the prerequisite before starting.
For better sound make sure volume settings are turned to desired loudness.
Use this guide to also check for water damage before replacement.
-
-
Remove the 2 screws along the bottom on either side of the speaker port with the size 2 Pentalobe driver.
-
After screws are removed, dislodge the speaker and charger port cover from device using the tweezers.
-
-
-
Remove the top and bottom covers.
-
Start by sliding the pick around the edges of both covers. (If you have the glue adhesive removal tool use that instead of pick, as it creates less damage.)
-
After freeing the edges gentle start peeling the covers off.
-
-
-
Using a Phillips #000, remove all 10 screws found on the back of the phone.
-
The 6 on the bottom are to be removed with a size PH000 Phillips Head screwdriver.
-
The 4 on the top can be removed with the same screwdriver.
-
-
-
Completely remove SIM card port from side of phone using the SIM Card Eject Tool.
-
Release the back cover (it may be glued down encasing the phone) using the suction device to lift the back off.
-
Begin inserting the pick sliding it between the back of the phone and the cover to completely remove back cover, if suction does not lift.
-
-
-

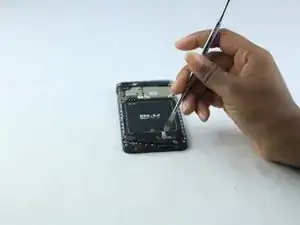

Slide the spudger between the speaker covers (might be held down with adhesive stickiness.)
-

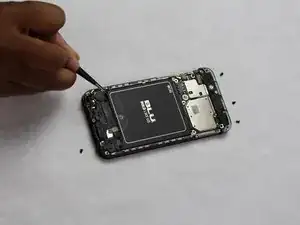

Use the PH000 screwdriver to remove any leftover screws near bottom of the device.
-
-
-
Gently slide the pick between the black sound motherboard (located under the battery.)
-

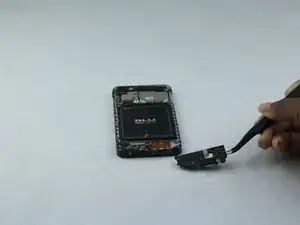

Use the tweezers to lift speaker motherboard out of device.
-
-
-
After checking for debris and water surrounding the speaker area, replace with new speaker.
-
To reassemble your device, follow these instructions in reverse order.
