BLU WIN HD LTE Battery Replacement

Geschrieben von: Taelar Tritton-Bowman
  • Kommentare: 2
BLU WIN HD LTE Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The battery is what powers the device. The battery is secured by a sticky adhesive label and glue so be cautious when removing.

  1. hBn4ScFQUnIt6OPO

    • Pry the back cover from the bottom of the phone, pulling outwards and upwards.

  2. 5Q5cGsEhaoIion3m

    • Fully remove the cover and set aside in a safe place.

  3. JUDup1U1AqPXwyTs

    • Remove all the nine 2mm screws using the JIS #00 Screwdriver.

  4. opjdQRnrKVVPDQvZ

    • Pry the frame off using the spudger pulling upwards going to different areas around the device.

    • The back cover is secured by glue. Removal could be more difficult than expected.

  5. WjeUekc1AdVGNRTR
    WjeUekc1AdVGNRTR
    fovhjcj5sGMYNvWr

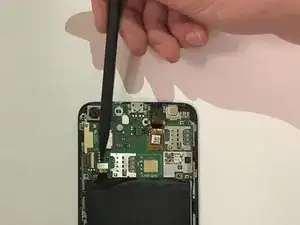

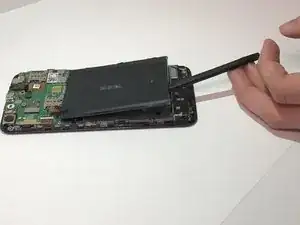

    • Remove the battery out using the black nylon spudger.

    • Battery is secured by glue so use more force to take it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
