BLU WIN HD LTE Speaker Replacement

Geschrieben von: Taelar Tritton-Bowman
  • Kommentare: 0
BLU WIN HD LTE Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 - 7 Minuten

Einleitung

The (0.7W) speaker may need to be repaired or replaced if it is not working properly.

  1. hBn4ScFQUnIt6OPO

    • Pry the back cover from the bottom of the phone, pulling outwards and upwards.

  2. 5Q5cGsEhaoIion3m

    • Fully remove the cover and set aside in a safe place.

  3. JUDup1U1AqPXwyTs

    • Remove all the nine 2mm screws using the JIS #00 Screwdriver.

  4. opjdQRnrKVVPDQvZ

    • Pry the frame off using the spudger pulling upwards going to different areas around the device.

    • The back cover is secured by glue. Removal could be more difficult than expected.

  5. ui1FE3JZDtZUfGIc
    ui1FE3JZDtZUfGIc
    ZZ6UHoeHjC3S6QiB
    JnHg6iF1jdeHMo3m

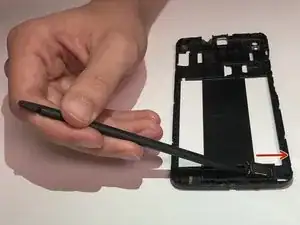

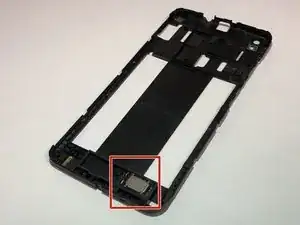

    • Use the spudger to pry out the speaker from the Frame Cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
