BMW 2003-2010 5 Series Tail Light Bulb Replacement

Geschrieben von: Christophe Chedid
  • Kommentare: 0
BMW 2003-2010 5 Series Tail Light Bulb Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide will help you replace a burnt out tail light on your 2003-2010 BMW 5 Series car. Neglecting regular car maintenance such as changing a tail light can cause many problems including a ticket or worst.

This is a quick and easy job that any one can do and you’ll save money too. Follow this step-by-step guide to change the tail light on your 2003-2010 BMW 5 Series.

  1. EeQ4WoxLIGnADXbO

    • Open the trunk of the car to access the tail lights.

    • Remove the two 5 mm screws holding the panel cover in place.

  2. j241n3EGljFEwlgR

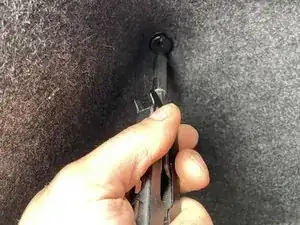

    • With a flathead screwdriver, turn the screws half a turn counterclockwise.

  3. SKepW6ECpBCWYyva

    • With plyers, remove the screws.

  4. kv5rsEwAAmBrsHsx
    kv5rsEwAAmBrsHsx
    lsqQZh3JtP3q1siC
    YSDsd3Wy1OGcOimd

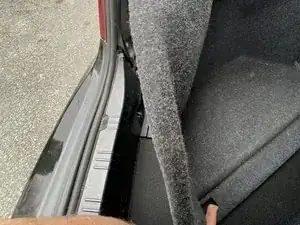

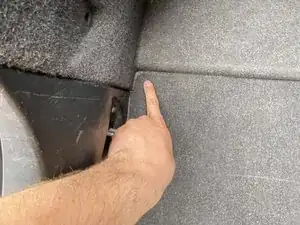

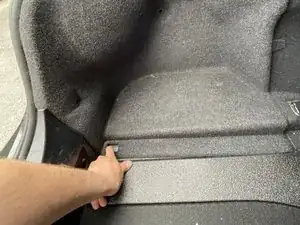

    • Pull up the trunk matt and remove it from the corner.

    • Pull up the panel by the tab.

    • The panel should lift right out.

  5. Qi5cjGcTNssRO5MY
    Qi5cjGcTNssRO5MY
    etZKZGweHShiptgC
    DYjQ1TVSyBuc2BQm

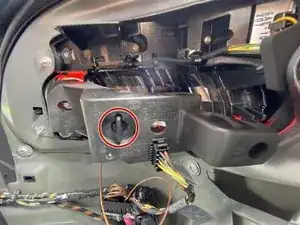

    • You will see the light bulb holster.

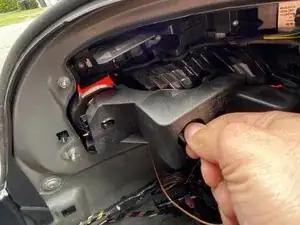

    • Turn the dial in the middle of of the black plastic light bulb holster.

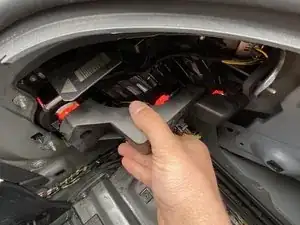

    • Pull the holster out of the trunk bay.

  6. WFxyYJRYKPHHYETY

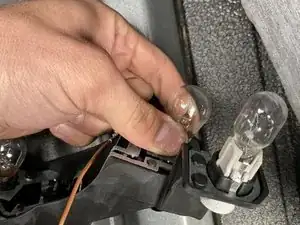

    • Grab the light bulb at the base and twist counterclockwise.

    • DO NOT TWIST THE BULB BY THE GLASS.

  7. aAZ6hg1eZVfpbe1M

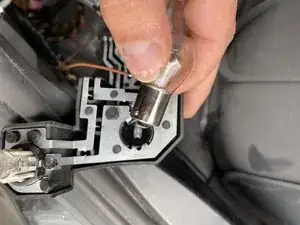

    • Pull out the bulb and repeat the process in reverse order with the new bulb to reassemble.

Abschluss

To reassemble, follow these instructions in reverse order.
