BMW F10 M5 LED Reverse Light Installation

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

Installing new LED backup lights are actually very easy. While this guide demonstrates it on a BMW F10 M5, you can use this as a guide to install any other LED reverse light since the concept is the same.

  1. TAWUxRi1M2hhDx6d

    • Gain access to the back of the trunk

    • Remove some clips that hold the trunk liner in place.

    • Tip: You don't have to remove all the clips, just enough so you have enough access.

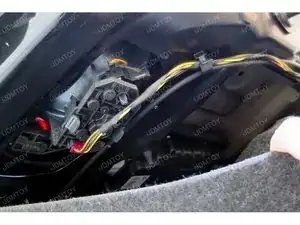

  2. dxadKCxVCLp5JpA4

    • Pull out the bulb tray.

    • Press the two clips on the side to release.

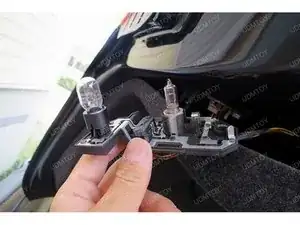

  3. HN6FJQmJURD4BMuH
    HN6FJQmJURD4BMuH
    VwUCSFOuqNESpv12

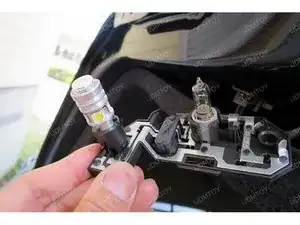

    • Remove the bulb and swap it out with the new LED bulb.

  4. GnDlLNBlTLAjJkQk
    GnDlLNBlTLAjJkQk
    vxOtHbWwQoGWyTE3

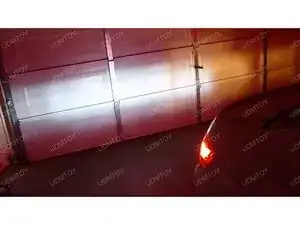

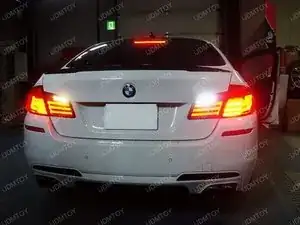

    • Test to see if the LED reverse lights work and enjoy.

    Do you have any idea how to reset the “ Reverse Lamp Malfunction”. I changed mine per this page even with the bulbs that are linked. The bulbs work great! But I always get the error and chime!

    Jasonwoodward36@gmail.com -

Abschluss

Installation will take absolutely no time at all and you will be on your way to some new LED reverse lights.
