BOSE SoundTouch 30 Display Assembly Replacement

Geschrieben von: Brennen Irey
  • Kommentare: 3
BOSE SoundTouch 30 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

The display should be replaced in the event that it gets damaged beyond reasonable repair. Removing the display requires some caution due to the fragile nature of the ribbon connector.

  1. DUthEnueMWXiaSKb
    DUthEnueMWXiaSKb
    Z6CVPKvJWGWhYkT5

    • Remove the four 15.5 mm PH2 screws securing the base plate to the device.

  2. KaXkNpQMVtXpu6Jq

    • Remove the three 15.5mm PH2 screws holding the front-mesh grille in place.

  3. tm4x1qWwV6OvOpYe

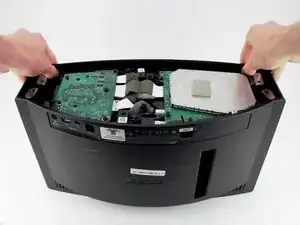

    • Remove the grille by gripping the edges and pulling upwards.

    • There is a small ribbon cable that connects the display assembly to the body of the device. Make sure to disconnect the cable before pulling the grille all the way off or else the cable could snap.

    What happens if you do snap the ribbon cable? Where and how can you find a replacement for it?

    Tria Green -

  4. aRITaQPQHaPGftSu
    aRITaQPQHaPGftSu
    6pMGc5RjEErD5iNO

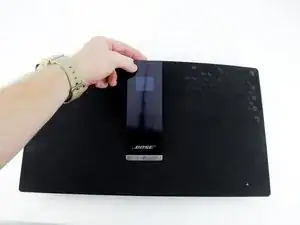

    • Remove the six 8.9mm T9 torx screws holding the display assembly down.

    • The display assembly can now be lifted out of the grille so that a new one can be put in.

    How can I order this display assebly part

    mjeannette772 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
