BOSE SoundTouch 30 Subwoofer Replacement

Geschrieben von: Brennen Irey
  • Kommentare: 6
BOSE SoundTouch 30 Subwoofer Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

This guide goes over the steps needed to remove the subwoofer from the device.

  1. DUthEnueMWXiaSKb
    DUthEnueMWXiaSKb
    Z6CVPKvJWGWhYkT5

    • Remove the four 15.5 mm PH2 screws securing the base plate to the device.

  2. cHg1kR2TIau6cakU

    • Remove the six 15.5mm PH2 screws securing the grille and rear panel to the device.

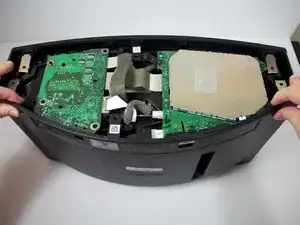

  3. WNoWIXJiwAA3ULb4
    WNoWIXJiwAA3ULb4
    v1P1jJxwqiQOwwsY

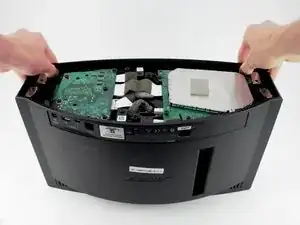

    • Remove the grille and rear panel by grabbing the corners and pulling upwards and outwards.

    • There is a small ribbon cable that connects the display assembly to the body of the device. Make sure to disconnect the cable before pulling the grille all the way off or else the cable could snap.

    Is there any way to replace or repair the display ribbon cable? I snapped it and now I have no display.

    Carol Rigdon -

  4. mvVVHndWWmCfiQjW

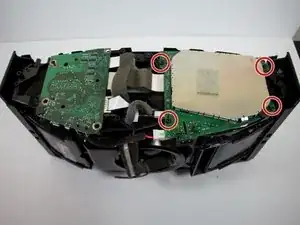

    • Remove all four 15.5 mm PH2 screws holding the power supply down.

    • The power supply is identified by a green board with a large metal covering.

    I can buy the parts with you guys.

    Jaime Ojeda -

  5. Lbv4cG6bHrgVdiAV
    Lbv4cG6bHrgVdiAV
    rScv1OFUYqNMopTA

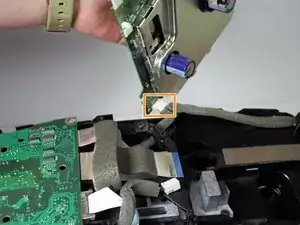

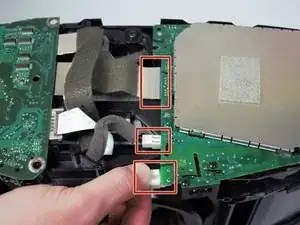

    • Disconnect the three cables from the power supply by squeezing the white tabs if present and gently pulling.

    • Pick up the power supply and remove the fourth cable from the underside of the power supply.

    • Remove the power supply.

  6. lFSUcrL3ZSGPdeto
    lFSUcrL3ZSGPdeto
    56W2fexDlXQRlNgY
    hSRSrVmyHuNDPkZB

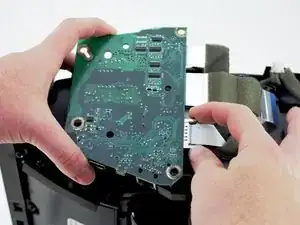

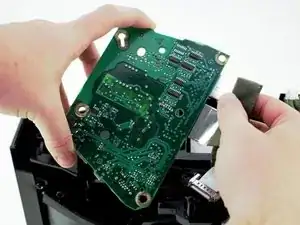

    • Remove the five 15.5 mm PH2 screws holding the motherboard down.

    • Remove the three cables from the side of the motherboard by squeezing the grey tabs if present and gently pulling.

    • Remove the motherboard.

    • The motherboard is identified as the smaller green board with an ethernet, USB Type A, and an auxiliary port.

    hello there,

    I need a replacement of my motherboard, where can I buy this item?

    Thank you..

    edgar -

  7. klXO1bgbPAPlQjFb

    • Remove the eight 15.5 mm PH2 screws holding the plastic insert down.

    • Remove the plastic insert.

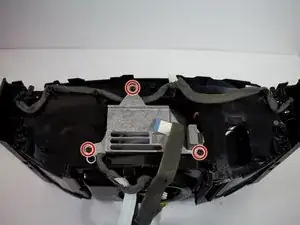

  8. pGvssYWEOXVEsRwn

    • Remove the three 15.5 mm PH2 screws holding the metal insert down.

    • Remove the metal insert.

  9. UGjFHaVGBlJywqMX

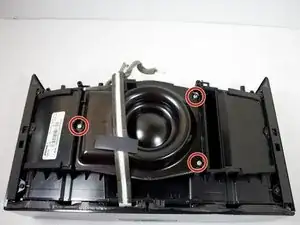

    • Remove the three 19 mm PH2 screws holding the metal subwoofer cover down.

    • Remove the subwoofer cover.

  10. UfgOgduhIOGWukXa

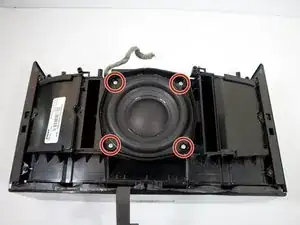

    • Remove the four 19 mm PH2 screws holding the subwoofer in place.

    • Be careful not to let the screwdriver slip and damage the fragile subwoofer.

  11. GFkXF25GKuSKOUl3
    GFkXF25GKuSKOUl3
    cUorVQDFgkquGtbK

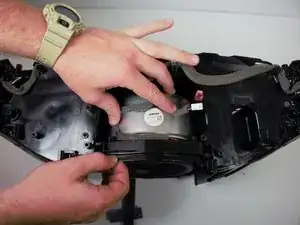

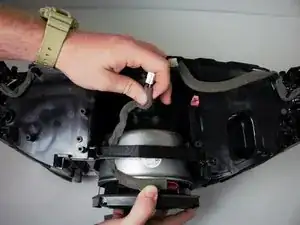

    • Remove the subwoofer by pulling towards the back of the device while tucking the wire under the plastic enclosure.

    Hi, any idea where to find the woofer a spare part? any reference number? any compatible woofer to replace with? Many thanks

    Fard -

    I am getting Error Code 0000 which suggests that subwoofer is faulty. I need to buy one for my Soundtouch 30. Thank you for your help

    Fard -

    Ned a woffer spare if any 1 can help whit a replacement will be much help or someting similar in the specs

    Lazar Florian -

Abschluss

To reassemble your device, follow these instructions in reverse order.
